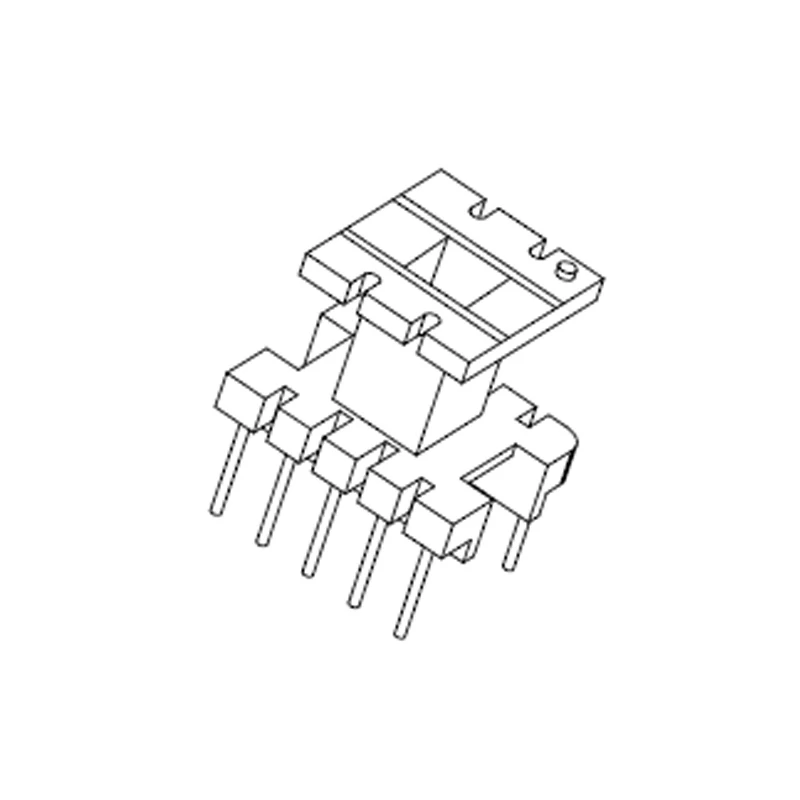

Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0

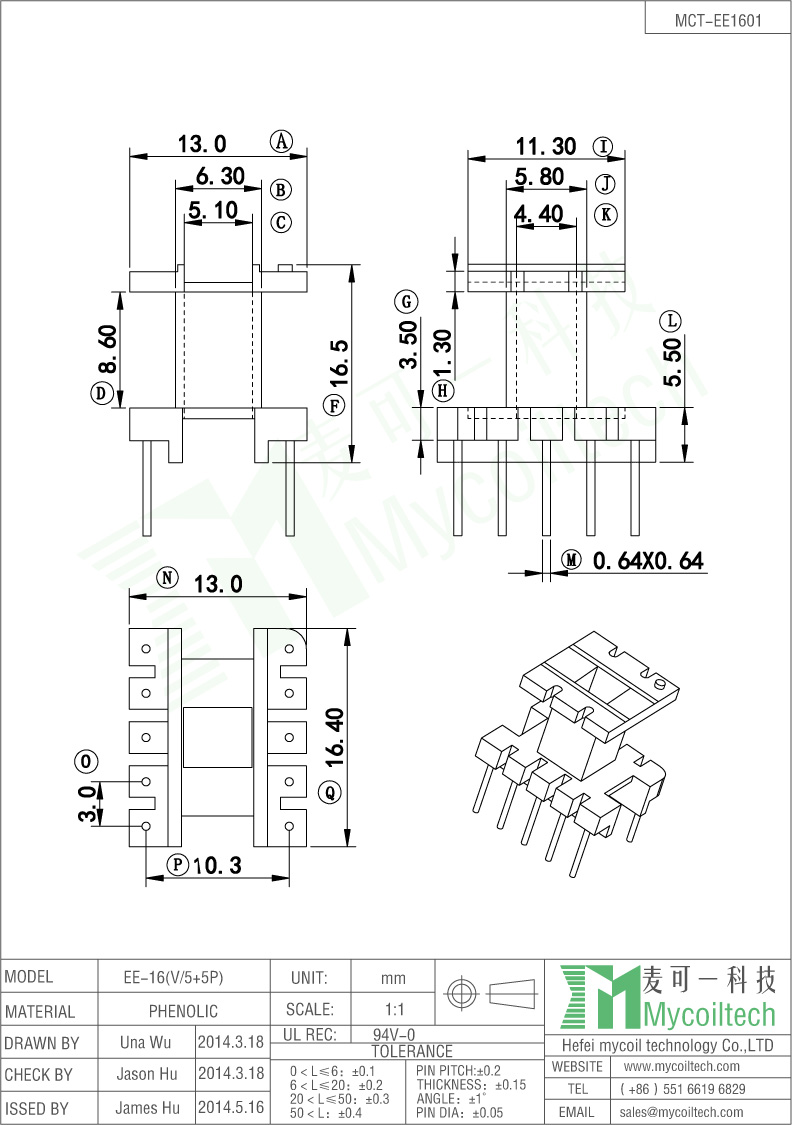

Pin pitch=3mm, Parallel Distance=10.3mm

Size=16.4mmX13mmX16.5mm



We are professional electronic components manufacture which is one of the largest components enterprises in AnHui, we tries our best to do well at any aspect from the material to the Shipping.



Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EE1601(V5+5P)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name: Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5



Product Specification

Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins.
