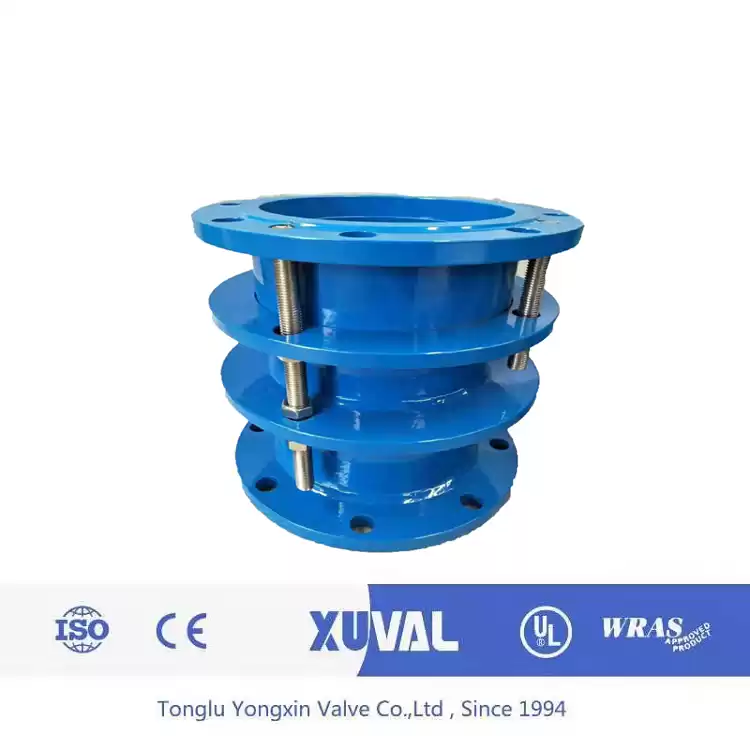

VSSJA-2(B2F) Double Flange Limited Expansion Joint

The double flange limit expansion joint is composed of main parts such as body, sealing ring, gland and extension shortening pipe.On the basis of the original performance of the loose sleeve expansion joint, a limit device was added, and the maximum expansion was locked with a double nut.The pipe can expand and contract freely in the allowed expansion and contraction quantity, once exceeds its maximum expansion and contraction quantity, plays the limit position, ensures the safe operation of the pipe, especially suitable for the connection of the pipe with vibration or certain inclination and turning.




VSSJA-2(B2F) Double Flange Limited Expansion Joint

The double flange limit expansion joint is composed of main parts such as body, sealing ring, gland and extension shortening pipe.On the basis of the original performance of the loose sleeve expansion joint, a limit device was added, and the maximum expansion was locked with a double nut.The pipe can expand and contract freely in the allowed expansion and contraction quantity, once exceeds its maximum expansion and contraction quantity, plays the limit position, ensures the safe operation of the pipe, especially suitable for the connection of the pipe with vibration or certain inclination and turning.


Double flange limit expansion jointis suitable for connecting with flange on both sides. During installation,adjust the connecting length between both ends of the product and flange, tighten the gland bolt in turn and adjust the limit nut in turn. In this way, the pipe can expand and contract freely within the expansion range and lock the expansion amount to ensure the safe operation of the pipe.It is suitable for the pipe connected with flange on both sides. During installation, adjust the installation length of both ends of the product and the flange, and tighten the gland bolt evenly diagonally to make it a whole with certain displacement. It is convenient for installation and maintenance and adjust the size according to the field.Anti-axial thrust can be transmitted to the whole pipeline during operation.It can reduce the pressure thrust of the connected part (blind plate force) and compensate the installation error of the pipeline. The double flange force transfer joint cannot absorb the axial displacement.Double flange transmission is mainly used for pump, valve and other accessories loose sleeve connection.


BF(VSSJA-1) type single-flange limit expansion joint, B2F(VSSJA-2) type double-flange limit expansion joint, BY(SSJB-3) type gland limit expansion joint, AY(SSJB) type gland limit expansion joint, flange limit expansion joint, flange loose sleeve expansion joint.


No. Name Quantity Material
1 Body 1 QT400-15,Q235A,ZG230-450,20
2 Gasket 1 NBR
3 Gland 1 QT400-15,Q235A,ZG230-450,20
4 Limited short pipe 1 Q234A,20,16Mn
5 Nut 4n Q235A,20,1Cr18Ni9Ti
6 Long bolt n Q235A,35,1Cr18Ni9Ti
7 Bolt n Q235A,35,1Cr18Ni9Ti






Main data:

DN
Dw
Length

Compensation

△ L

Flange connecting dimension
L L1 0.6Mpa
1.0Mpa


D D1 n-do D D1 n-do
65 76 340 105 50 160 130 4-φ14 185 145 4-φ18
80 89 190 150 4-φ18
200 160 8-φ18
100
108 210 170 220 180
114
125
133 340 105 50 240 200 4-φ18
250 210 8-φ18
140
150
159 265 225 8-φ18
285 240 8-φ22
168
200 219 320 280 340 295
250 273 375 335 12-φ18
395 350 12-φ22
300 325 370 130 65 440 395 12-φ22
445 400
350 377 490 445 505 460 16-φ22
400 426 540 495 16-φ22
565 515 16-φ26
450 480 595 550 615 565 20-φ26
500 530 645 600 20-φ22
670 620
600 630 755 705 20-φ26
780 725 30-φ30
700 720 860 810 24-φ26
895 840 24-φ30
800 820 600
220
130
975 920 24-φ30
1015 950 24-φ33
900 920 107 1020 1115 1050 28-φ33
1000 1020 117 1120 28-φ30
1230 1160 28-φ36
1200 1220 140 1340 32-φ33
1455 1380 32-φ40
1400 1420 640
163 1560 36-φ36
1675 1590 36-φ42
1500 1520 173 1660 - - -
1600 1620 183 1760 40-φ36
1915 1820 40-φ48
1800 1820 204 1970 44-φ40
2115 2020 44-φ48
2000 2020 226 2180 48-φ42
2325 2230 48-φ48
2200 2220 247 2390 52-φ42
2550 2440 52-φ56
2400 2420 268 2600 56-φ42
2760 2650 56-φ56
2600 2620 710
220
140
290 2810 60-φ48
2960 2850 60-φ56
2800 2820 311 3020 64-φ48
3180 3070 64-φ56
3000 3020 331 3220 68-φ48
3405 3290 68-φ60
3200 3220 352 3430 72-φ48
- - -
3400 3420 373 3640 76-φ48
- - -
3600 3620 397 3860 80-φ56
- - -



Packing & Delivery :

Packing Details : all by seaworthy plywood case and packed strongly by  packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough

subject to the order quantity. But anyway,normally, we are able to make sure the delivery will not exceed 45 days.
