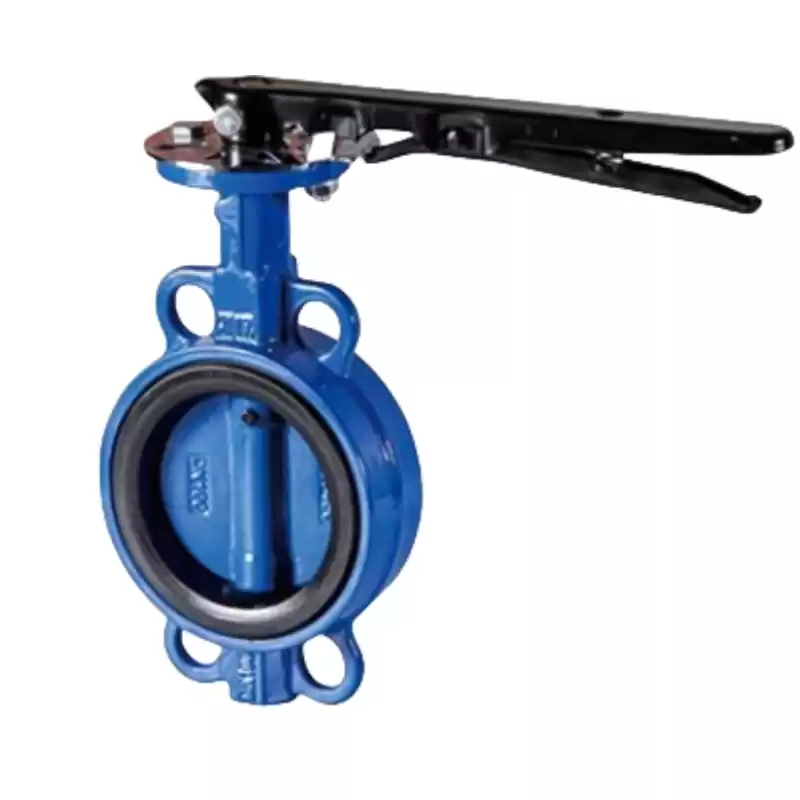

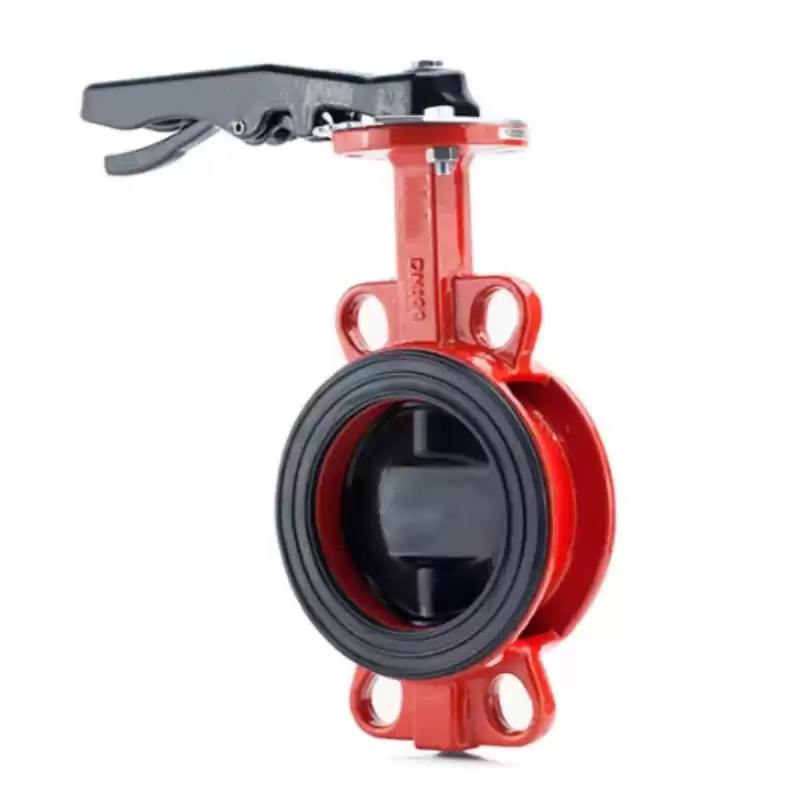

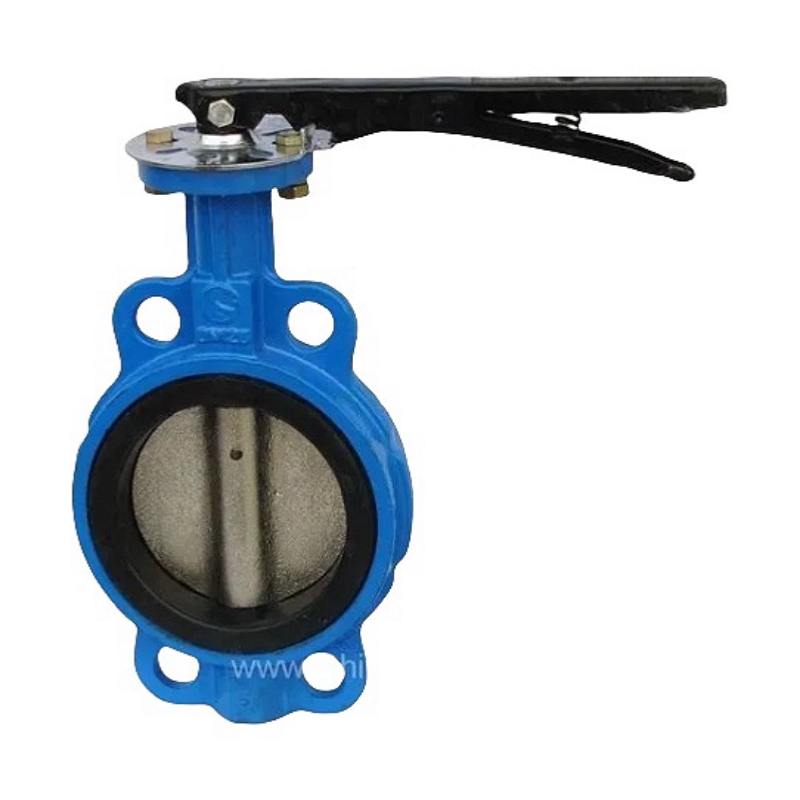

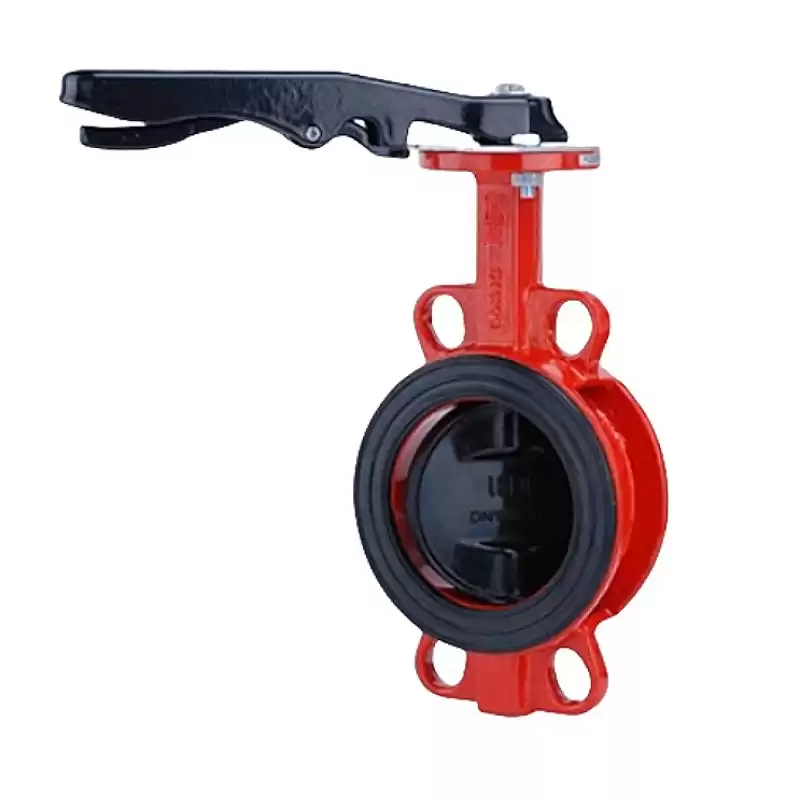

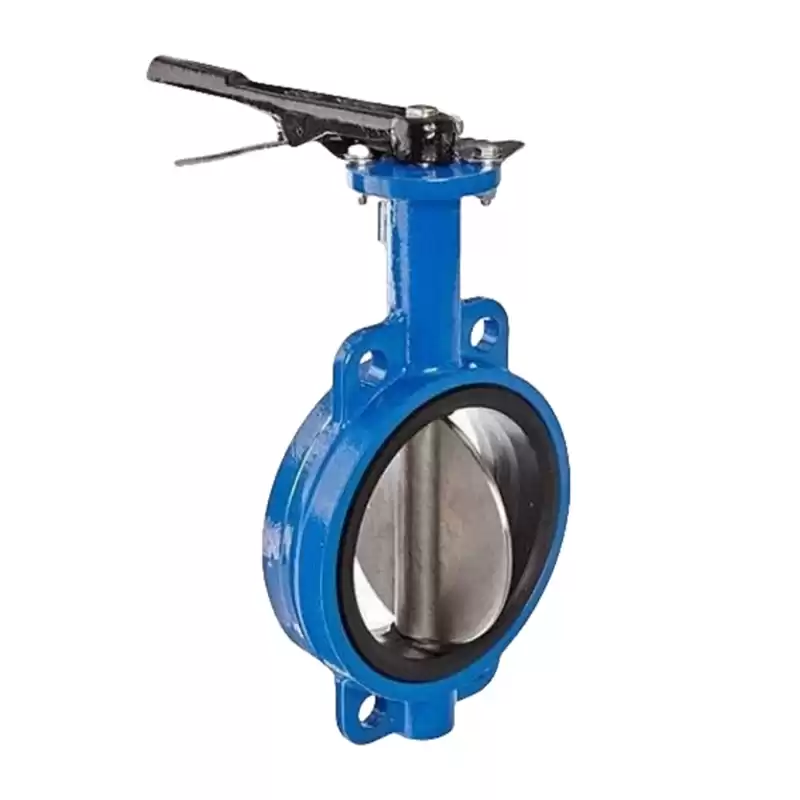

Wafer Butterfly Valve with Lever Handle

The wafer-type butterfly valve is a type of valve in which the opening and closing part is a disc-shaped butterfly plate that can rotate around the inner axis of the valve body.



Product Description

The wafer-type handle butterfly valve is a universal valve with the core advantages of economy, portability and ease of operation. It is an ideal choice for rapid opening and closing operations in low-pressure, normal-temperature fluid systems.

The wafer-type handle butterfly valve is a basic valve that achieves the opening and closing of pipeline fluid and flow control by rotating the handle directly to drive the Disc to rotate 90°. Its core features lie in the wafer structure and manual lever operation, which make it perform well in situations that require frequent and rapid operation.

Features

 • The structure is simple and compact, small and lightweight, and convenient for transportation, installation and disassembly.

 • 90° opening and closing, quick switching, small operating torque, labor-saving and lightweight.

 • It has good sealing performance and a long service life

 • The butterfly plate opens and closes flexibly without any jamming or jumping, and has a small torque

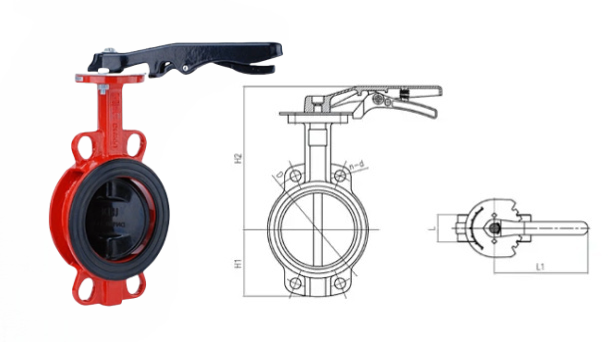

Product Parameter

Material Body Ductile Iron
Sealing Ring、O Ring Rubber
Butterfly Rod Ductile Iron、Stainless Steel
Stem Stainless Steel
Size DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250-DN300
Norminal Pressure PN10、PN16
Testing Pressure 4.8 Mpa
Medium Temperature -10℃~80℃
Applicable Medium Fresh water etc

FAQ

Q:What’s the MOQ for your lever handle butterfly valve ?

A:For standard sizes, our MOQ is usually 10 units. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.


Q:Can OEM services be provided? For example, putting on our brand Logo?

A:Of course! As a factory, we warmly welcome OEM/ODM cooperation.


Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.


Q:What is the delivery time?

A:The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.


Q:Why choose us?

A:With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
