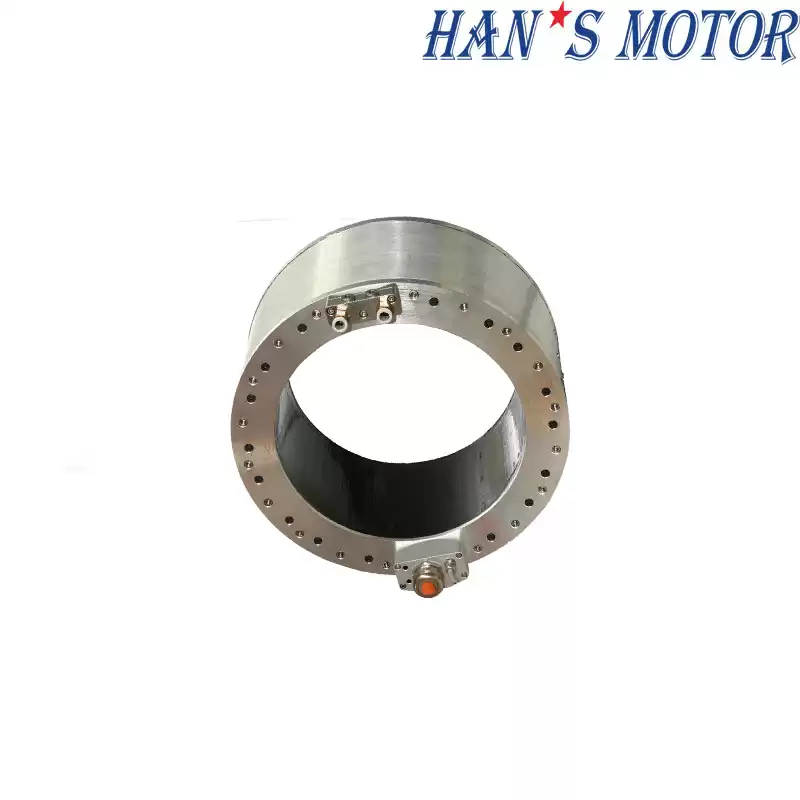

Products Name: High Torque Frameless Inner Rotor Torque Motor BI
Series
Product Specifications
|
Torque Motor BI16
Series Specification
|
|
Motor
Model No.：BI16-xxx-S-A-0-W
|
|
|
003-S-A-0
|
|
Performance
Parameters
|
Symbol
|
Unit
|
|
|
Pole
pairs
|
p
|
—
|
11
|
|
Max.Working
Bus Voltage
|
Vdc
|
V
|
310
|
|
Peak
torque
|
Tp
|
Nm
|
90
|
|
Continuous
torque (Water cooling)
|
Tcw
|
Nm
|
30
|
|
Continuous
torque (Natural cooling)
|
Tc
|
Nm
|
24.6
|
|
Peak
Current
|
Ip
|
Arms
|
9.0
|
|
Continuous current
(Water cooling)
|
Icw
|
Arms
|
2.7
|
|
Continuous current
((Natural cooling)
|
Ic
|
Arms
|
2.2
|
|
Torque
Constant
|
Kt
|
Nm/Arms
|
11.2
|
|
Back EMF Constant
|
Ke
|
Vrms/rad/s
|
4.05
|
|
Back EMF
Constant
|
Ke
|
Vrms/(1000r/min)
|
731
|
|
Line
Resistance
|
R
|
Ω
|
16.8
|
|
Line
Inductance
|
L
|
mH
|
40.2
|
|
Max.speed,Tcw
|
Nmax,Tcw
|
rpm
|
200
|
|
Max.speed,Tc
|
Nmax,Tc
|
rpm
|
180
|
|
Max.speed,Tp
|
Nmax,Tp
|
rpm
|
50
|
|
Max.speed,0
|
Nmax
|
rpm
|
300
|
|
Power consumption,
output Tcw
|
Plw
|
W
|
184
|
|
Power
consumption, output Tc
|
Plc
|
W
|
122
|
|
Motor
constant
|
Km
|
Nm/√W
|
2.2
|
|
Cooling
water flow
|
dV/dt
|
L/min
|
4
|
|
Cooling
water temperature difference setting
|
△θ
|
k
|
5
|
|
Rated
winding temperature
|
θ
|
℃
|
120
|
|
Motor
Mass
|
Ms
|
Kg
|
3.58
|
|
Rotor
Mass
|
Mr
|
Kg
|
1.37
|
|
Rotor
Moment of Inertia
|
Jm
|
Kg*m2
|
0.0050
|
|
Cable
length (Can be extended optional)
|
L
|
M
|
0.5
|
|
Cable
Minimum bending radius
|
R
|
mm
|
37.5
|

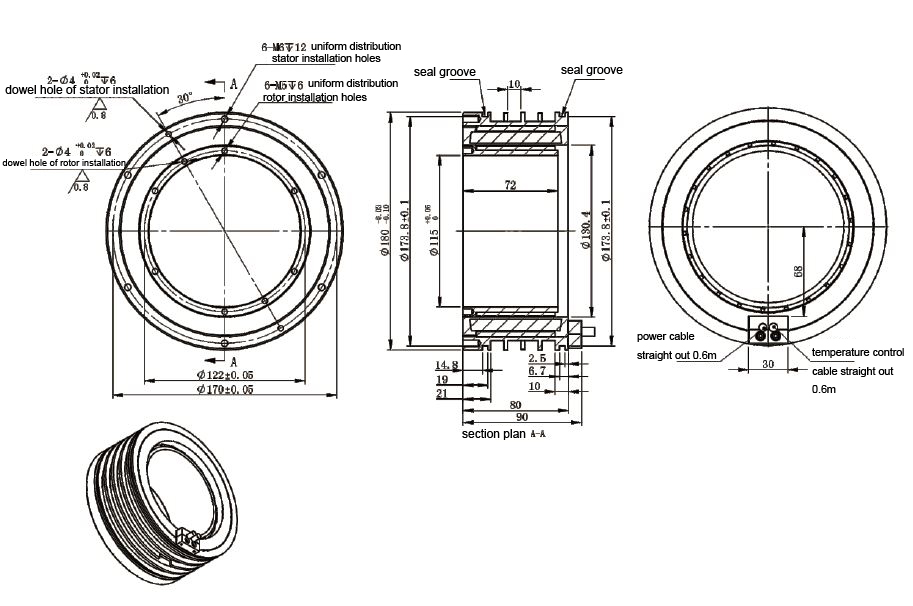

Dimension
|
Model
|
Center Hole(mm)
|
Outer Diameter
|
Height/mm
|
Spec.
|
Continuous torque/Nm
|
Peak torque/Nm
|
|
BI16
(water cooling)
|
115
|
180
|
90
|
BI16-003
|
30
|
90
|
Characteristics:
Design.: Leading design technology
Drive: Standard integrated built-in driver
Customized: Professional customized services
Quality: High quality and reliable guarantee
