Application

The apparatus is used to measure the amount of water vapour released by a material at a

specified time through its structure. This test is mainly applicable to leather and fabric

materials used in shoes and fabrics, and can measure the ability of these materials to

absorb the wearer's skin surface perspiration.

Principle

H057A Water Vapour Permeability Tester has six separate test stands on a rotating disk, each

with a sample stand. The silica gel desiccant is placed in the sample holder, the test material

is placed behind the sample holder and fixed with a screw cover. After weighing each sample

holder, fill it with silica gel and sample material, and place and lock the sample holder in the

rotating structure.

After 7-8 hours, the entire sample frame was weighed again, and the increased amount

indicated the water vapor permeability. The whole operation must at 20 ℃ and 65% relative

humidity of the air conditioning environment, it is very critical.

In addition, standard equipment, including a built-in timer, should be provided with the

H057A instrument to record the time of the test.

Features

Working Position Variety

Available with 6 or 8 testing positions according to clients’ demands.

Standard Device

Comply with SATRA TM172, EN ISO 20344, BS 3144, IUP 15, SLP 25, DIN 53333

Friendly design

Beautiful stoving varnish and color matching to display in your laboratory.

Accurate Time Recorder

Built-in timer provided to record the time of the test.

Standard

EN ISO 20344, EN 344-1, DIN 5333, SATRA TM172

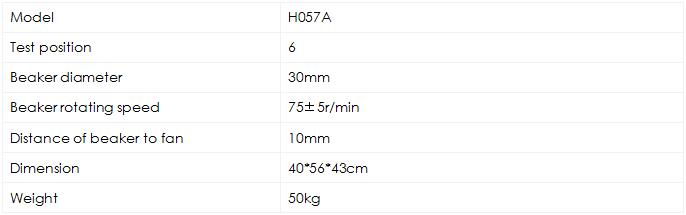

Key Specification
