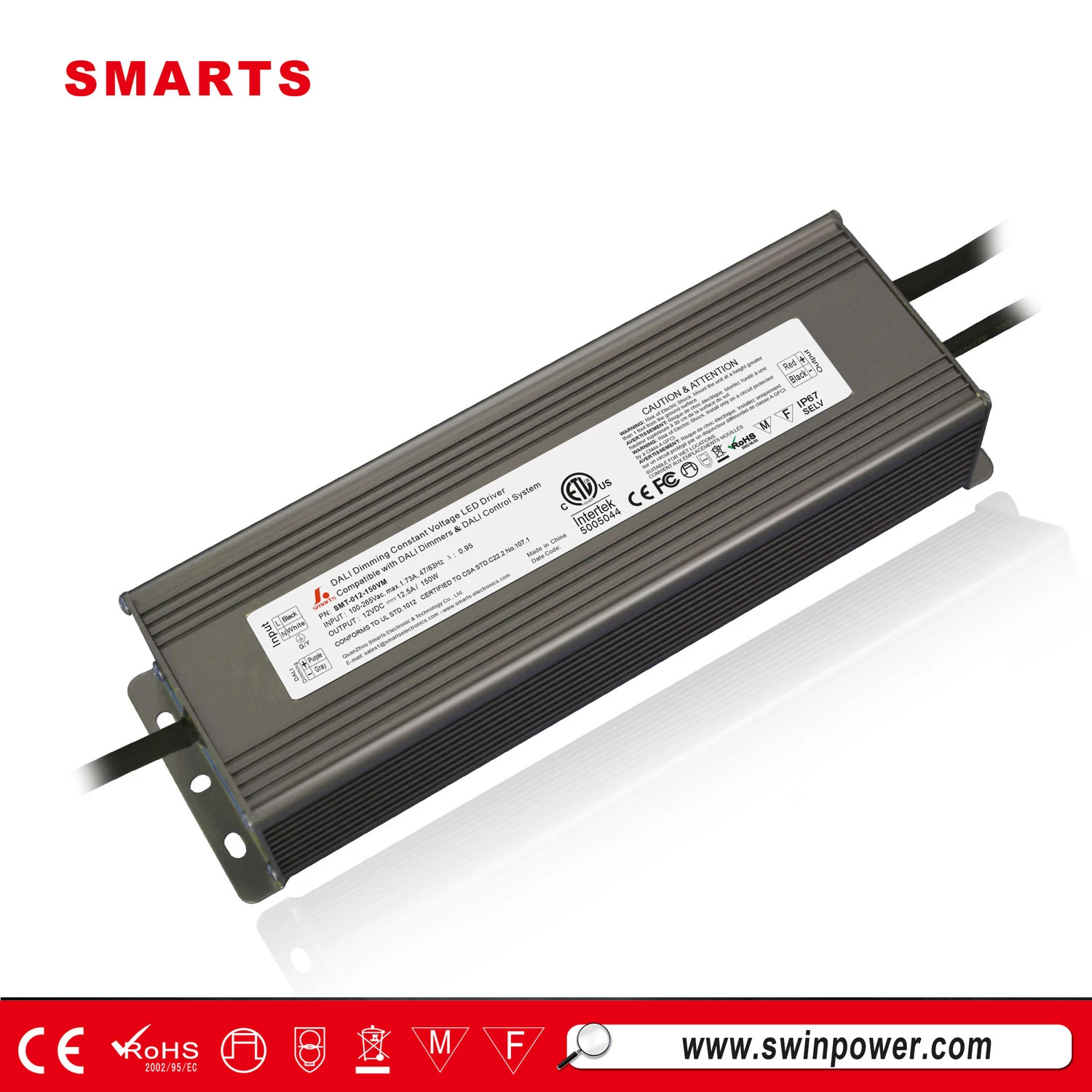

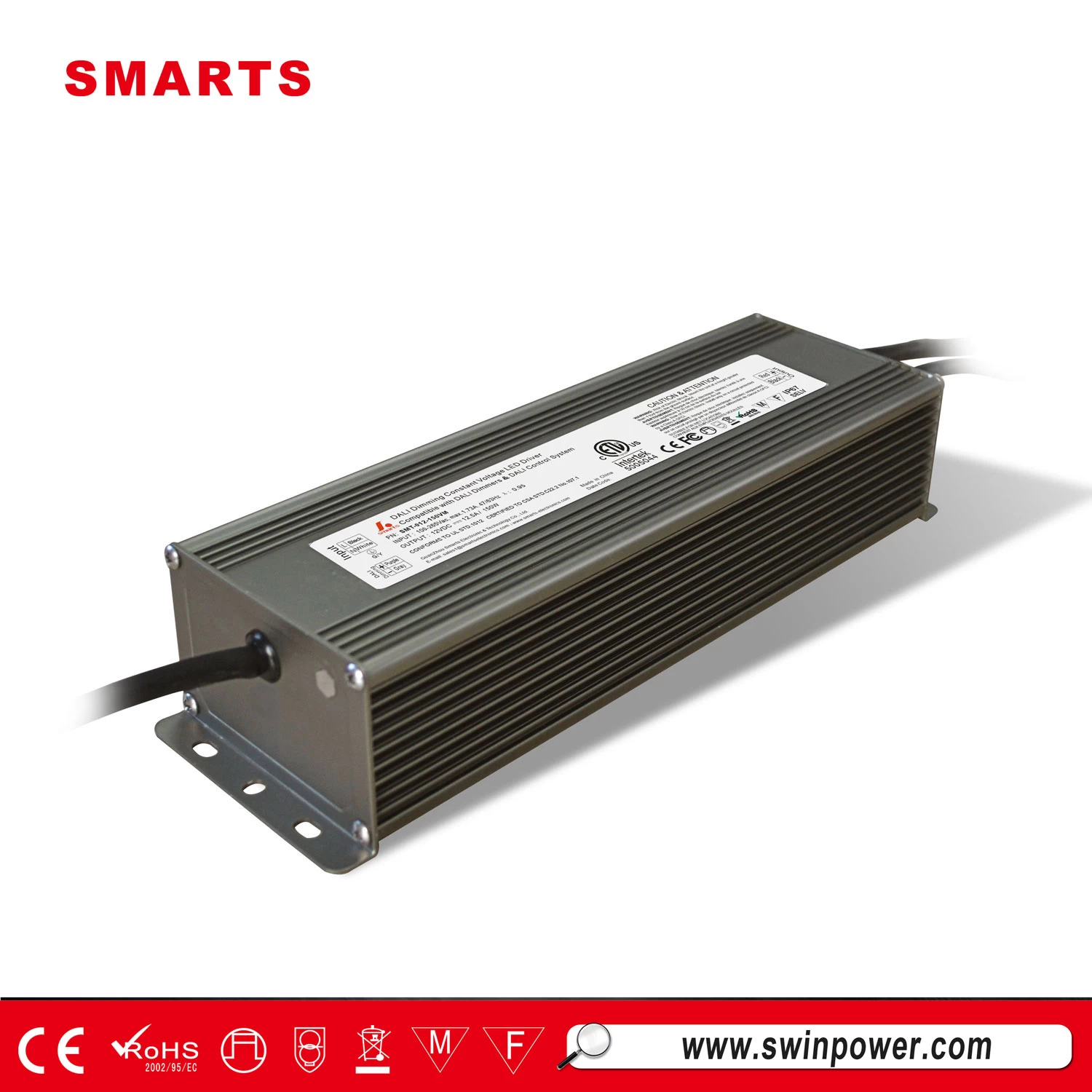

waterproof 12vdc 150 watt constant voltage dali led drivers
Features
·Output constant Voltage
·Range: 100-130VAC/170-265VAC
·Built-in active PFC function, PF>0.90
·Working Efficiency >88%
·Protections: short circuit/over load/ over current/ over temperature
·Cooling by free air convection
·IP67 design for indoor and outdoor installation .
·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
·Dimming range from 0.1% to 100%
·3 years warranty
·Suitable for intelligent LED lighting
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Specification
|
Model
|
SMT-012-150VM
|
SMT-024-150VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0 - 12.5A
|
0 - 6.25A
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100-130VAC/170-265VAC
|
|
Frequency Range
|
47 - 63HZ
|
|
Power Factor
|
PF≧0.90/120VAC PF≧0.90/230VAC PF≧0.90/265VAC（Full loading）
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Max.)
|
1.72A
|
0.86A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
≤120%
|
|
Over Circuit
|
≤1.2*Iout
|
|
Protection Class:
|
Ⅰ
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40 - +60℃
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃，10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0 - 50℃）
|
|
Vibration
|
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015,EN61000-3-2 (≥60%load)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
|
|
Others
|
Weight
|
1.6Kg
|
|
Size
|
256*78*47mm（L*W*H）
|
|
packing
|
305*295*210mm/10pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

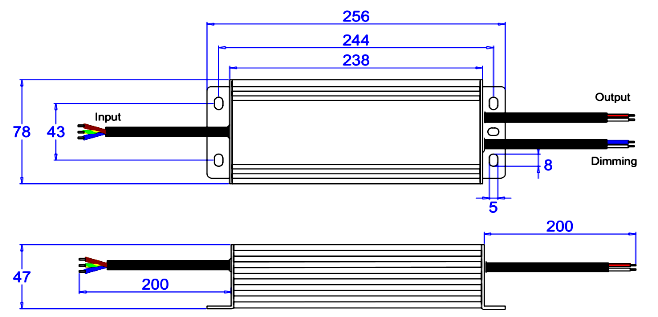

Mechanical Specification
Input Rubber cable H05RN-F 3G 1.0mm²,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
Signal Rubber cable H05RN-F 2*0.75mm²,Blue and White is DA1, DA2 (No polar). Connected to the BUS of the DALI Master.
Output rubber cable :1 group of H05RN-F 2*1.5mm² for SMT-012-150VM; 2 group of 2*1.5mm² for SMT-012-150VM, Red is output ( V+) Positive,Black is output (V-) negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

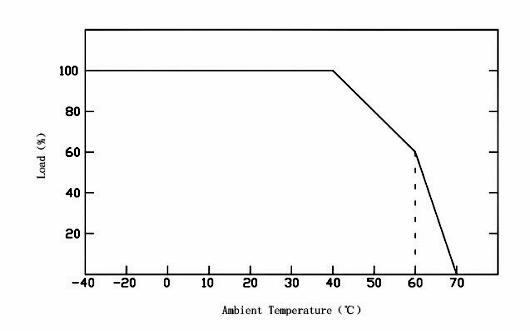

Derating Curve
l To extend their life, please refer to the Derating Curve and derate according to the temperature.
