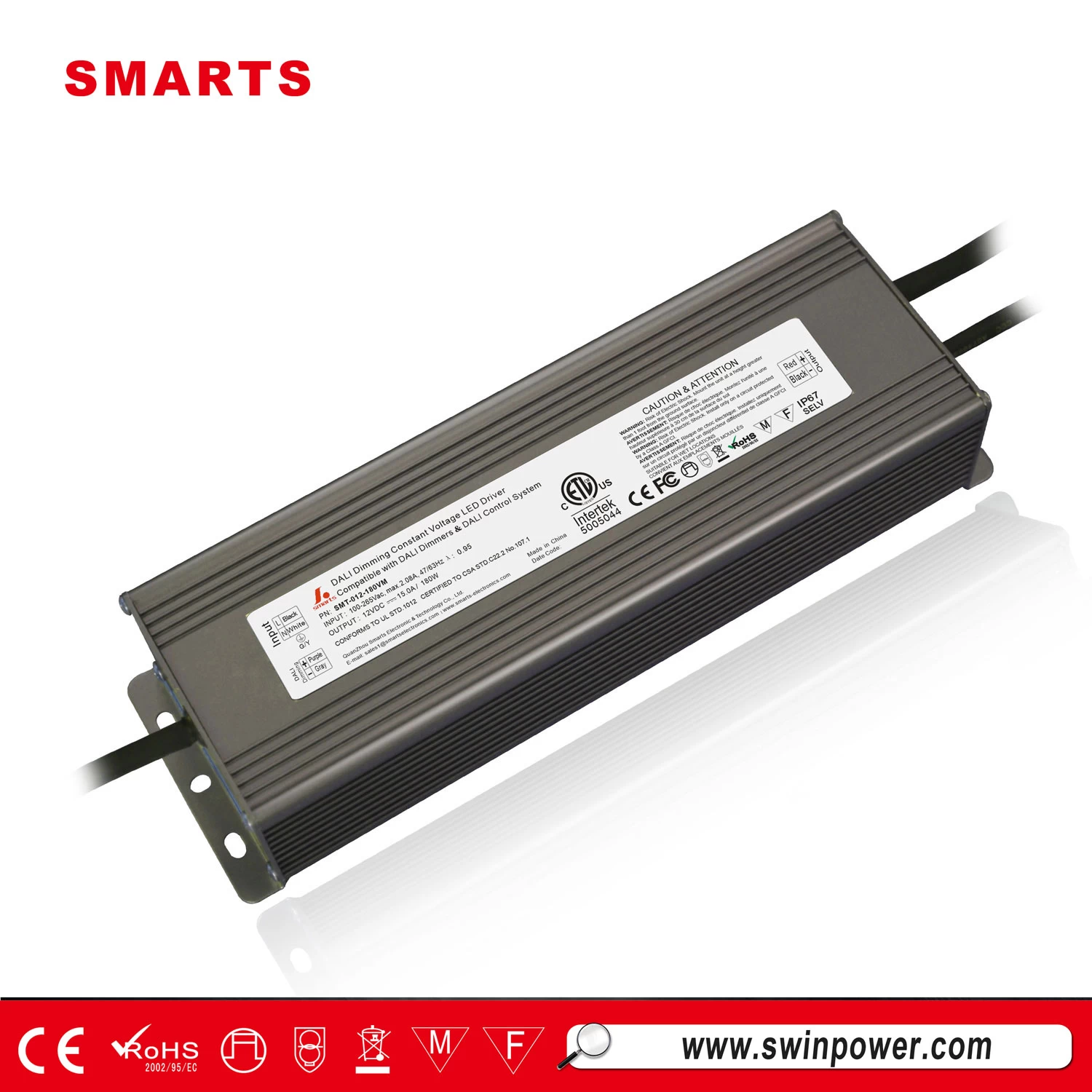

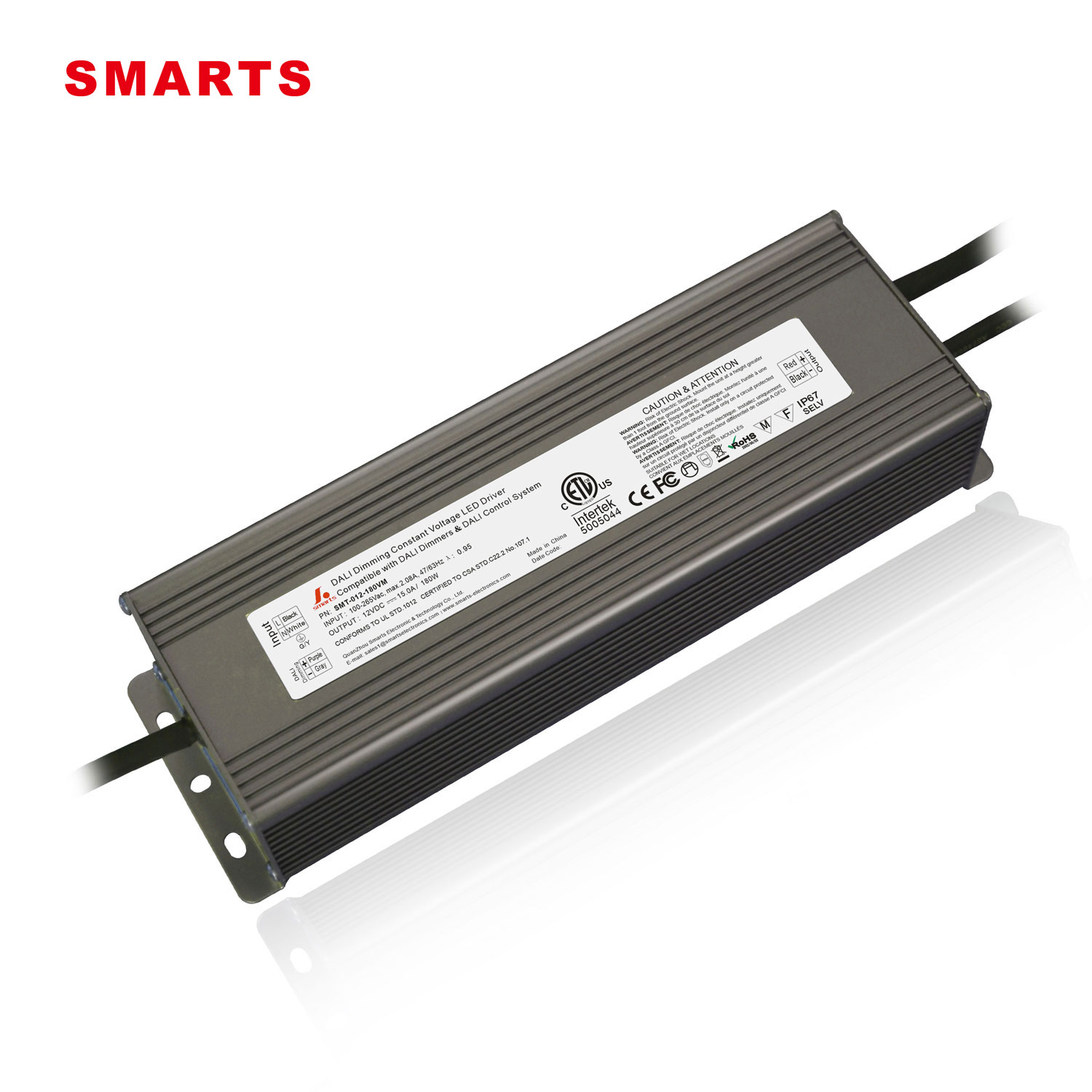

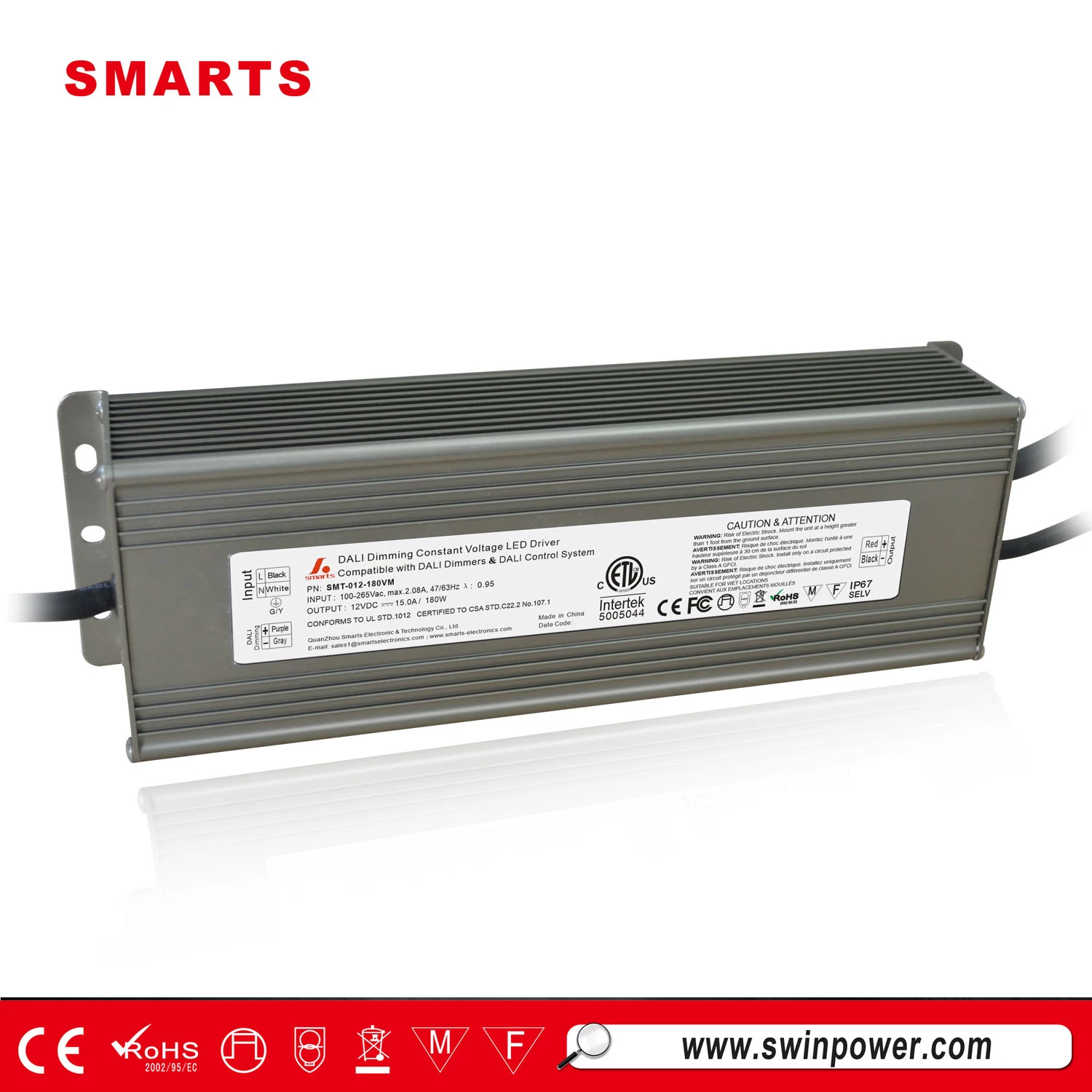

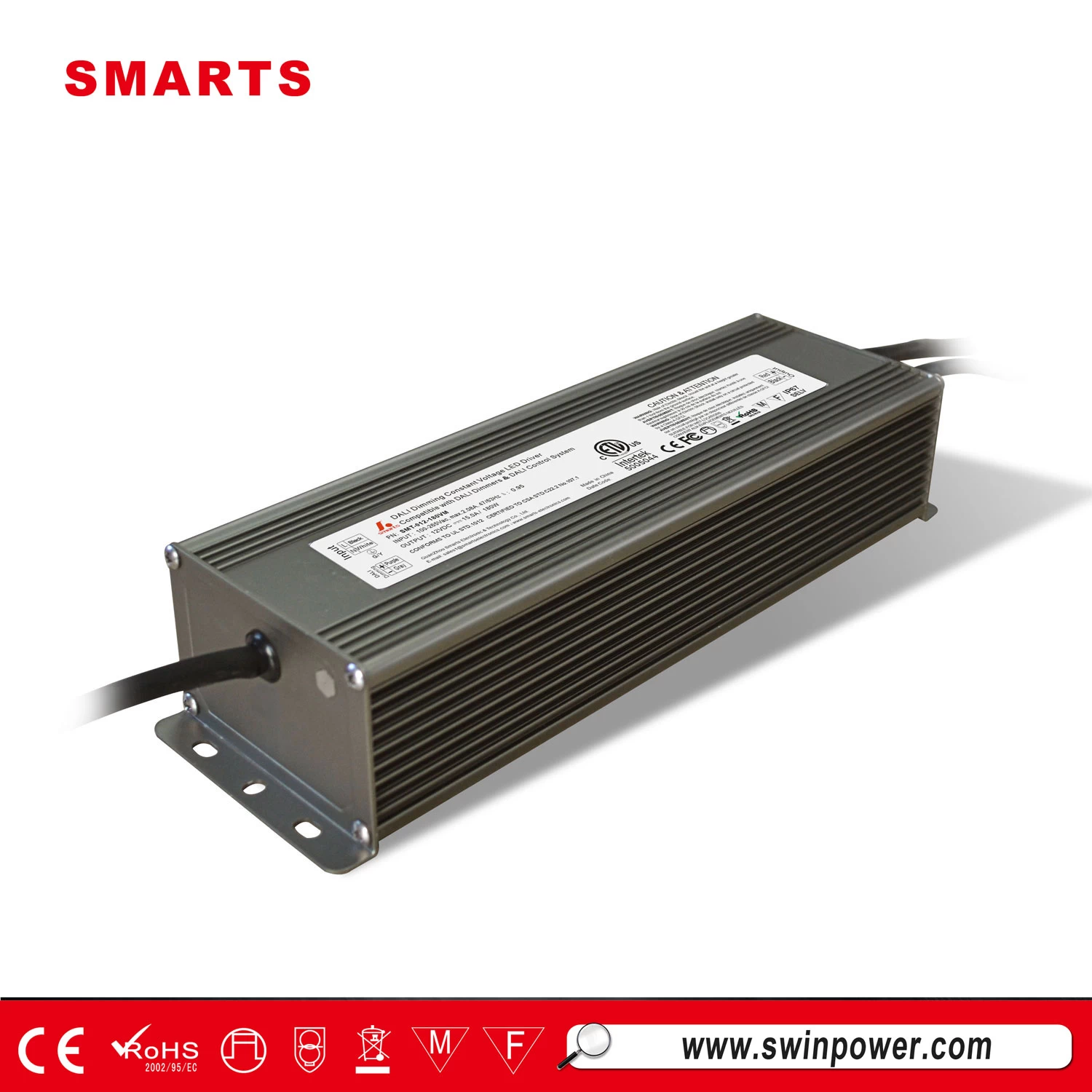

Waterproof power supply 12v 15A 180w Dali dimmable led driver for led light
Waterproof power supply must be ensure that wiring is correct before test in order to avoid light and power supply damage,If driver Cannot work normally, don’t maintain privately and contact us by email.
Feature:
-
Output constant Voltage
-
Range: 100-265VAC
-
Built-in active PFC function, PF>0.90
-
Working Efficiency >88%
-
Protections: short circuit/over load/ over current/ over temperature
-
Cooling by free air convection
-
IP67 design for indoor and outdoor installation .
-
Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
-
Dimming range from 0.1% to 100%
-
5 years warranty
-
Suitable for intelligent LED lighting
-
Compliance to worldwide safety regulations for lighting
-
Suitable for dry locations
Specification
|
Model
|
SMT-012-180VM
|
SMT-024-180VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0 - 15A
|
0 - 7.5A
|
|
Rated power
|
180W
|
180W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63HZ
|
|
Power Factor
|
PF≧0.90/120VAC PF≧0.90/230VAC PF≧0.90/265VAC（Full loading）
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Max.)
|
1.72A
|
0.86A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
≤120%
|
|
Over Circuit
|
≤1.2*Iout
|
|
Protection Class:
|
Ⅰ
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40 - +60℃
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃，10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0 - 50℃）
|
|
Vibration
|
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015,EN61000-3-2 (≥60%load)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
|
|
Others
|
Weight
|
1.6Kg
|
|
Size
|
256*78*47mm（L*W*H）
|
|
packing
|
305*295*210mm/10pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Problem Analysis
Problem Analysis
Question:
Can we make our company information on the label?
Answer:
--As per the policy of ETL/UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
