Wireless Access Control and Time & Attendance System with Fingerprint Identification

MYM11



Product Name: Wireless Access Control and Time & Attendance System with Fingerprint Identification

Description:

On basis of high resolution optical system,new biometric technology and security hardware platform,INJES MYM11 Access Control Biometric Fingerprint Reader allows only authorized users that are on the premises with fingerprint registration, and records both their entry and exit times, and support real time monitoring when connecting with INJESPRO 2.0 access control software.
Optional WIFI function, which can build Wireless Access Control and Time & Attendance System easily, no need wiring in office which have wifi signal covering, it help clients solve the wiring difficulty problems efficiently.

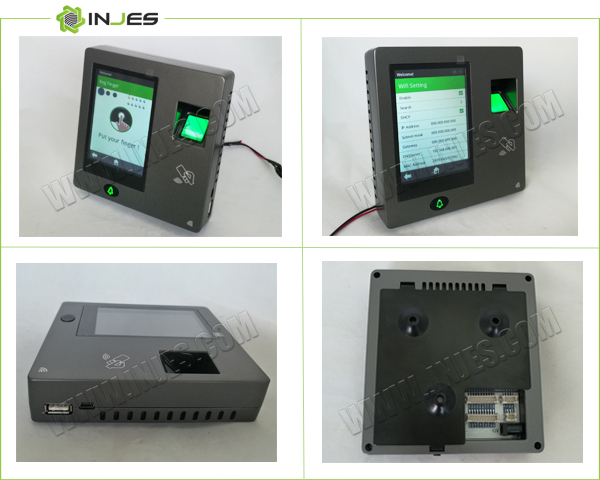

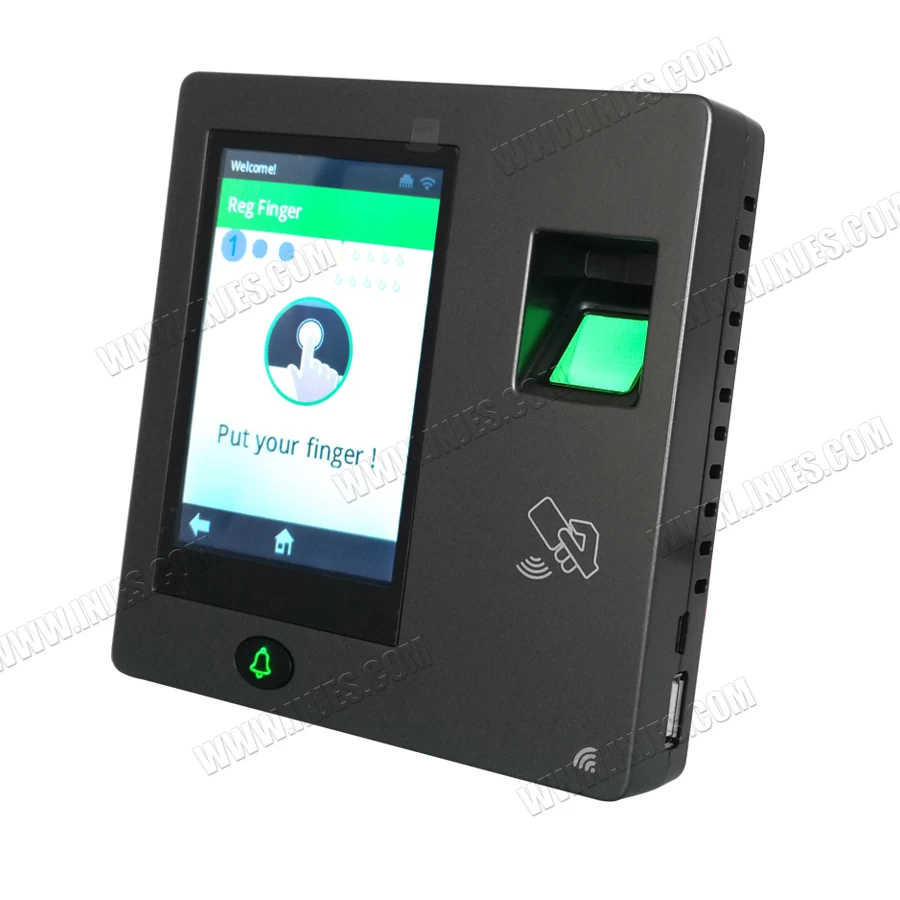

As a Slim and Powerful Fingerprint Access Terminals, MYM11 features 4 inch capacitive touch screen color display and small dimension casing design. With elegant appearance, it will be very suitable for small office room or large group enterprise's reception.

Features:

.4 inch touch screen
.ATMEL High Speed CPU
.Optional Wireless communication
.Small dimension and elegant design
.Support Linux Operation System
.Support Standalone model and web based mode
.Stores 3,000 templates and 200,000 transactions
.Support Wiegand In, Wiegand Out interface
.Free SDK for third party integration and development
.Accept firmware or software customization on basis of clients’ requirements

Specifications:

Fingerprint Capacity

3000 (Optional 5000,10000,50000)

Transaction Capacity

200,000

Hardware Platform

ATMEL 9G25

Sensor

Scratch-proof Optical Sensor

Display

4 inch TFT Color LCD Screen

Communication

TCP/IP,USBhost,USB client, WIFI (Optional)

Standard Functions

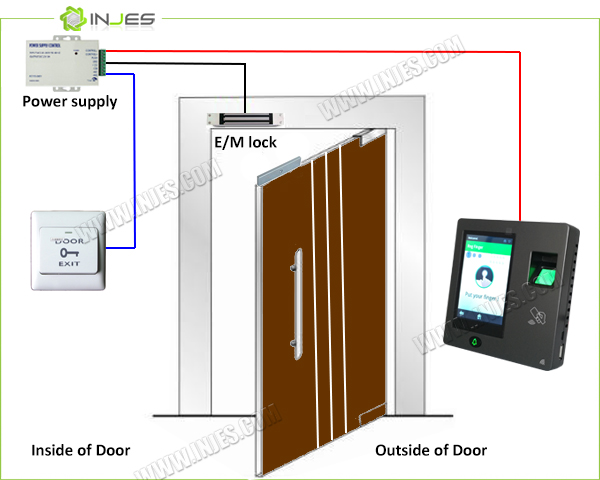

Fingerprint, ID card,password,3rd party electric lock, door sensor,
exit button, alarm, Door Bell, Wiegand input, Wiegand output

Optional Functions

MF card, Power supply,WIFI , NFC

FAR

0.0001%

FRR

0.01%

Speed

 <1s

Verification mode

1:1,1:N

Power Supply

12V 3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

L132 *W126 *H28 (mm)

Gross Weight

1.5 KG

Introduction:

Wireless Door Entry System

Configuration:

Access Control and Time & Attendance

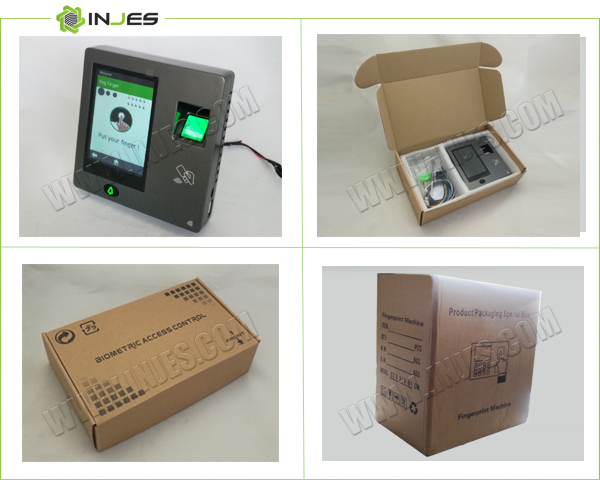

Package:

Wireless Access Control System
