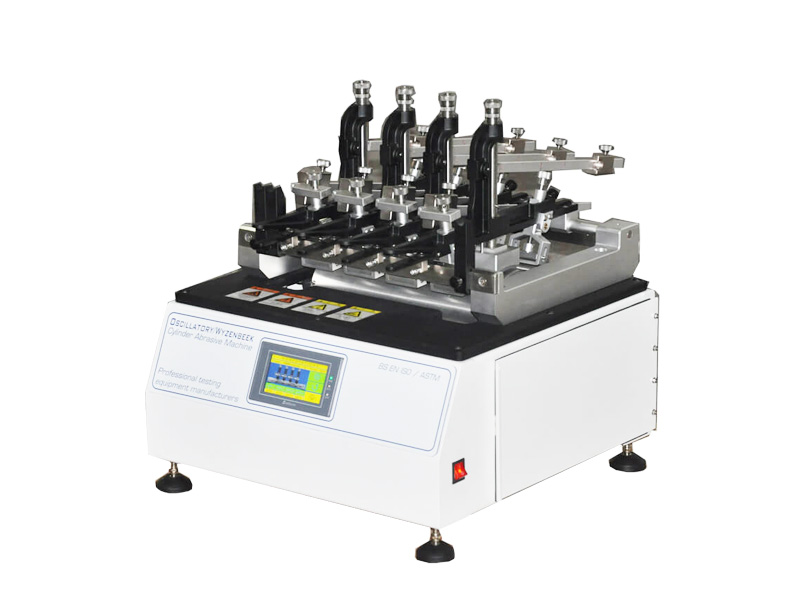

Wyzenbeek Abrasion Tester

Wyzenbeek Abrasion Tester is used to determine abrasion resistance of fabric, vinyl, leather and other materials.

Test Standards

ASTM D4157, ASTM D3597, FED-STD-191/5304, SAE J948, SAE J1530, GM 2756M, Toyota TSL 5101G 3.9.4, BS EN ISO 12402-7, LP-463KB-06-01, LP-463KC-04-01

Parameters

Model AT-T4007
Test Stations 4 groups
The rate of oscillation 90 ± 1 cyc / min
Abrasion Table Cambered surface: R 100 mm, Length: 400 mm
Abrasion Stroke 76 ± 2 mm
Friction Head Bottom Rubber Pressure Head: 50 X 50 mm Cambered Surface: R100 mm
Specimen Tension 17.8 N adjustable
Adjustable Tension Weight 340 g (8.9 N ~ 22.25 N)
Adjustable Load Weight 150 g (8.9 N ~ 17.8 N)
Sample Load 13.4 N adjustable
Specimen Size 73 x 245 mm
Power Supply 220 V / 50 Hz or 110 V / 60 Hz
