YX36.5--780 Corrugated Steel Panel Roll Forming Machine

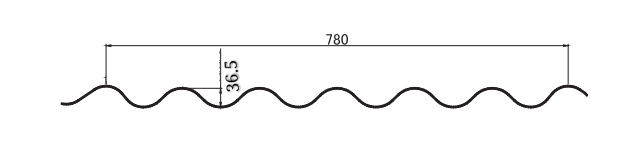

Corrugated Steel Panel Roll Forming Machine to produce Taiwan Popular corrugated roofing panels or wall panels.




             Corrugated Steel Panel Roll Forming Machine


Corrugated Steel Panel Roll Forming Machine


1.Main features of Corrugated Steel Panel Roll Forming Machine


    The advantages of corrugated roof panel forming machine are as follows:

    1.The panel is widely used in modern factory,such as workshop,4S auto shop,

       is a new popular roof panel and wall cladding.

    2.Easy operation, low maintenance cost


2.Detailed Images of Corrugated Steel Panel Roll Forming Machine


    Machine Parts

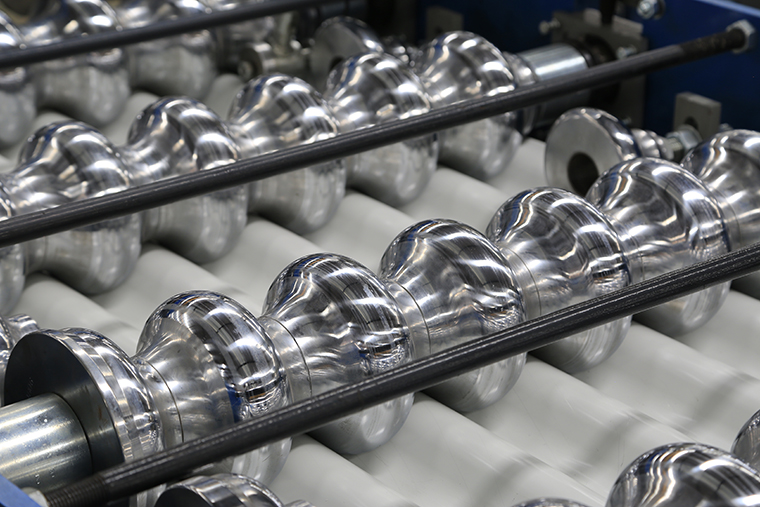

        1)   Corrugated roof panel forming machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        With Hard-Chrome Coating for long life.

        With feeding material guide,Body framemade from 450# H type steel by welding


 Corrugated Panel Roll Forming Machine

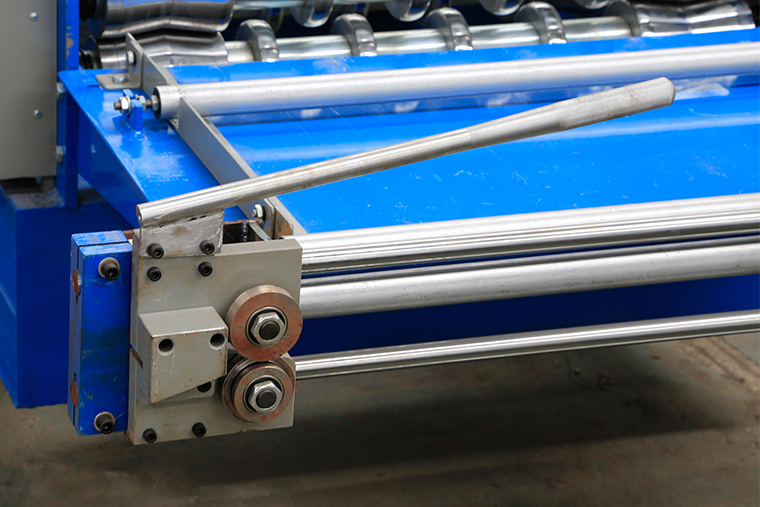

        2) Corrugated roof panel forming machine pre-cutter

        Brand: BMS    Original: China

        Avoid wasting material,easy to operate.The precutter is conneted with PLC control system,

        PLC is calculating profile length within roll forming. Once material is required to change,

        PLC is calculating the length for total and remind operator,production finishes and

       able to manual shearing material before roll forming so as to change materialfor new production.

        It is the advanced function and good for production to save material, no waste.


Corrugated Panel Roll Forming Machine

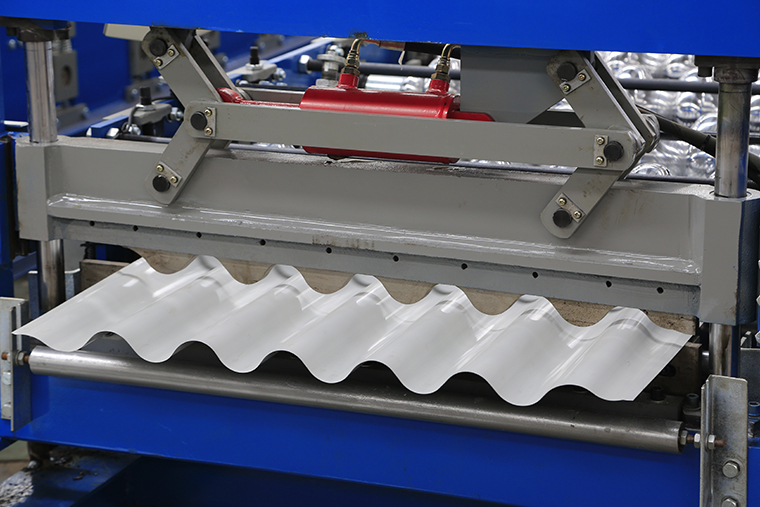

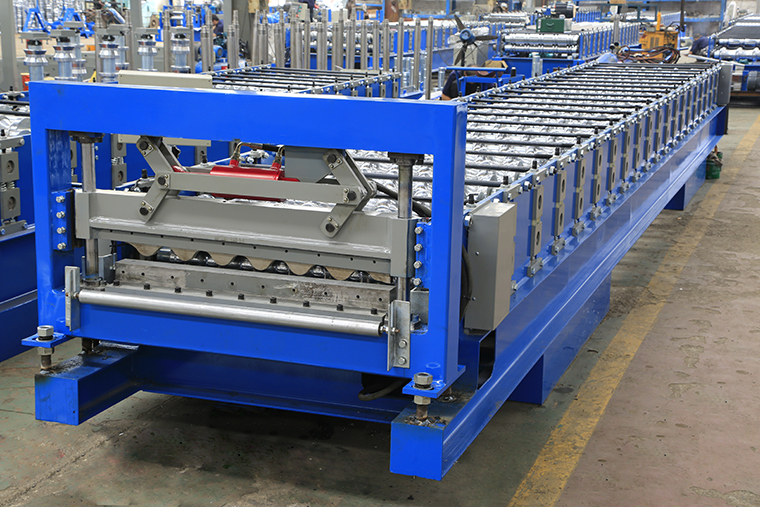

       3) Corrugated roof panel machine post cutter

        Brand: BMS    Original: China

        Cutter frame made from high quality 20mm steel plate by welding

        Post cut, stop to cutting, use the same hydraulic motor drive

        Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa

        Cutting tool material: mold steel Cr12(D3 steel), Heat treatment


Corrugated Panel Roll Forming Machine

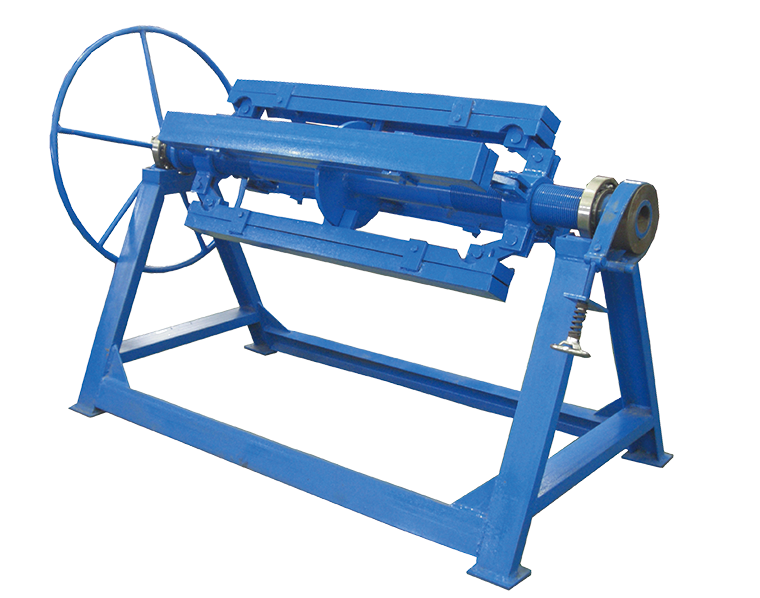

        4)Corrugated Steel Panel Roll Forming Machine decoiler

        Brand: BMS    Original: China

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1000mm, coil ID range 470mm±30mm

        Capacity: Max. 5Ton





Corrugated Panel Roll Forming Machine

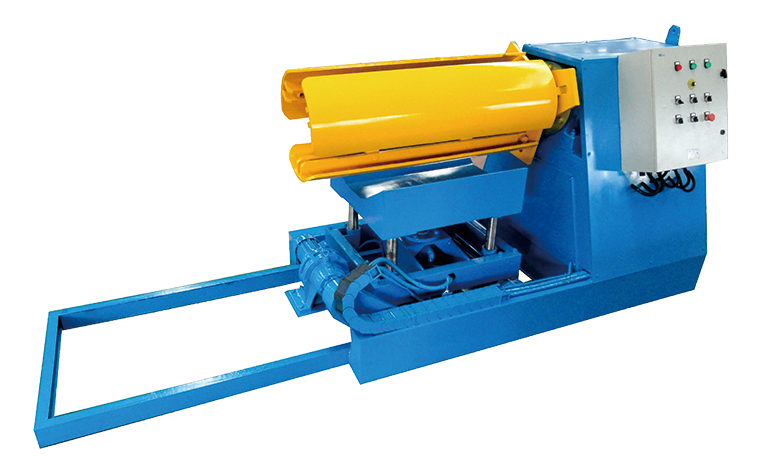

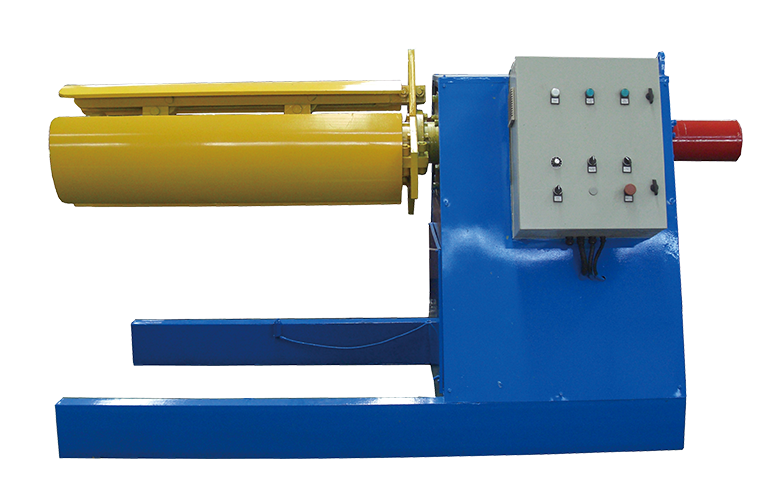

        With 6  tons hydraulic decoiler for option

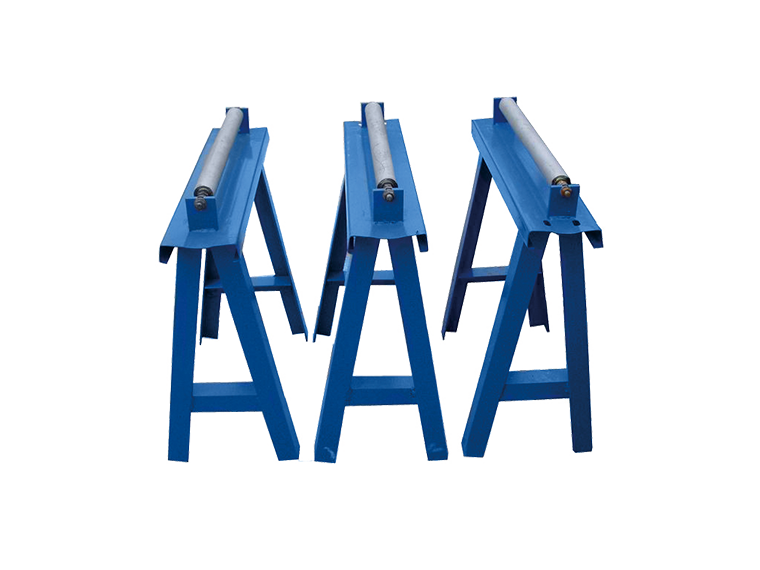

        5) Corrugated roof panel machine exit rack

        Brand: BMS    Original: China

        Un-powered,three units

Corrugated Panel Roll Forming Machine

Other detailes of Corrugated Steel Panel Roll Forming Machine


Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 19 rollers to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Schneider Electric/Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English
