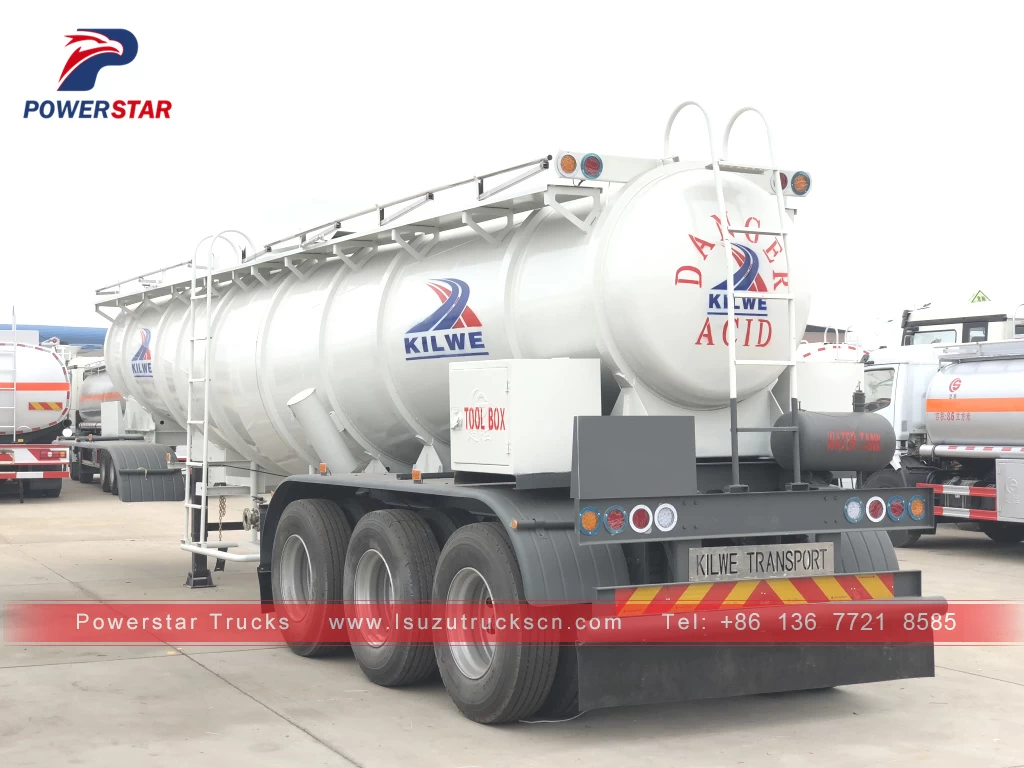

3 Axle 21,000l Acid tanker semi trailer for Zambia
Applications:
Sulfuric acid tank Semi trailer (also called ACID tank trailer, Chemical transport tanker trailer, Copper mining concentrated sulfuric acid tank trailer, Acid transport tanker trailer, V shape liquid acid trailer, 3 axle sulfuric acid storage tank trailer) are widely used to carry sulfuric Acid for copper mining.
As one of the featured products of Powerstar truck, our acid tanker trailers have earned reputation for reliable quality from world-wide customers.
Key Features:
---- 15 years Manufacturer experience.
---- Payload: 20ton, 30ton, 40ton, 60ton to 100ton.
---- Export to More than 70 Countries or Area.
---- Certificate: ISO9001, COC, PVOC, CIQ, SONCAP, BV, FORM E.
---- Quickly delivery to Worldwide.
Specifications:
| Item |
Specification |
| Tanker Chassis |
Chassis Frame |
Q345 high strength steel |
| Suspension |
Mechanical suspension |
| Tyre |
315/80R22.5 tyre 13 pieces including one spare tire |
| Axle |
FUWA brand 13 ton axle 3 pieces |
| Kingpin |
JOST 50# bolt in type Kingpin |
| Landing gear |
JOST two speed landing gear |
| |
|
|
| Tanker in Weight |
Kerb Weight |
9000KGS |
| Rated load |
30,000KGS |
| Design Pressure |
35kpa |
| Design Temperature |
50 |
| |
|
|
| Tanker Body |
Tank shape |
V shape, with enforcement outside |
| Full capacity |
Effective volume 21,000 liters |
| Compartment |
1 compartment |
| Tank material |
Q235 in 6mm thickness |
| End plate |
Q235 in 8mm thickness |
| Middle part |
Q235 in 8mm thcikness |
| Baffles |
4 baffles |
| |
|
|
| Tanker accessories |
Manhole Cover |
500mm in Diameters, one piece with breather valve |
| Discharge valve |
SS316 4 inch stainless ball valve and 1 piece butterfly valve |
| Anti-Static System |
copper plate, Static electricity plate and earth cable belt |
| |
|
|
| Other parts |
Ladder |
Split type ladder fixed at rear of tank |
| Walkway on top of tank |
Stainless steel catwalk |
| Tool box |
according customer request |
| Lime box |
according customer request |
| Mudguard |
steel type mudguard |
| Water tanker |
according customer request |
| Rear bumper |
according customer request |
| Alarm sign |
Dangerous lable and warning sign and speed limit signs according to the pictures cutomer offered |
| Fire Extinguisher Housing tank |
Cylinder shaped fire extinguisher tank, can load 9kg fire extinguisher. |
| Spare tyre carrier |
With two spare tire carrier |
| Fire extinguisher |
9Kg dry power fire extinguisher, 1 pieces |
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
