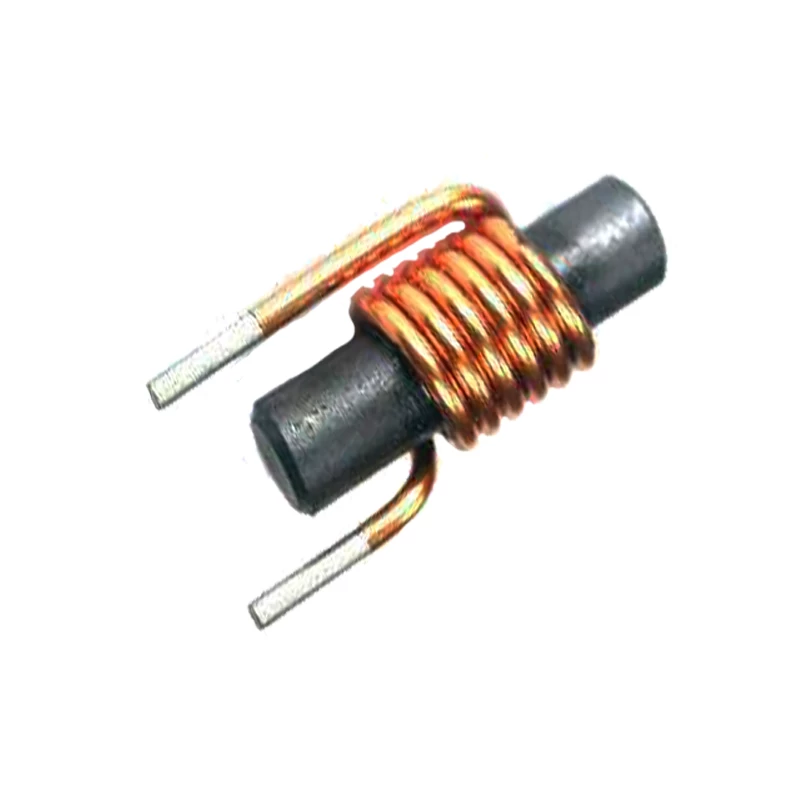

Φ5×20 Winding Wire Ferrite Rod Choke Coil With Ferrite Rod Cores

High frequency ferrite rod core magnetic coil inductor. Compact, light, easy surface mounting. Single-layer close winding. RoHS compliance and UL.







Hefei Mycoil Technology Co., LTD mainly manufacture and design electronic transformers, magnetic cores, transformer bobbins, common mode choke coils, filter inductors, relays, other electronic components accessories. Our rod core inductors have high resonance frequency, light weight, easy to surface mounting. Φ5×20 ferrite rod core inductors we shipped, are all meet customers requirement strictly, materials are environmental protected. We are located in AnHui Province, where is near to ShangHai, our labor cost is much lower, so our price is very competitive.


Quick Details

PN: MCT Φ5×20 Rod core inductor

Brand Name: MCT

Current Rating: @50Hz and 40℃ Ambient temperature

Custom Made: Available

Inductance Tolerance:±20%

Logo: Can be customized

Normal Inductance: Measure at 25℃

Packing: Carton,can custom

Testing Current: 0.1mA

Certification: ISO9001,ROHS,CE

Testing frequency :L≤10uH:1MHz,10uHL≤1000uH:100KHz,L1000uH:10KHz

OEM: Available

Climate level: 40/125/56

Lead Time: 25 days after payment

Terminal Tinned Copper Wire or LITZ Wire

MOQ: Any quantity

Ferrite Rod Core

Shipping: Air, Ship, etc

Single Layer Winding

With or Without Shrink Tube

Dimension Tolerance: Component:±0.5mm   Terminal±2.0mm

High Resonance Frequency


Part Information

Product Name: Φ5×20 Winding Wire Ferrite Rod Choke Coil With Ferrite Rod Cores

Applications: switching power supply, power amplifiers, broadband filtering, UPS and Adapter.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Specification

High Frequency Chokes with Ferrite Rod Cores  Φ5×20

IR in A

LR in uH

RDC-mΩ

ΦC-mm

MCT PN

1.0

100

125

0.45

MCT-LB-009

2.0

40

40

0.65

MCT-LB-010

4.0

22

20

0.85

MCT-LB-011

6.0

10

10

1.18

MCT-LB-012


We can supply these dimension Ferrite Rod Core. Please make your design with the following table:

Type

Diameter:A

Length:B

Type

Diameter

Length

R1.65×7

1.65±0.20

7±0.40

R6×10

6±0.30

10±0.40

R1.65×10

1.65±0.20

10±0.40

R6×12

6±0.30

12±0.40

R2×7

2±0.20

7±0.40

R6×15

6±0.30

15±0.40

R2×10

2±0.20

10±0.40

R6×20

6±0.30

20±0.40

R3×10

3±0.20

10±0.40

R6×22

6±0.30

22±0.50

R3×12

3±0.20

12±0.40

R6×22.5

6±0.30

22.5±0.50

R3×14

3±0.20

14±0.40

R6×25

6±0.30

25±0.50

R3×15

3±0.20

15±0.50

R6×30

6±0.30

30±0.50

R3×16

3±0.20

16±0.50

R6×45

6±0.30

45±0.50

R3×20

3±0.20

R6.2×26

6.2±0.30

26±0.50

R4×10

4±0.20

10±0.40

R7.94×7.94

7.94±0.30

7.94±0.40

R4×11

4±0.20

R8×18.5

8±0.40

18.5±0.50

R4×12

4±0.20

12±0.40

R8×20

8±0.40

20±0.50

R4×15

4±0.20

15±0.50

R8×25

8±0.40

25±0.50

R4×16

4±0.20

16±0.50

R8×30

8±0.40

30±0.50

R4×18

4±0.20

18±0.50

R8×32

8±0.40

32±0.50

R4×19

4±0.20

19±0.50

R8×40

8±0.40

40±0.50

R4×20

4±0.20

20±0.50

R10×6

10±0.50

6±0.40

R4×25

4±0.20

25±0.50

R10×12

10±0.50

12±0.40

R4.5×19

4.5±0.20

19±0.50

R10×20

10±0.50

20±0.50

R5×4

5±0.20

4±0.40

R10×22

10±0.50

22±0.50

R5×10

5±0.20

10±0.40

R10×30

10±0.50

30±0.50

R5×12

5±0.20

12±0.40

RWW3×8

3±0.20

8±0.40

R5×13

5±0.20

ROO3×10

3±0.20

10±0.40

R5×15

5±0.20

15±0.50

ROO4×15

4±0.20

15±0.50

R5×18

5±0.20

18±0.50

RWW4×20

4±0.20

20±0.50

R5×20

5±0.20

20±0.50

ROO5×15

5±0.30

15±0.50

R5×21.5

5±0.20

21.5±0.50

ROO5×20

5±0.30

20±0.50

R5×24

5±0.20

24±0.50

R5×25

5±0.20

25±0.50

R5×30

5±0.20

30±0.50

R5.5×17

5.5±0.20

17±0.50
