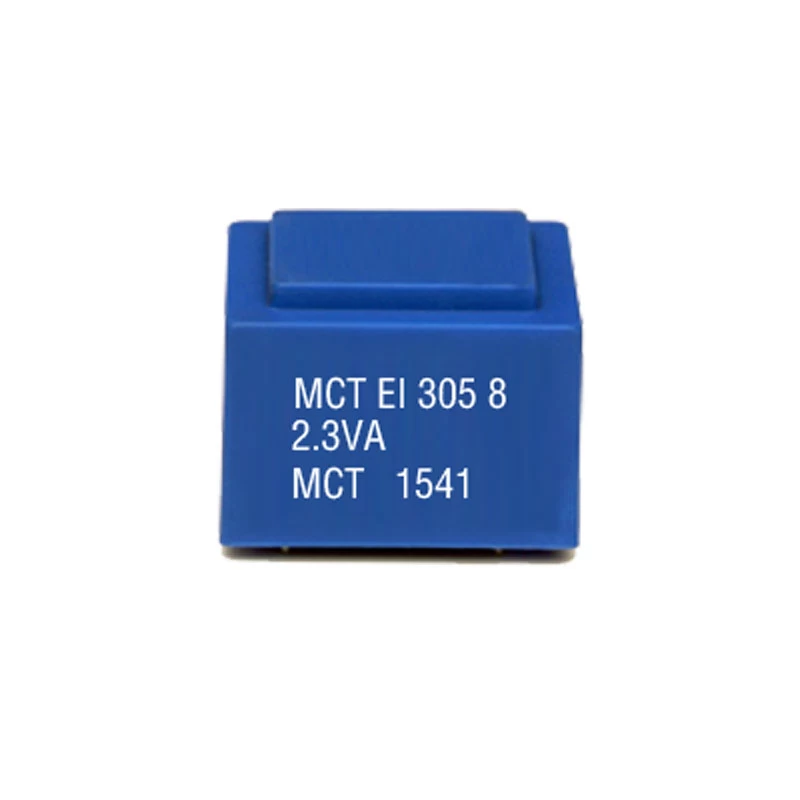

2.3VA EI30 Encapsulated PCB Mount Electronic Transformer

EI30 encapsulated transformer output power range from 1.3VA to 2.8VA. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.



Our Factory is made up of 500 people, huge output can be finished every day. If you have any request of EI30  PCB mount encapsulated transformers, welcome contact us! We can send free encapsulated transformer samples for your testing, and make new tooling to meet customer's different specifications.


Quick Details

Part No: EI30 1.3-2.8 VA

Brand name: MCT

Primary voltages from 12 V to 250 V

Custom made: Available

Output Power up to 2.8VA

Logo: Can be customized

Temperature class ta 70 °C/B

Packing: Carton, can custom

Bobbin type: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: 2.3VA EI30 Encapsulated PCB Mount Electronic Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

Best price EI30 encapsulated electronic transformer from China factory MCT



Product Part Number

Frame size/Core height

Output Power

Ta 70°C/F

Size(h)

Weight

Packaging unit

MCT EI 307 8/11.5 mm

1.3 V/A

22.1mm

0.076kg

50pieces

MCT EI 303 8/12.5 mm

1.5 V/A

23.8mm

0.081kg

50pieces

MCT EI 304 8/15.5 mm

2.1 V/A

26.8mm

0.099kg

50pieces

MCT EI 305 8/18.0 mm

2.3 V/A

29.5mm

0.111kg

50pieces

MCT EI 306 8/23.0 mm

2.8 V/A

34.0mm

0.135kg

50/40 pieces*


Order No.

Primary

Voltage V

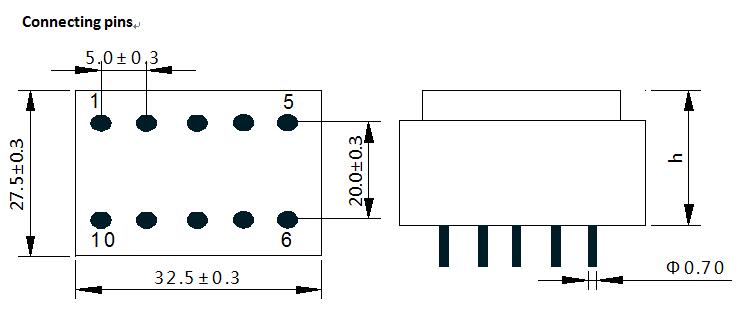

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 307 8009

230

1-5

1×6

217

7-9

1×10.7

1

MCT EI 307 8011

230

1-5

1×9

144

7-9

1×15.7

1

MCT EI 307 8001

230

1-5

1×12

108

7-9

1×19.8

1

MCT EI 307 8002

230

1-5

2×12

54

6-7/9-10

2×19.8

2

MCT EI 307 8012

230

1-5

1×15

87

7-9

1×25.0

1


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 303 8008

230

1-5

1×9

167

7-9

1×14.0

1

MCT EI 303 8021

230

1-5

2×9

83

6-7/9-10

2×14.0

2

MCT EI 303 8023

230

1-5

1×12

125

7-9

1×18.8

1


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 304 8013

230

1-5

1×6

350

7-9

1×11

1

MCT EI 304 8024

230

1-5

1×7.5

280

7-9

1×13.9

1

MCT EI 304 8014

230

1-5

1×9

233

7-9

1×16.2

1

MCT EI 304 8005

230

1-5

1×12

175

7-9

1×20.5

1

MCT EI 304 8006

230

1-5

2×12

88

6-7/9-10

2×20.5

2

MCT EI 304 8015

230

1-5

1×15

140

7-9

1×27.0

1


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 305 8022

230

1-5

1×7.5

307

7-9

1×13.2

1

MCT EI 305 8019

230

1-5

1×9

255

7-9

1×16.0

1

MCT EI 305 8020

230

1-5

2×9

127

6-7/9-10

2×15.7

2


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 306 8016

230

1-5

1×6

467

7-9

1×10.5

1

MCT EI 306 8017

230

1-5

1×9

311

7-9

1×16.1

1

MCT EI 306 8003

230

1-5

1×12

233

7-9

1×21.4

1

MCT EI 306 8007

230

1-5

2×12

117

6-7/9-10

2×21.4

2

MCT EI 306 8018

230

1-5

1×15

187

7-9

1×26.1

1
