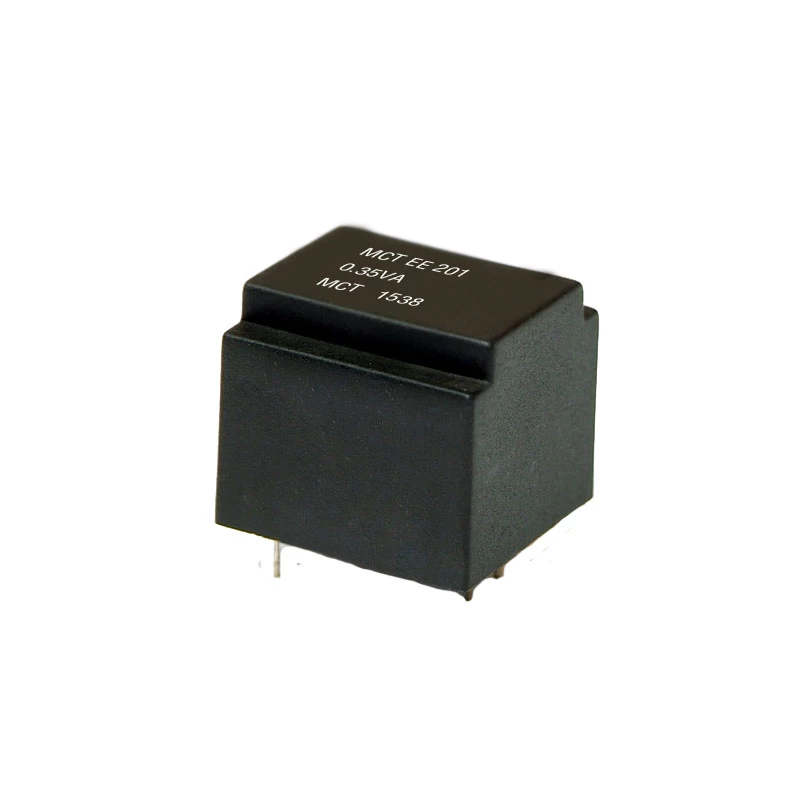

Printed Circuit Board Encapsulated Transformer Output Power 0.35VA

Encapsulated transformer output power range from 0.35VA to 0.5VA. Primary voltages from 12 V to 250 V. Secondary voltages from 4 V to 24 V or 2 x 3 V to 2 x 12 V. Further voltages on demand.Vacuum-encapsulated. Inherently short-circuit-proof.



Professional electronic components manufacture, our factory is made up of 500 people, huge output can be finished every day. If you have any request of low power encapsulated transformers, welcome contact us! We can send free encapsulated transformer samples for your testing, and make new tooling to meet customer's different specifications.



Quick Details

Part No: EE20 0.35VA

Brand name: MCT

Primary voltages from 12 V to 250 V

Custom made: Available

Output Power up to 0.5 VA

Logo: Can be customized

Temperature class ta70 °C/B

Packing: Carton, can custom

Bobbin type: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: Printed Circuit Board Encapsulated Transformer Output Power 0.35VA

ProductRange: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

High quality encapsulated electronic transformer


Product Part Number

Frame size/Core height

Output Power

To 70°C/B

Size(h)

Weight

Packaging unit

MCT EE 201/6mm

0.35V/A

15mm

0.025kg

50/250 pieces*

MCT EE 202/10mm

0.50V/A

19mm

0.035kg

50/250 pieces*


Order No.

Primary

Voltage V

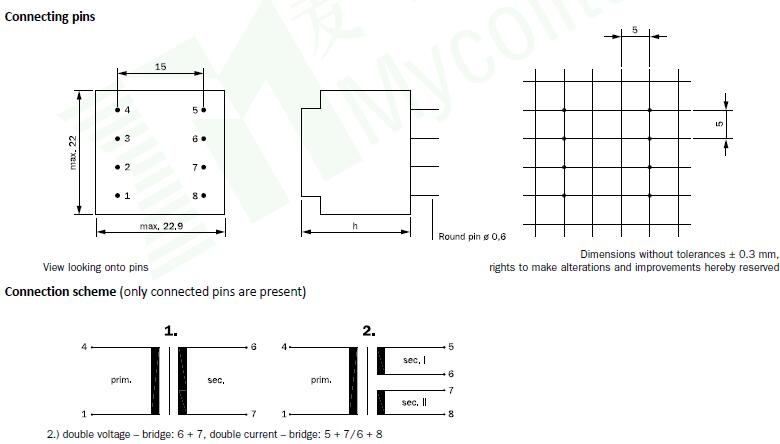

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT 201 0128

230

1-4

1×6

58

6-7

1×10.0

1

MCT 201 0142

230

1-4

2×6

29

5-6/7-8

2×10.6

2

MCT 201 0143

230

1-4

1×7.5

47

6-7

1×12.6

1

MCT 201 0136

230

1-4

1×9

39

6-7

1×14.4

1

MCT 201 0144

230

1-4

2×9

19

5-6/7-8

2×16.2

2

MCT 201 0145

230

1-4

1×12

29

6-7

1×20.8

1

MCT 201 0146

230

1-4

2×12

15

5-6/7-8

2×19.7

2

MCT 201 0147

230

1-4

1×15

23

6-7

1×26.1

1

MCT 201 0149

230

1-4

1×18

19

6-7

1×30.4

1

MCT 201 0150

230

1-4

1×21

17

6-7

1×36.0

1

MCT 201 0135

230

1-4

1×24

15

6-7

1×36.8

1


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT 202 0154

230

1-4

1×6

83

6-7

1×10.2

1

MCT 202 0155

230

1-4

2×6

42

5-6/7-8

2×9.7

2

MCT 202 0156

230

1-4

1×7.5

67

6-7

1×12.8

1

MCT 202 0157

230

1-4

1×9

55

6-7

1×15.4

1

MCT 202 0158

230

1-4

2×9

28

5-6/7-8

2×15.4

2

MCT 202 0159

230

1-4

1×12

42

6-7

1×21.2

1

MCT 202 0160

230

1-4

2×12

21

5-6/7-8

2×21.2

2

MCT 202 0161

230

1-4

1×15

33

6-7

1×25.9

1

MCT 202 0162

230

1-4

1×18

28

6-7

1×30.9

1

MCT 202 0163

230

1-4

1×21

24

6-7

1×36.2

1

MCT 202 0164

230

1-4

1×24

21

6-7

1×41.2

1


If you have any request, please contact us, we will give you fast reply.
