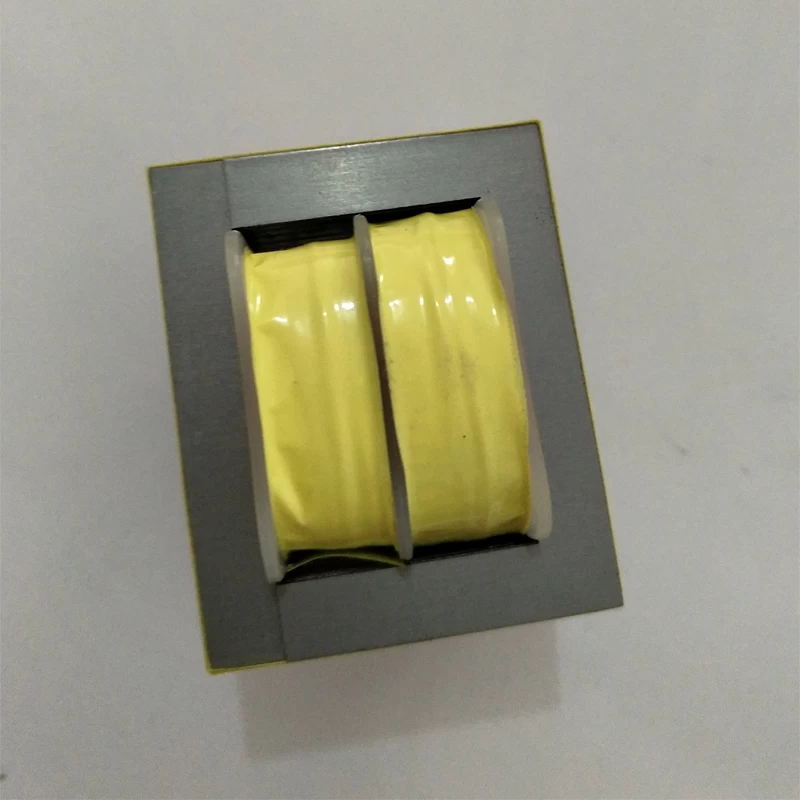

36.0VA EI66 Low Frequency Laminated Transformer For PCB Mounting

Low frequency EI66 laminated transformer. International standard EI silicon steel. Low frequency and high power output transformer. Rugged construction - no additional mounting hardware, universal design, fits industry-standard footprints. Low Frequency, open-style laminated, split bobbin,  horizontal plug-in series.



We are ISO9001 certified factory, we mainly produce various transformers. If you are looking for high quality EI series low frequency laminated power transformers, we can send sample for your testing, if our sample approved your testing, then we can began from small order to big order, custom design and OEM service also available.


Quick Details

Part No: EI66 Laminated transformers 36.0VA Series

Brand name: MCT

High (2500V) isolation2500VRMS HIPOT

Custom made: Available

Non-concentric design - eliminates ESS

Logo: Can be customized

High insulation performance

Packing: Carton,can custom

Available in single or dual primary

OEM: Available

Certification: ISO9001,ROHS,CE

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: 36.0VA EI66 Low Frequency Laminated Transformer For PCB Mounting

Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.

Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

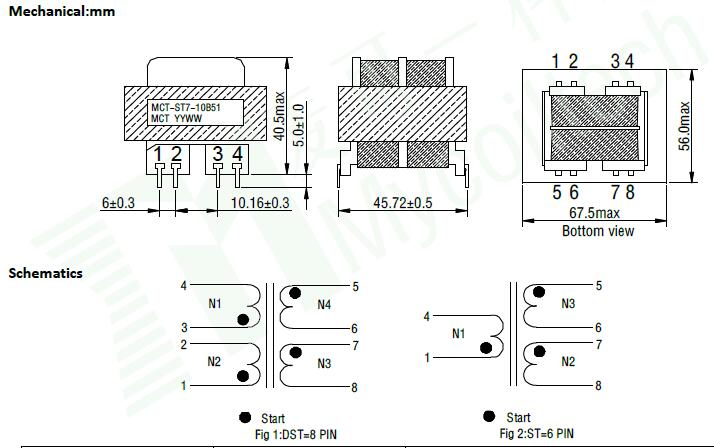

Product Specifications

EI66 output power 36.0VA Switching Transformer

MCT Part No.

115V-6Pin

MCT Part No.

115V/230V-8Pin

Secondary RMS Rating

Series

Parallel

MCT-ST7-10B51

MCT-DST7-10B51

10V C.T. @ 3.6A

5V @ 7.2A

MCT-ST7-12B52

MCT-DST7-12B52

12.6V C.T. @ 2.85A

6.3V @ 5.7A

MCT-ST7-16B53

MCT-DST7-16B53

16V C.T.@ 2.25A

8V @ 4.5A

MCT-ST7-20B54

MCT-DST7-20B54

20V C.T. @ 1.8A

10V @ 3.6A

MCT-ST7-24B55

MCT-DST7-24B55

24V C.T. @ 1.5A

12V @ 3.0A

MCT-ST7-28B56

MCT-DST7-28B56

28V C.T. @ 1.3A

14V @ 2.6A

MCT-ST7-36B57

MCT-DST7-36B57

36V C.T. @1.0A

18V @ 2.0A

MCT-ST7-48B58

MCT-DST7-48B58

48V C.T. @ 0.75A

24V @ 1.5A

MCT-ST7-56B59

MCT-DST7-56B59

56V C.T. @ 0.65A

28V @ 1.3A

MCT-ST7-120B60

MCT-DST7-120B60

120V C.T. @ 0.3A

60V @ 0.6A
