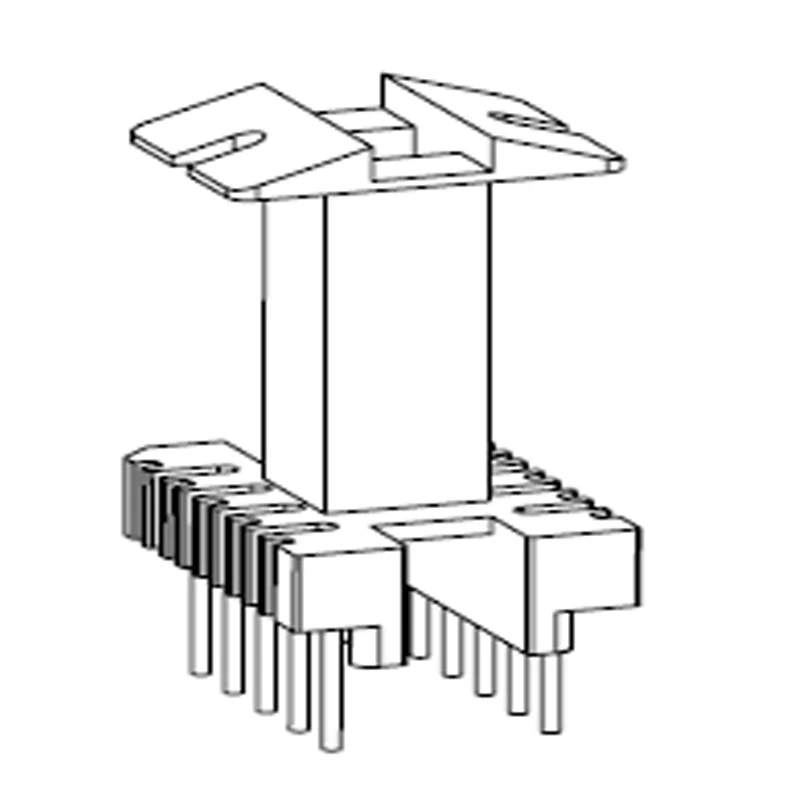

5+5 Pin Single Slot EL19 High Frequency Bobbin Vertical Winding Bobbin

EL19 5+5 pin transformer bobbin. Vertical type transformer bobbin. Parallel distance=12mm. Pin Pitch=4mm. Phenolic bobbin. Dip bobbin. Bobbin Size=22.5mmX15.8mmX29.2mm. UL REC: 94V-0



Competitive price EL19 vertical transformer bobbin(coil former)5+5 pin single slot transformer bobbin. If you are looking for good quality customized EL type winding bobbin, welcome to contact us, custom design also acceptable.


Quick Details

Part Number: MCT-EL1903(V5+5P)

Brand Name: MCT

Material: Phenolic

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 5+5 Pin Single Slot EL19 High Frequency Bobbin Vertical Winding Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

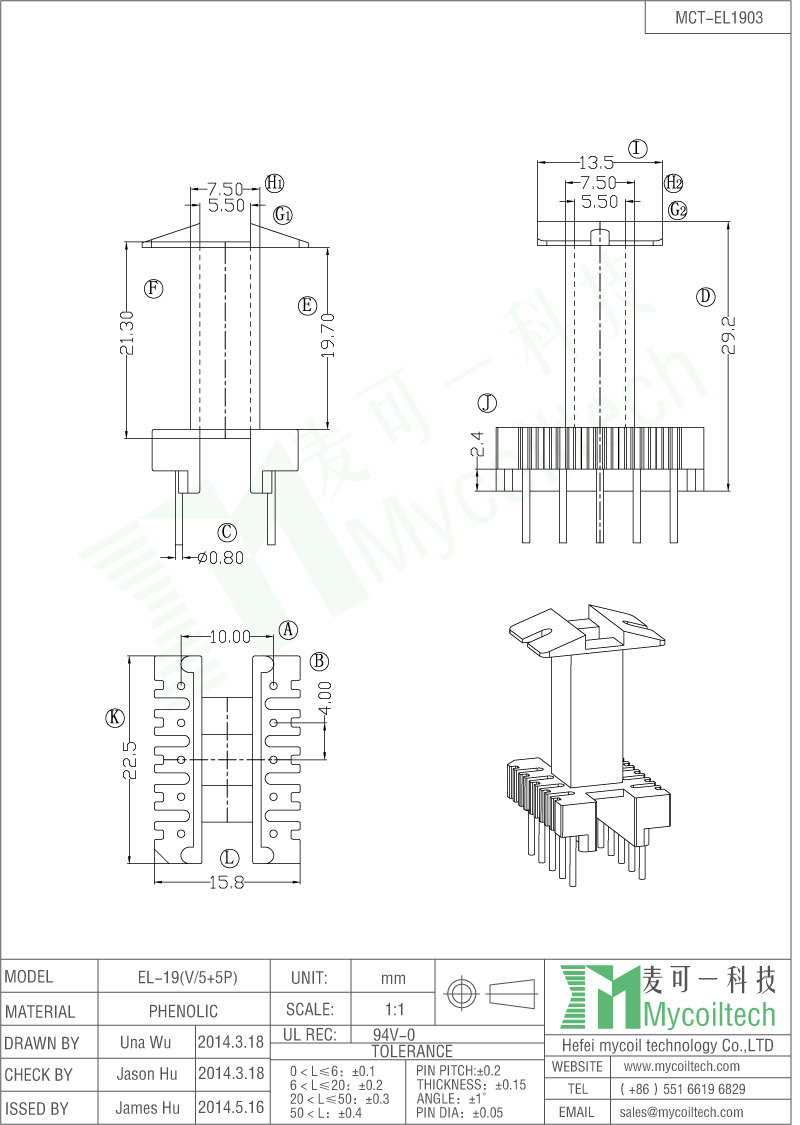

Product Specification

5+5 Pins El19 Transformer Bobbin Customized Coil Former
