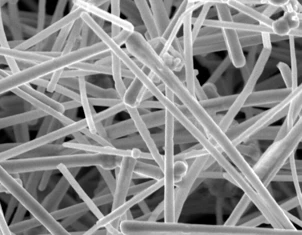

50-100nm High Catalytic Activity Cu Nanowires

Spec: diameter: 50-100nm, length: >5um.

Cu nanowires application:

1. Cu nanowires used to make the film, which can greatly reduce the potential for mobile phones, e-readers and other display manufacturing costs, and can help scientists build foldable electronic products and improve the performance of solar cells.

2. Cu nanowires has excellent electrical properties can be used to produce nano-circuit devices.

3. The researchers said they have developed beyond the cu nanowires in addition to the performance of carbon nanotubes, the price is also lower than the silver nanowire technology, the use of an array of cu nanowires circuit produced, may be included in the printing process in order to room temperature printed on a transparent flexible plastic substrate layer, as the display pixels, or a solar battery core processor.

4. Cu due to low resistance, electromigration resistance is good, low cost, etc. has become the most commonly used conventional electronic circuit wire, and therefore suitable for research and development in microelectronics and semiconductor element metal Cu nanowires having a great prospect .

5. Cu nanowires most novel catalyst has high reactivity and selectivity, etc., but because of the nanowires with high surface energy leads to its easy reunion eventually lose catalytic activity, so are generally choose a suitable ligand for Cu nanowires may be modified to improve its dispersibility, avoiding agglomeration leading to inactivation of the catalytic activity.

6. Cu nanowires have a very low electric fields and high stability open, in the cold field emission source also has good application prospects.

7. Because the cu nanowires large proportion of surface atoms, with strong surface activity, so the need for Cu nanowires of different surface modification, solve dispersion and poor stability and other issues, is expected to be good photocatalytic applications.
