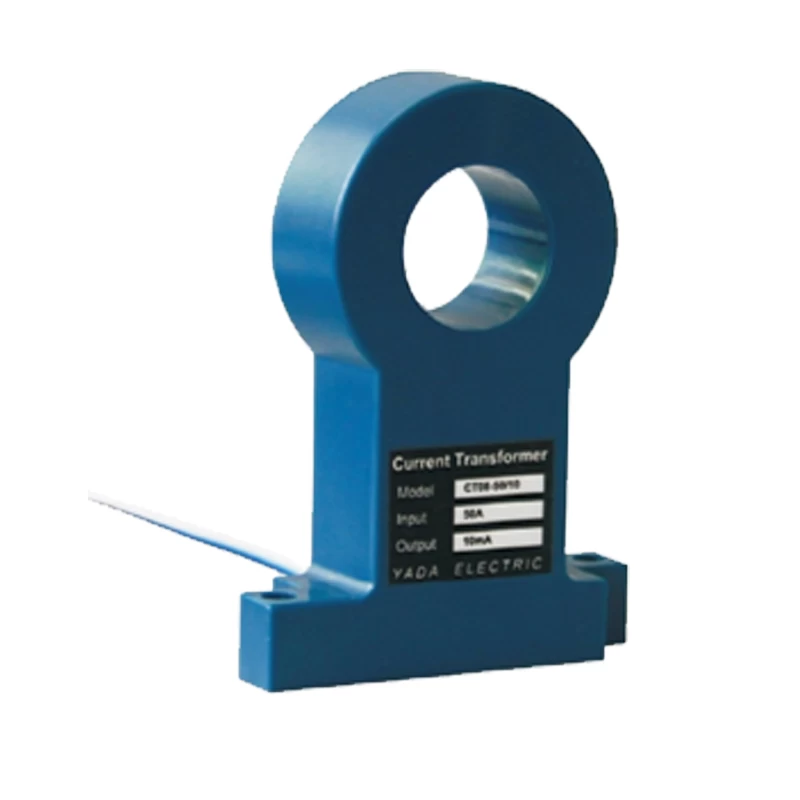

50A/10mA Lamination Core with Bobbin Current Transformer

50A lamination current transformer mainly used in current measurements, power meter, current control circuit. Lsolated withstand voltage:3000V. Built-in busbar.



50A precision current transformer is our hot selling products, if you are looking for new design current transformers, you can send specification to us, our engineers are very good at designing the products according to customer's need, so we will give you fast reply.



Quick Details

Part No: MCT08A50A Precision Current Transformer



Brand name: MCT

Operating temperature-40°C~50°C



Custom made: Available

Storage temperature:-40°C~70°C



Logo: Can be customized

Relative humidity:10~95%



Packing: Carton, can custom

Rated input current: 50A



MOQ: Any quantity

Certification: ISO9001,ROHS,CE



OEM: Available

Lead time: 25 days after payment



Shipping: Air, Ship, etc



Part Information

Product Name: 50A/10mA Lamination Core with Bobbin Current Transformer

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Power Systems. Measuring instruments. Relay protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.



Product Specification

MCT PN

Rated IN/OUT

Accuracy

Linearity Range

Phase shift

Load resistance

Isolated withstand voltage

Threading aperture,

Unit:mm

MCT08A05A

50A/10mA

0.2

0~60A

10

20Ω

3000V

Φ20

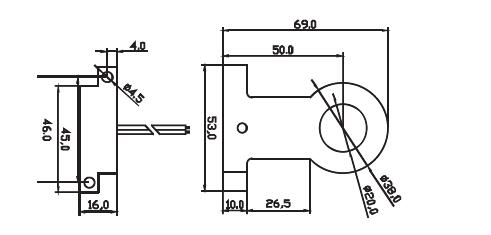

Dimension:mm

Mini Precision Current Transformers factory

Notification

Power supply is needed when operational amplifier is added to the transformer. ±15V,±12V or according to the actual operation.

OP07 series of operational amplifier is recommended.

The fixed temperature coefficient of resistance in the circuit must be over 50PPM.

Welcome customized type requirements.


If you have any questions, please contact us or leaving your comments, we will give you fast reply.
