NO.
|
Name of the parts
|
Specification
|
Quantities
|
Note
|
|
1
|
Roots Blower
|
18.5kw
|
1
|
|
|
2
|

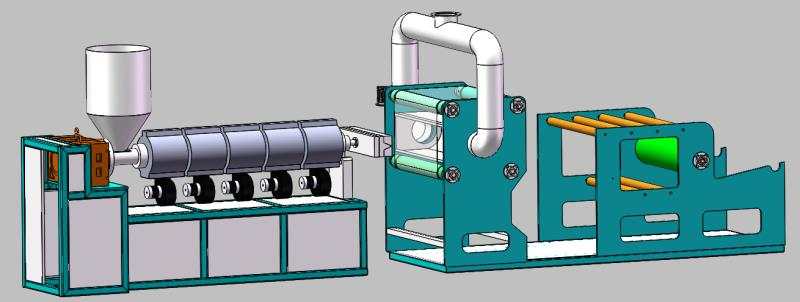

Screw Host
|
65
|
1
|
|
|
3
|
Filter
|
Pneumatic filter
|
1
|
|
|
4
|
Metering Pumps
|
HRA1
|
1
|
|
|
5
|

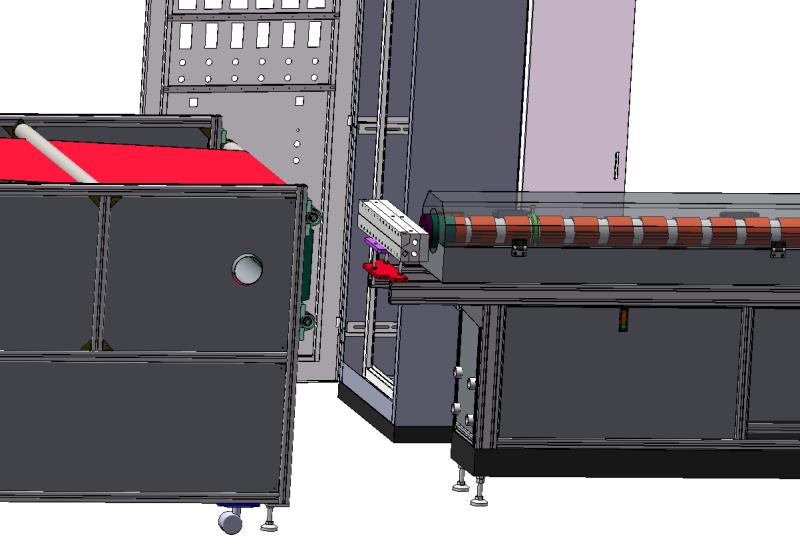

Die head
|
Spinneret 650mm
|
1
|
Name
No. 630，Hole 0.25mm
|
|
6
|

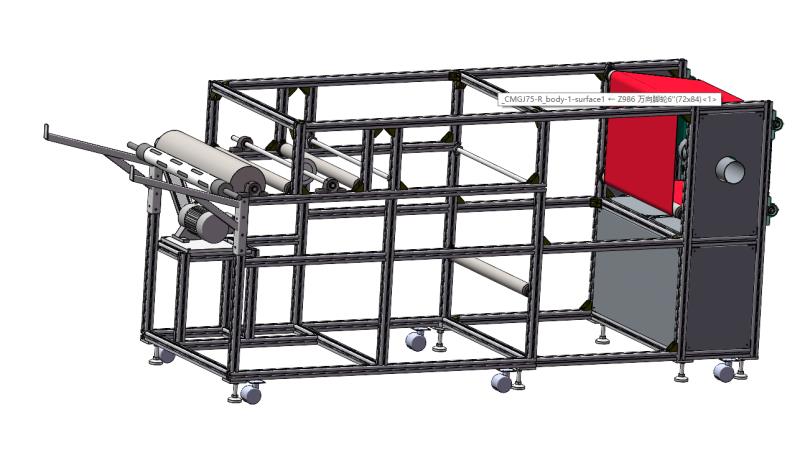

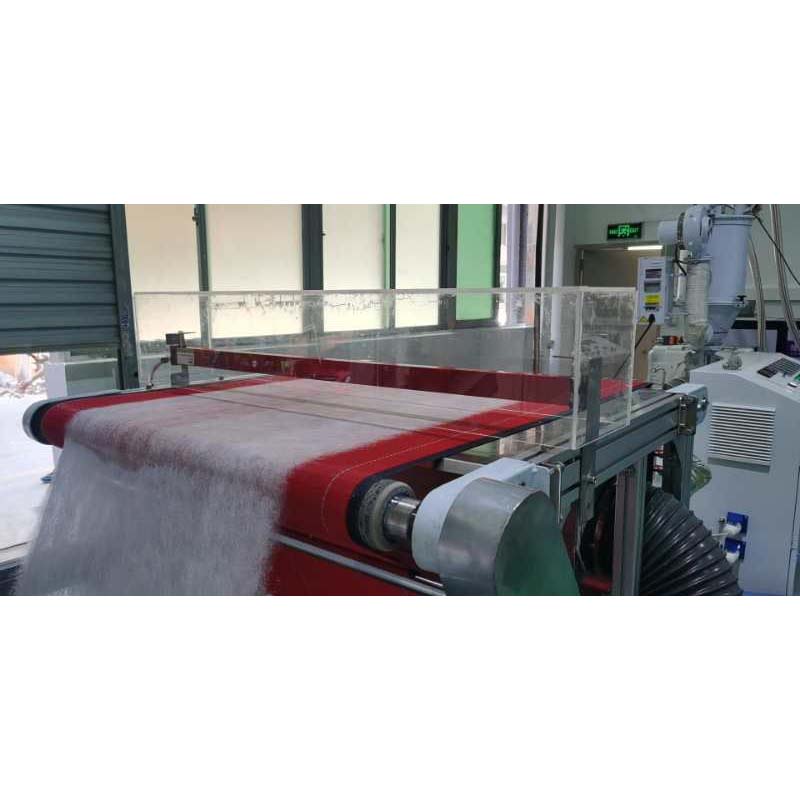

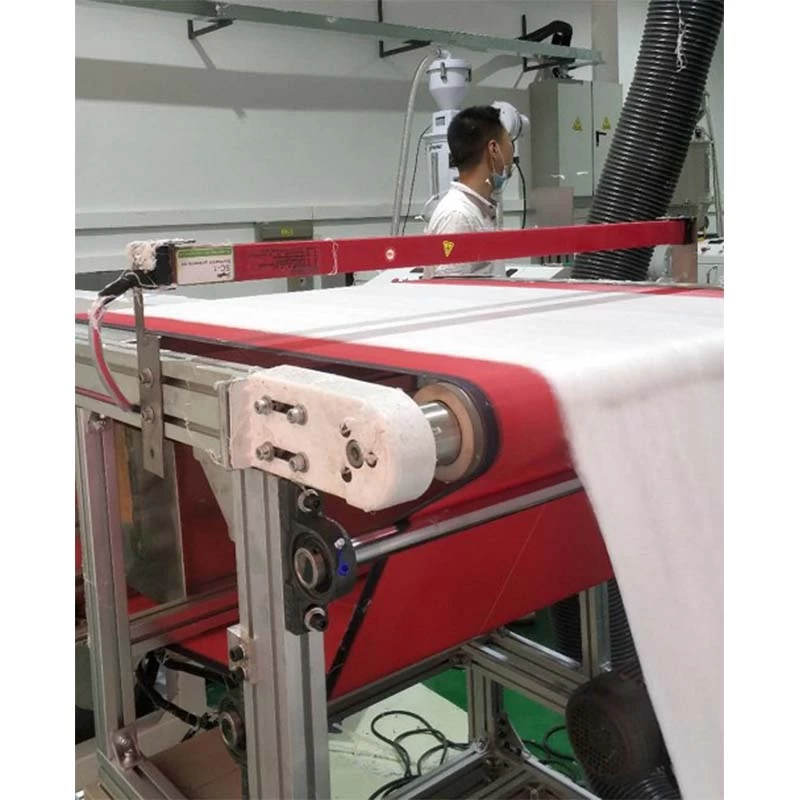

Web Forming Machine
|
Width 650mm
|
1
|
With slitting
|
|
7
|

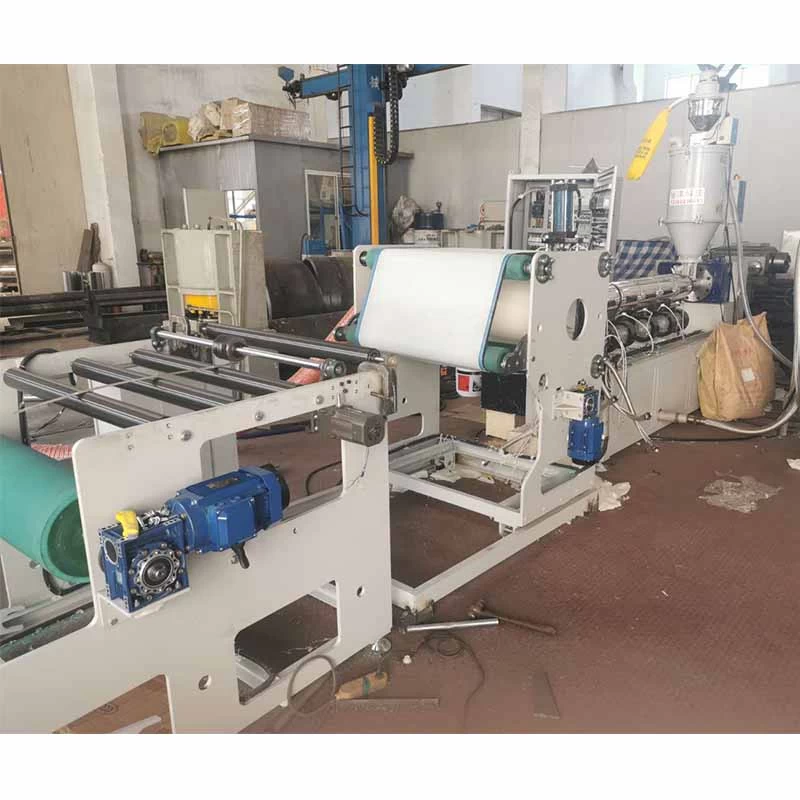

Winder
|
Width 650mm
|
1
|
Inflatable shaft
|
|
8
|
Induced Draft fan
|
|
1
|
|
|
9
|
Heater
|
40kw
|
1
|
|
|
10
|
Electrostatic
Electret Processor
|
650
|
1
|
|
|
11
|
Vacuum Feeder
|
|
1
|
|
|
12
|
Electronic Control System
|
650 Cabinet
|
1
|
|
Machine area: 3m * 10m
Machine environment: The best is sealed, it
is recommended to use color steel tiles to build, to achieve a windless
insulation state.
Raw materials: Jinfa Branch, Shanghai
Secco, etc.

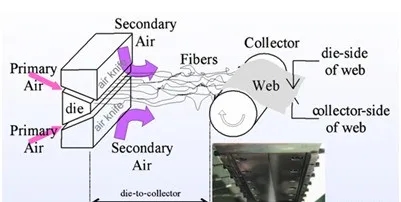

Points of attention in the process flow: 1
fan pressure, 2 selection of raw materials is better with master batch, 3.
temperature reaches 250-300 degrees, 4 mold filtering effect, 5 mold heating
degree, 6 melt blowing distance, 7 net speed The air volume of 8 induced draft
fans, the number of cutting blades of 9 minutes, the speed of 10 windings, and
the power distribution of 11 electrets.
