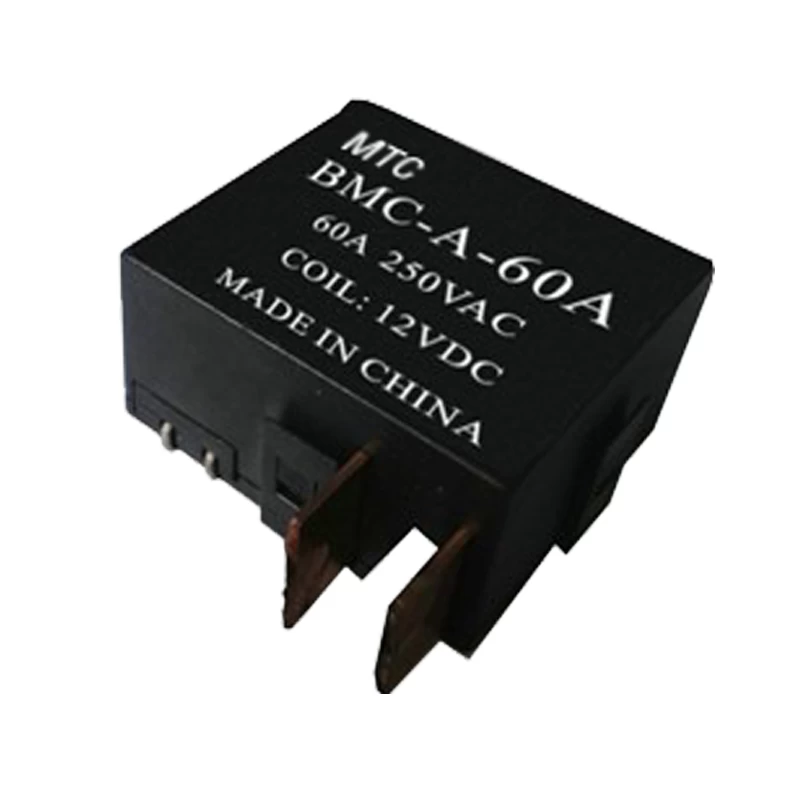

60A 250VAC magnetic latching relay widely used in electronic energy meter, automatic meter reading system, lamp controller, complex switch and electronics equipment. Hefei Mycoil Technology Co.,LTD is ISO9001:2008 certification factory, we are skilled at designing and producing electronic transformers, choke coils, full range of SMD power inductors, EMI filters, magnetic latching relays. Magnetic Latching Relay 60A has many advantages, such as low 60A high contact load capacity, low switching power 15 KVA, low power consumption, save electricity, strong impact resistance, high reliability, magnetic relay life is long and can provide one coil with double coil relay.
Quick Details
|
Part No: MCT-BMC-60A Relay
|
|
Brand name: MCT
|
|
Contact form: 1B
|
|
Custom made: Available
|
|
Contact material: silver alloy
|
|
Logo: Can be customized
|
|
Contact voltage drop: MAX.15mV
|
|
Packing: Carton,can custom
|
|
Contact load (resistance): 60A 250VAC
|
|
Certification: ISO9001,ROHS,CE
|
|
Maximum Switching Current: 60A
|
|
OEM: Available
|
|
(Max switching power): 15000VA
|
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
|
MOQ: Any quantity
|
Part Information
Product Name: 60A 250VAC Magnetic Latching Relay For Smart Energy Meters
Magnetic Latching Relay Features: Low 100A high contact load capacity. Low 100A high contact load capacity. Low switching power 25 k/VA. Low power consumption. Strong impact resistance, high reliability. Provide one coil with double coil relay.
Applications: Home appliance, automatic control equipment, industrial equipment power supply, other electronic devices.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Product Details

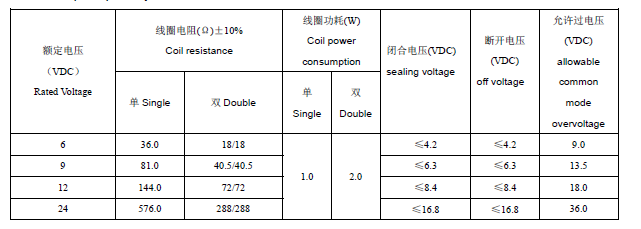

Coil parameters
Environmental Parameter

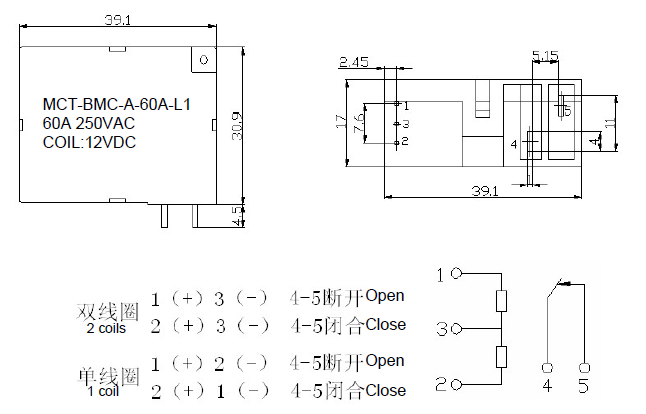

Contour Chart (unit: mm)
Please Note
Low with no soft braided copper wire magnetic hold relay, load leads to feet can't soldering, not casually throw, and cannot be rigidly two lead foot at the same time. In low relay incoming inspection and use to should take put down gently, prevent dropping impact parameters. The factory as a destructive testing product strictly distinguish with normal logo, may not be installed to use.
