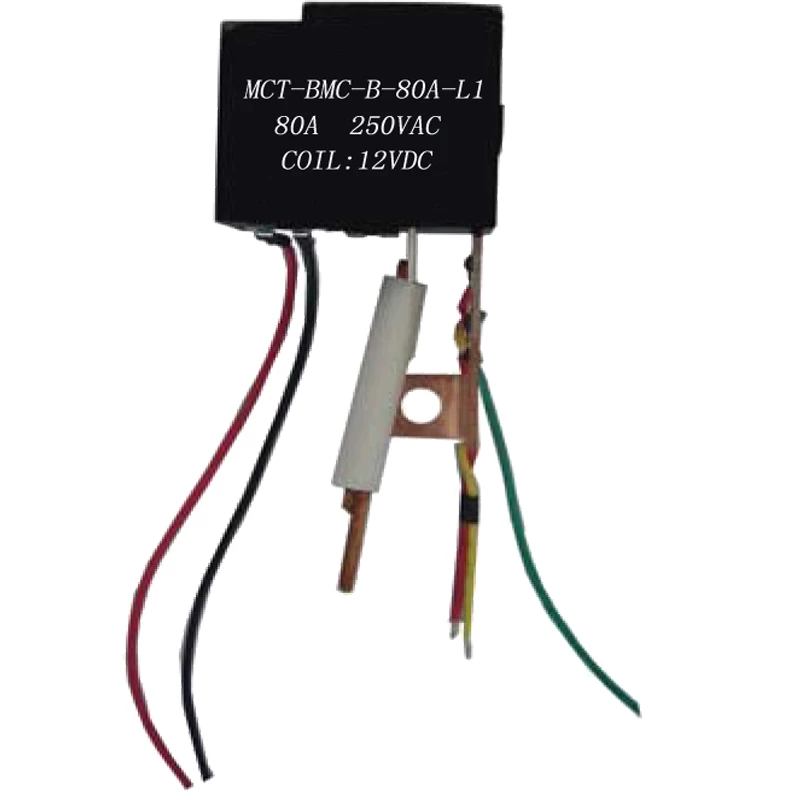

Magnetic Latching Relay 80A 250VAC For Automatic Meter Reading System

Magnetic latching relay contact capacity:80A 250VAC. Dielectric strength(VAC):4000VAC.Permanent magnetic strength to keep stability,save power consumption.



Magnetic latching relay as electromechanical switch. Mainly used in electronic energy meter, automatic meter reading system, lamp controller, complex switch and electronics equipment. Hefei Mycoil Technology Co.,LTD is ISO9001:2008 certification factory, we are skilled at designing and producing electronic transformers, choke coils, full range of SMD power inductors, EMI filters, magnetic latching relays.


Magnetic Latching Relay 80A factory status to contact closure state (reset state), but because of the transportation or relay hit when installation, the influence of such factors as may change state, so it is necessary to take measures before use to make its reset. Low magnetic stick relay in order to ensure reliable action, must be applied to the coil excitation voltage rating, and the action time of the pulse width must be more than 3 times. For double coil relay, not to the two coil voltage signal at the same time, also don't long time (more than 1 minute) to the coil voltage, in case of damage of coil overheating.


Quick Details

Part No: MCT-BMC-80A Relay

Brand name: MCT

Contact form: 1

Custom made: Available

Contact material: silver alloy

Logo: Can be customized

Contact voltage dropMAX.15mV

Packing: Carton,can custom

Contact load (resistance)80A 250VAC

Certification: ISO9001,ROHS,CE

Max switching voltage: 250V AC

OEM: Available

(Max switching power)20000VA

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: Magnetic Latching Relay 80A  250VAC For Automatic Meter Reading System

Applications: Home appliance, automatic control equipment, industrial equipment power supply, other electronic devices.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Details

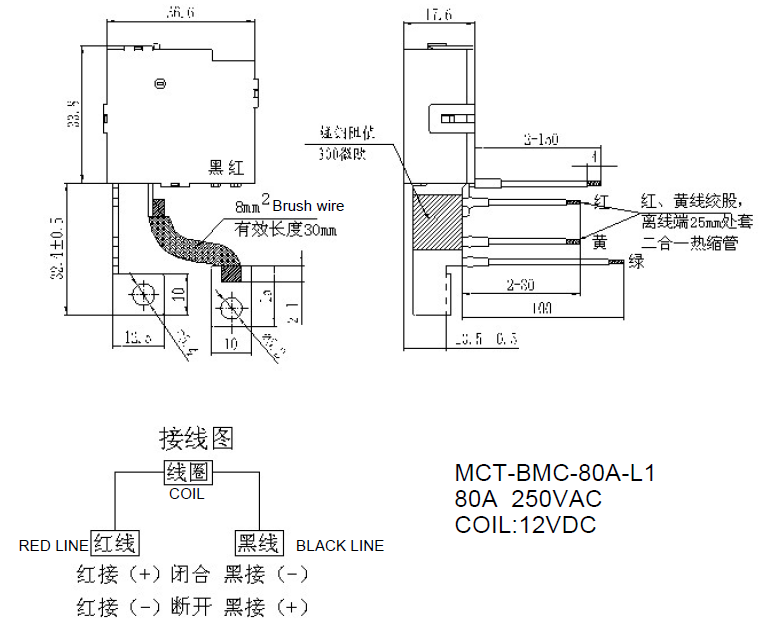

Magnetic Latching Relay 80A specification
