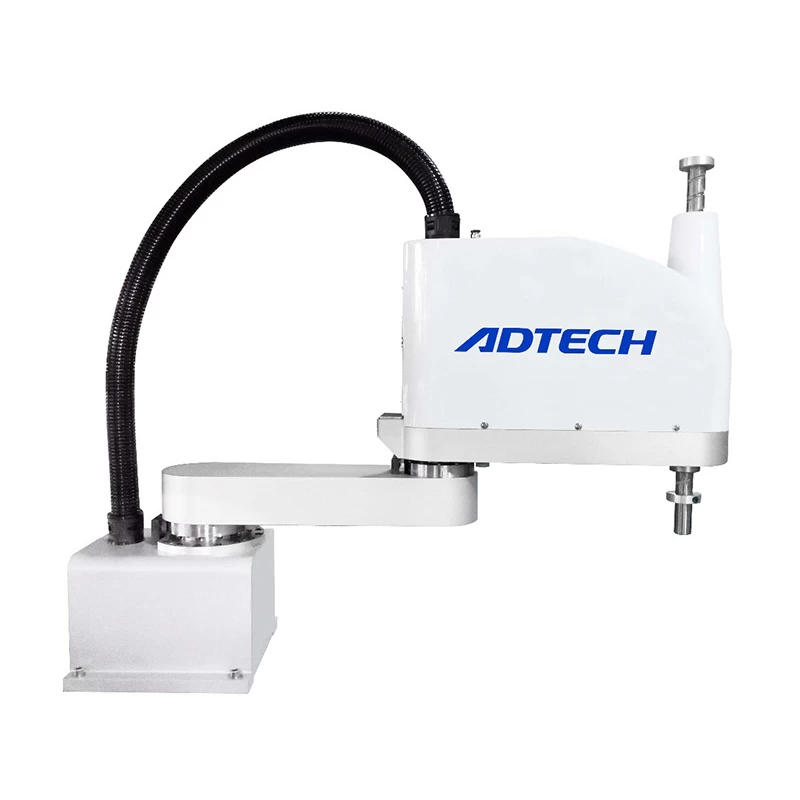

Ｈigh speed and precision SCARA Robot
Specifications:
Programming: AR, G code programming language
Beat fastest speed: 0.38 S
Accuracy: less than 0.02 mm
Application: online speed to follow
Features:
-
Easy operation
-
Best configuration with high performance
-
Long arm length suitable for wide places
-
Max payload 5kgs
-
Fast speed with 0.45S cycle time
-
High precision up to ±0.01mm
Application:
Suitable for PCBA plug,handling,visual sorting,assembling,screwing,loading,transportation,plug-in machine, soldering and other high-precision industries---electronics and food industry.
Performance Benchmark--Parameter:
|
Model name
|
ADT
|
TOSHIBA
|
EPSON
|
YAMAHA
|
|
AR4215
|
THL400
|
LS3-401
|
YK400XG-150
|
|
product features
|
High-speed, high-precision, high cost-effective
|
Low cost, light weight, energy
|
High-speed, high-precision, high cost-effective
|
Cost-effective machine
|
|
Axis specification
|
X axis
|
Arm length
|
200mm
|
225mm
|
225mm
|
250mm
|
|
Rotation range
|
±127°
|
±125°
|
±132°
|
±140°
|
|
Y axis
|
Arm length
|
200mm
|
200mm
|
175mm
|
150mm
|
|
Rotation range
|
±142°
|
±145°
|
±141°
|
±144°
|
|
Z axis
|
Route
|
150mm
|
160mm
|
150mm
|
150mm
|
|
R axis
|
Rotation range
|
±360°
|
±360°
|
±360°
|
±360°
|
|
Highest speed
|
X axis
|
600°/S
|
660°/S
|
|
|
|
Y axis
|
375°/S
|
660°/S
|
|
|
|
X, Y-axis synthesis
|
5.5m/s
|
6.3m/s
|
6m/s
|
6.1m/s
|
|
Z axis
|
1.3m/s
|
1.2m/s
|
1.1m/s
|
1.1m/s
|
|
R axis
|
1667°/s
|
1500°/s
|
2600°/s
|
1020°/s
|
|
Repeat positioning accuracy
|
X, Y axis
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
|
Z axis
|
±0.01mm
|
±0.015mm
|
±0.01mm
|
±0.01mm
|
|
R axis
|
±0.005°
|
±0.007°
|
±0.01°
|
±0.004°
|
|
Standard Cycle Time
|
0.45s
|
0.47
|
0.42s
|
0.49
|
|
Rated / max load
|
2Kg/5kg
|
2Kg/5kg
|
1Kg/3kg
|
5kg
|
|
R axis allows load moment of inertia (Rated / max)
|
0.01 kg·m2
|
0.05 kg·m2
|
0.05 kg·m2
|
0.05 kg·m2
|
|
0.04 kg·m2
|
0.005 kg·m2
|
|
User signal line
|
0.2sq × 16 lines
|
8 inputs / 8 outputs
|
0.15sq×15 lines
|
0.2sq×10 lines
|
|
6 input / 8 output
|
|
Users trachea
|
Ф6×2
|
φ4 ×3
|
φ4 ×1
|
φ4 ×3
|
|
Ф6×2
|
|
Limit protection
|
1, the software limit
|
1, the software limit
|
1, the software limit
|
1, the software limit
|
|
2, the mechanical limit (X, Y, Z axis)
|
2, the mechanical limit (X, Y, Z axis)
|
2, the mechanical limit (X, Y, Z axis)
|
2, the mechanical limit (X, Y, Z axis)
|
|
weight
|
13Kg
|
13Kg
|
14Kg
|
19Kg
|
Moving space:
Selection Highlights:
1. Scope of work: a robot arm length, operating range
2. Load: gripper design, the inertia as low as possible
3. Accuracy: Repeat positioning accuracy
4. The beat of working: Action cycle time, gas consumption time action
5.I / O points: universal input and output points
6. visual package: Static crawl, crawl dynamic
7. Communication: I / O, network, serial
