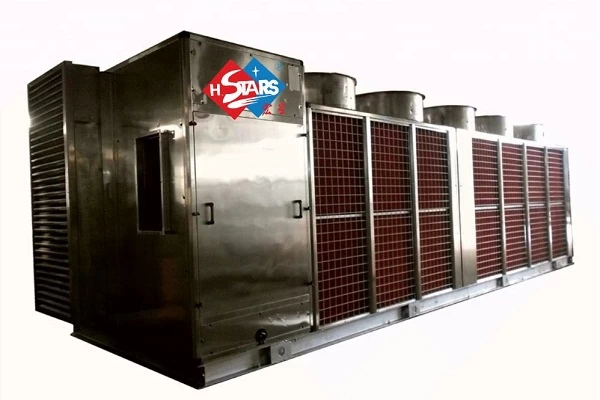

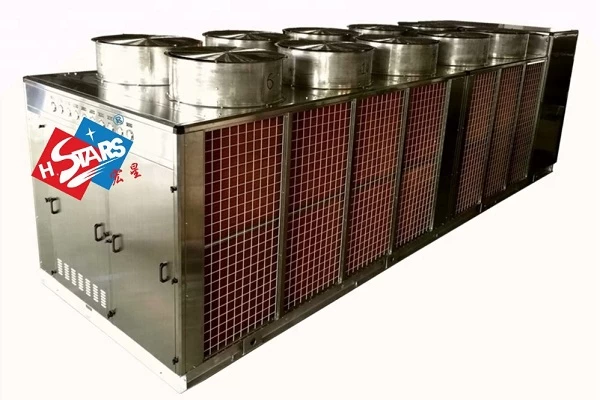

Anti Corrosion Stainless Steel Fresh Air Handling Unit

Main Features

•Large air volume (20000CMH), cooling capacity (80kW)

•Multi-Refrigeration circuits ensure the reliability of unit running, energy saving and lengthen the service life of compressor

•Operation efficiency and energy saving

•Outstanding reliability and performance

•Full automatic Control Box

•Configured flexibly, numerous options for customization

•SS316 Condensing Fans

•SS316 Centrifugal Supply Air Fan

•Cu/Cu V-shape Condenser Coil and Cu/Cu Evaporator Coil

•Wing nut removable service panels

•Shipped in sections or knock down form for renovation work

Detailed configuration

Frame and Structure

• Stainless steel SS316 penta-post frame structure

• Brush surface treatment, with beautiful appearance and corrosion-resistant

Casing Panel and Insulation

• Double skin construction is provided by sandwich type  panels comprising inner and outer stainless steel SS316  skins and polyurethane foam with minimum 48kg/m3  density, providing a good thermal and acoustical  performance
• The airtight materials between the panels and frame  ensures the air leakage rate to comply with GB/T 14294  clean air conditioning requirement
• Galvanized steel sheet and painted steel sheet available

Famous Brand Blower and Motor

• Fan selection based on the air flow and air static  requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve  centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55  protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option

Vibration Eliminator

• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame

• The complete base frame is isolated by deflection type spring isolators

• This unique structure not only reduce the vibration and noise, but also protect fan and motor during transportation

High Efficiency Cooling and Heating Coil

• All coils calculation and selection is done by selection  software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
   -Cooper tube with cooper fins coil
   -Epoxy coated fins coil
   -Electrophoresis fins coil
   -Heresite coated coil

Stainless Steel Drain Pan

• Slop type design, no drain water carryover
• Avoid the micro-organisms growth inside the drain pan

Antimicrobial Drain Pan is offered as option
• SteriTouch technology Drip Pan Coating
• Antimicrobial surface
• Good exterior durability and corrosion resistance
• Non-toxic, comply with BS476 part 7

AUTO control panel--
With large machine data.
Easy to check the running situation.

All kinds of gauge--

Convenient to check the differential pressure of filter net
