Our common mode choke coils with phenolic base mainly used in electronic devices EMI radiated noise suppression, common mode filter, toroidal inductor, high frequency transformer, etc. we accept custom made.
Quick Details
|
Part Number: MCT B25V with Base Series Common Mode Choke
|
|
Brand name: MCT
|
|
Type: Choke Inductor, High requency
|
|
Custom made: Available
|
|
Testing frequency: 1KHz/0.25V
|
|
Logo: Can be customized
|
|
Operating temperature:-40°C~+105°C.
|
|
Shipping: Air, Ship, etc
|
|
Certification: ISO9001,ROHS,CE
|
|
MOQ: Any quantity
|
|
Lead time: 25 days after payment
|
|
OEM: Available
|
Part Information

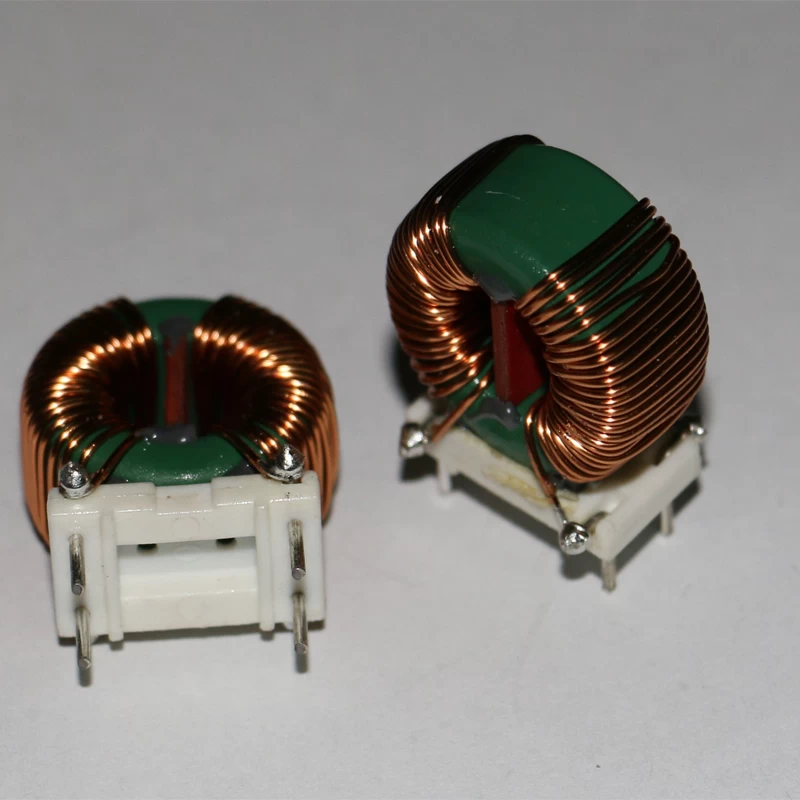

Product Name: B25V Common Mode Inductor Choke Coils with Base
Applications: Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Typical electrical parameter
|
MCT Part No.
|
Inductance(mH) min
|
DC Resistance(Ω)max
|
Rated Current(A)
|
|
MCTB25V333A15
|
33.0
|
0.40
|
1.5
|
|
MCTB25V223A20
|
22.0
|
0.25
|
2.0
|
|
MCTB25V103A25
|
10.0
|
0.15
|
2.5
|
|
MCTB25V682A30
|
6.80
|
0.10
|
3.0
|
|
MCTB25V392A40
|
3.90
|
0.05
|
4.0
|
|
MCTB25V332A50
|
3.30
|
0.04
|
5.0
|
|
MCTB25V222A90
|
2.20
|
0.02
|
9.0
|
|
MCTB25V102AE0
|
1.00
|
0.01
|
15.0
|
|
MCTB25V681A14
|
0.68
|
0.006
|
20.0
|
We can decign it.If you have any requests, please contact us, we will give you fast reply
