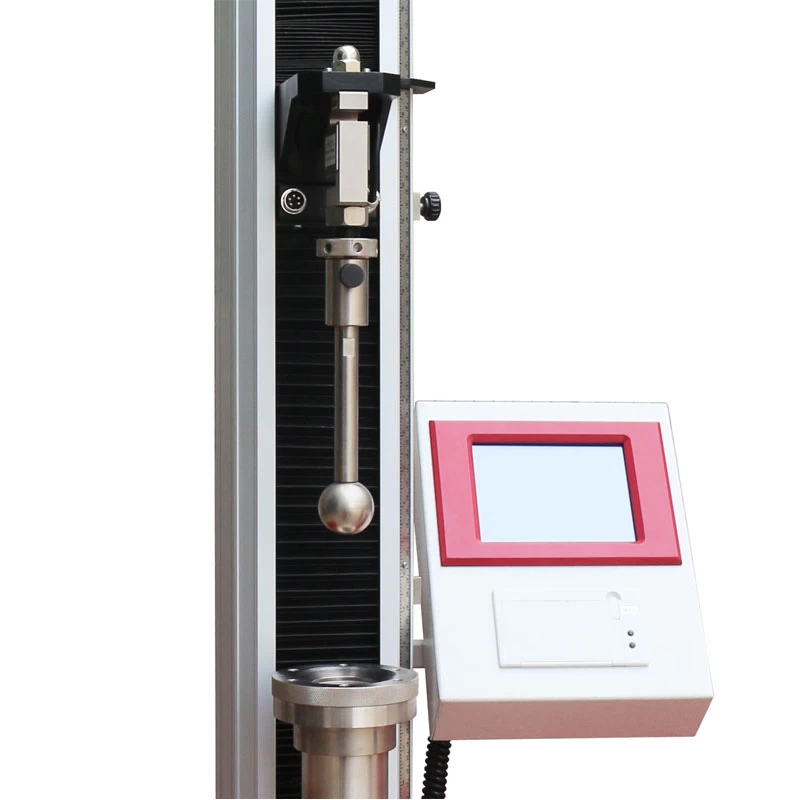

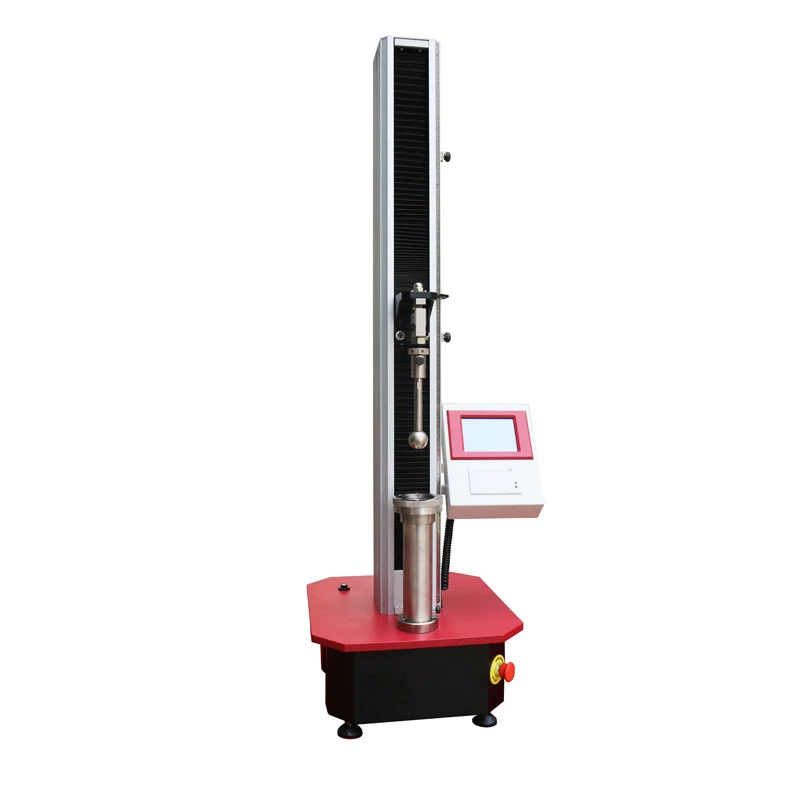

AG02-3-Ball Burst Strength Tester
Application Of Ball Burst Strength Tester
Ball Burst Strength Tester is used to testing the impact strength and expansion of marbles for cotton fabrics, elastic fabrics and socks and gloves.
Feature Of Ball Burst Strength Tester
-
Computer operations, reports, curves, graphic statistics results, intuitive and clear.
-
DC servo drive , wide range of speed setting.
-
CRE principle, microprocessor control.
Standards Of Ball Burst Strength Tester
GB/T 19976, FZ/T 01030, FZ/T 60019, ASTM D3787, ASTM D6796, EN12332-1
Key Specification Of Ball Burst Strength Tester
|
Model
|
AG02-3 Ball Burst Strength
Tester
|
|
Test force range
|
2500N, (1%～100% of full range)
|
|
Force
accuracy
|
±0.2%F.S
|
|
Test speed
|
5-500mm/min
|
|
Maximum
drop range of ball
|
120mm
|
|
Fixture
diameter
|
Φ45mm
|
Φ25mm
|
Φ45mm or Φ25mm
|
|
Φ25mm
|
Φ20mm
|
Φ25mm
|
|
Test
Standard
|
GB/T 19976
ASTM D 3787
|
FZ/T 60019
FZ/T 01030
|
EN12332-1
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
50*50*120cm
|
|
Weight
|
100kg
|
