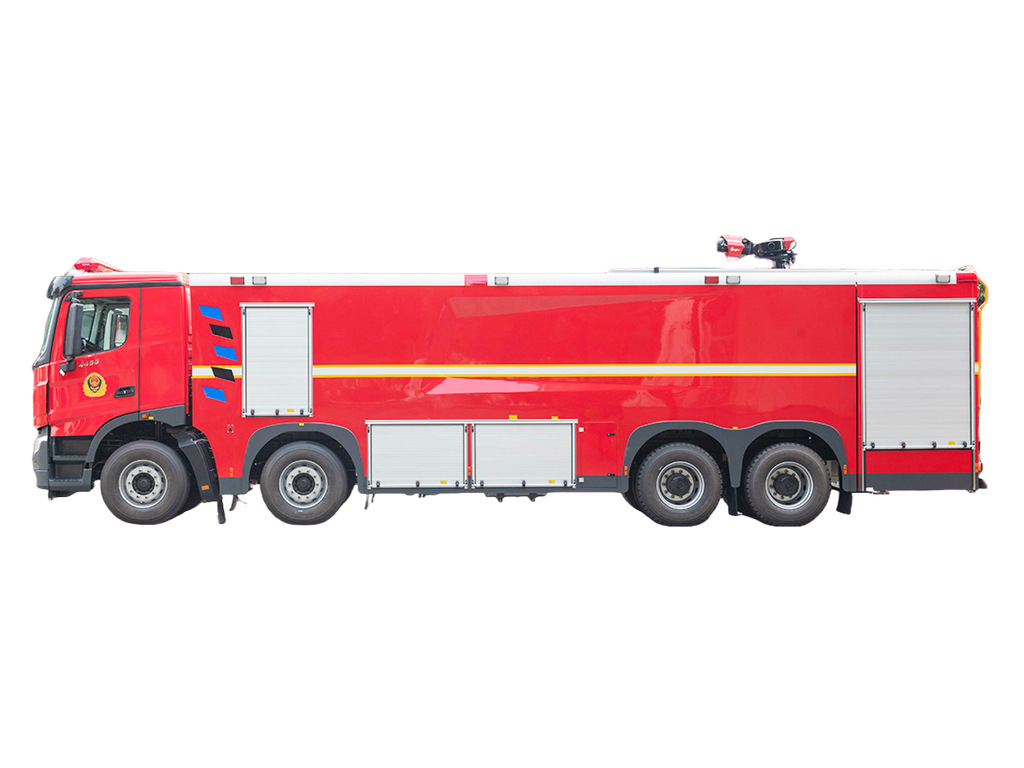

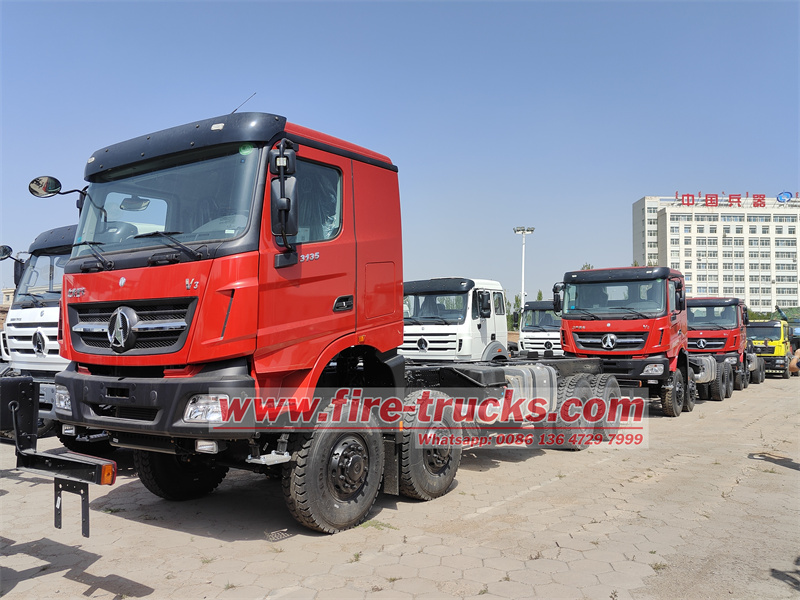

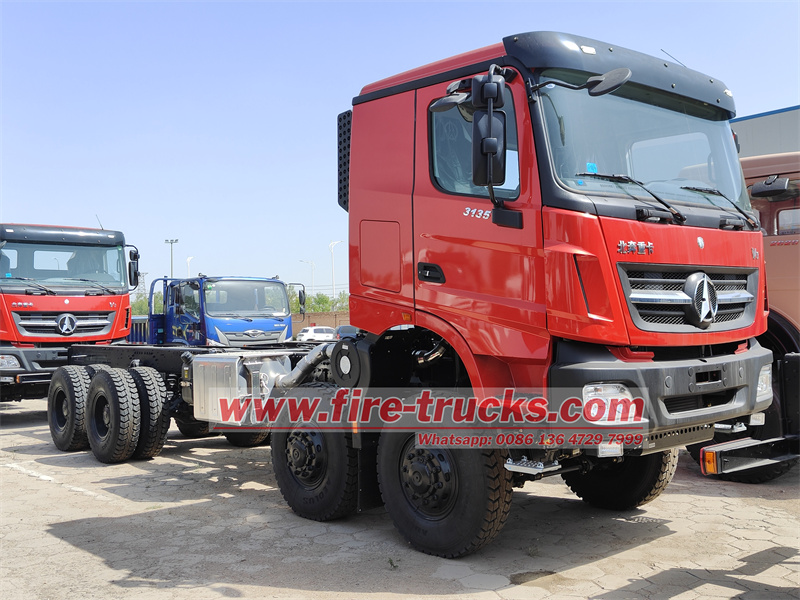

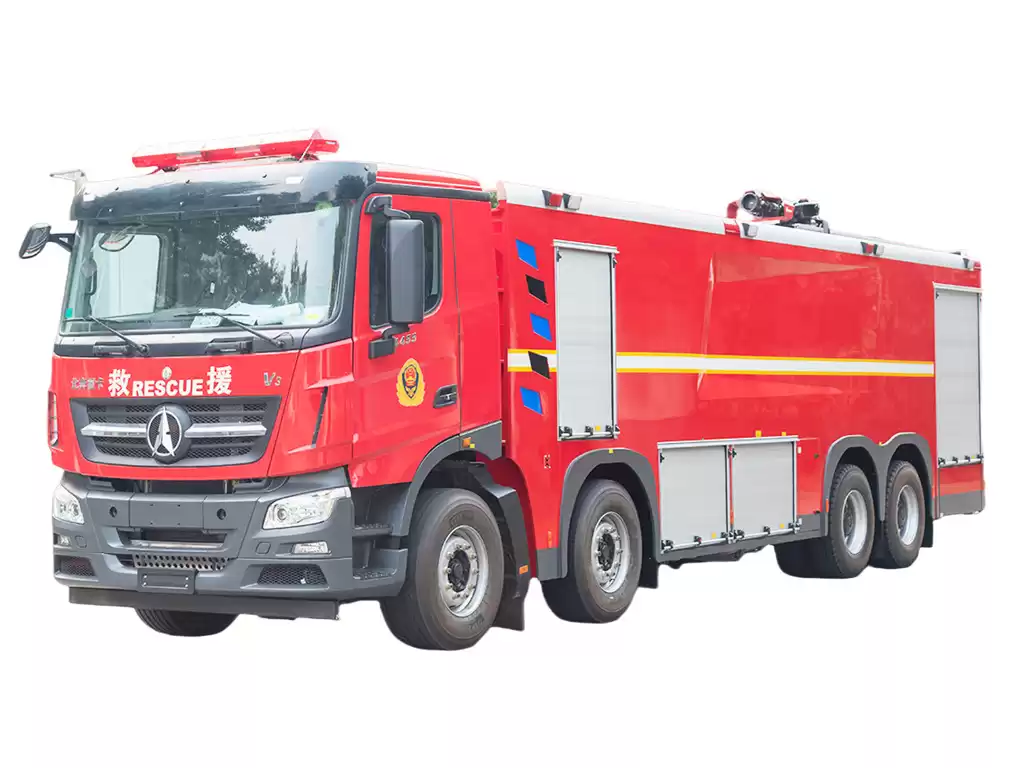

Brand newly designed 24 ton China North Benz foam tender fire truck produced by POWERSTAR TRUCKS is a formidable firefighting apparatus, boasting the robust BEIBEN 4142 truck chassis as its foundation. At its core, the BEIBEN 4142 heavy duty foam fire truck is equipped with Weichai WP12.420E32 diesel engine with power 308KW/420HP, matched with FAST manual transmission, 8×4 drive form and optional as Beiben 8x8 offroad fire engine, with high load capacity and offroad performance, designed total mass of 41 tons, can carry 31 tons of fire-fighting upper equipment, including large water tank and foam mixing systemengineered with precision, incorporating top-of-the-line components such as Top 1 Chinese brand CB10/80 model fire pump with flow rate 80Liter per second and WESTER PL80 model fire monitors. These cutting-edge features empower it to tackle the most demanding fire scenarios with finesse.
Beiben V3 new type fire tender loaded with a substantial 24 tons of firefighting fluid, comprising a 20 tons water tank and 4 tons foam tank, all used Stainless steel #304 material, thickness can be 5mm, this 24 tons China Benz foam tender fire truck stands ready to combat blazes of any scale. It can use water or foam to extinguish fires independently or in combination, and is suitable for extinguishing flammable liquid or gas fires such as petroleum, chemical, and electricity. Beiben fire truck versatility is further highlighted by an crew room that accommodates up to 4 individuals comfortably, fostering efficient coordination and response during emergencies, which suitable for air apparatus storage and usage.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Designed as a comprehensive firefighting solution, the Beiben 4142 heavy duty apparatus fire department truck integrates water supply, foam supply, CAFS mixing liquid supply and fire extinguishing functions seamlessly. Its capacity for low-pressure, high-flow combat makes it adept at handling firefighting duties in diverse environments, including urban areas, mines, factories, docks, and warehouses. Moreover, Beiben tanker fire truck adaptability extends to high-rise firefighting operations, where it can be coupled with high-rise fire trucks to address the unique challenges effectively posed by tall structures.
The 24 ton North Benz heavy duty 12 wheelers foam tender fire truck represents the pinnacle of firefighting technology, engineered to meet the evolving demands of modern fire suppression efforts. Whether quelling infernos in bustling cityscapes or navigating complex industrial settings, this fire engine stands as a stalwart guardian against the ravages of fire, safeguarding lives and property with unwavering efficiency and effectiveness.
The Whole Beiben V3 heavy duty 4142 Fire Fighting Truck detailed description as below:
1.1 Model: PT5410GXFPM24

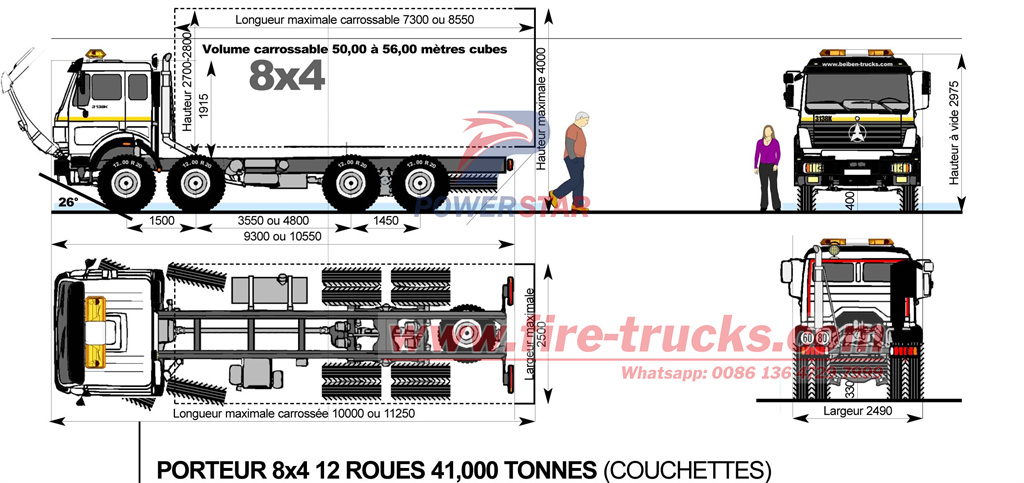

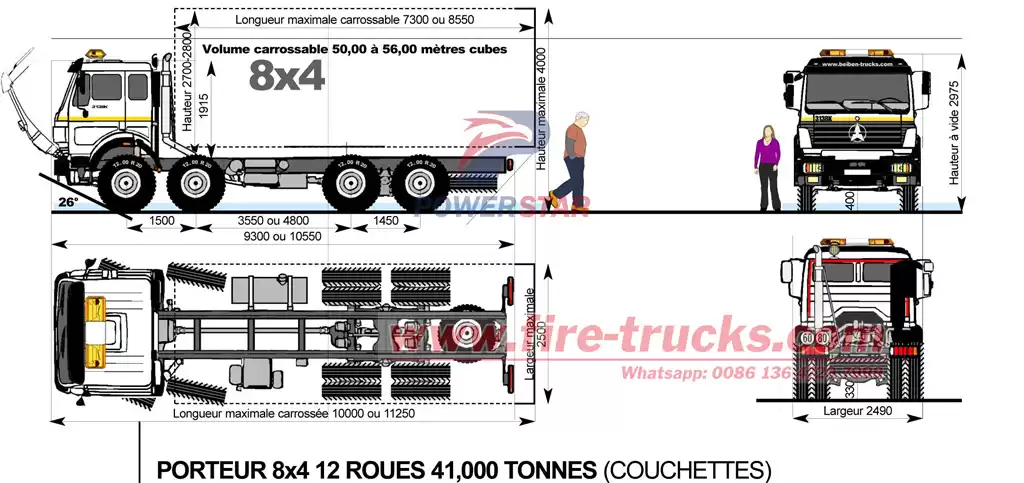

1.2 Dimension: 11500mm×2550mm×3850mm
1.3 Full Load Weight: 41000kg
1.4 Number of the Crew:6
1.5 Max. Speed: 90km/h
1.6 Capacity: Water tanker 20m³ & Foam tanker 4m³

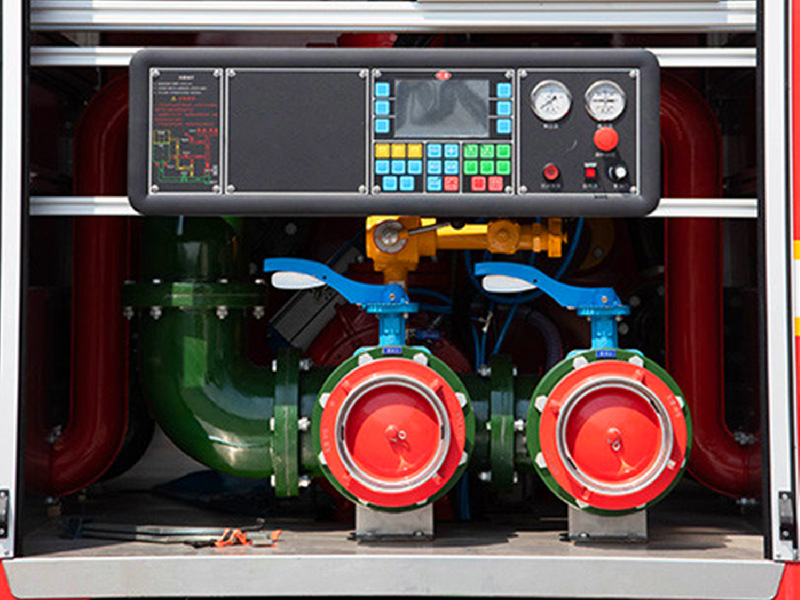

1.7 Fire Pump：CB10/80
1.8 Fire Monitor: PL80
1.9 Fire Rescue Equippment: Full sets
2.1 Four-door double cab
2.1.2 Seats：2+4, with 3-point safety belt, and rear parts with 4 SCBA seats
2.2 Standardized Sub-frame
2.2.1 Material High-strength rectangular tube made of special steel
2.2.2 Performance The liquid tank and the sub-frame are connected by elastic connecting seats
2.3 Compartment
2.3.1 Material High-strength aluminum alloy profiles (Never Rust)

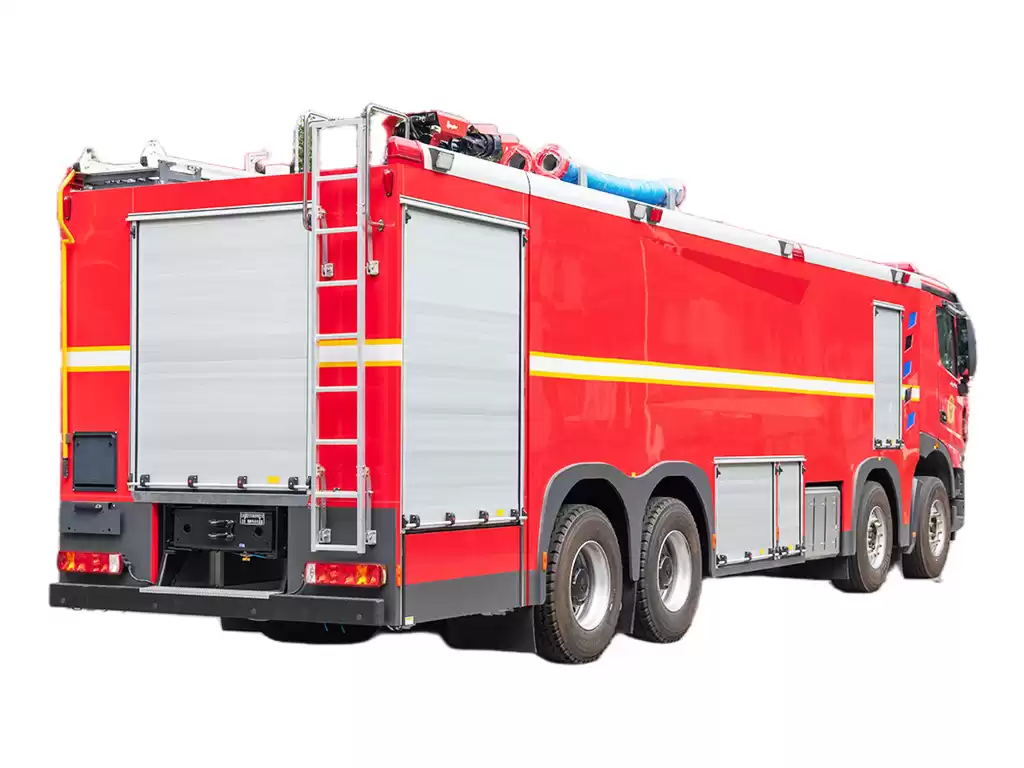

2.3.2 Structure Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
2.4 Roller Shutter Door
2.4.1 Material Aluminum alloy profiles with anodized surface
2.4.2 Structure With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
2.5 Foot Pedals
2.5.1 Material of Pedals High quality aluminum alloy
2.5.2 Structure 50cm width, bear more than 150kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
2.6 Superstructure Electric Appliance
2.6.1 Warning Light and Siren Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
2.6.2 Strobe Light Mounted on the both sides of the compartment
2.6.3 External Lighting LED lights are mounted on the both sides of the compartment
2.6.4 Roof Lighting LED lights are mounted on the inside of the roof
2.6.5 Side Indicator Light Inline yellow warning light is mounted on the side of the compartment and pedals
Significance for Beiben V3 heavy duty 12 wheelers 4142 Foam Tanker Fire Truck for Africa DRC Congo:
The Democratic Republic of the Congo also named DRC Congo, which is one of the most resource rich countries in Africa, but it has long been plagued by weak infrastructure and security issues. However, the Beiben new V3 heavy-duty 8x4 water tank foam fire truck is not only a technologically advanced firefighting equipment, but also a symbol of deepening cooperation between China and the DRC Congo. Its deployment will directly enhance local emergency response capabilities, ensure the safety of whole country projects, and indirectly promote regional stability and sustainable development, providing a model for the modern governance of resource-based countries in Africa.
1. Improving emergency rescue capabilities
There are great fire hazards in mining areas and cities in the eastern part of the Democratic Republic of the Congo, especially in areas where mineral mining and chemical facilities are concentrated. The large capacity water tank and foam system of the Beiben fire engine can effectively respond to oil and mine fires, reducing economic losses and casualties caused by fires, also the Beiben fire truck can be mounted with CAFS fire rescue system, this can make fire extinguishing ability increase 50%. The Congo country's fire protection system is backward and lacks modern equipment. The deployment of such specialized China North Benz 4142 fire trucks can make up for the shortcomings of public safety and enhance the government's response to emergencies.
2. Support Chinese-funded enterprises and resource development
The DRC Congo is a key area for Chinese-funded enterprises to invest in minerals such as cobalt and copper, but the safety risks in mining areas are high. The Beiben V3 foam fire trucks can provide localized fire protection for Chinese-funded projects, reduce operational risks, and safeguard China's economic interests in the Democratic Republic of the Congo. Its high reliability design adapts to the harsh road conditions and climatic conditions in Africa, ensuring stable operation in remote mining areas. Moreover, the customized Beiben V3 offroad type 8x8 fire fighting trucks mounted with CAFS system can make truck an ideal fire pumper for all kinds of fire extinguishing.
3. Promote China-Africa cooperation and regional stability
Through equipment assistance and technical support, such as Beiben 6x4 fire department truck, Beiben 8x4 V3 foam tanker fire truck, China helps the Democratic Republic of the Congo improve its infrastructure and enhance its independent security capabilities, which is in line with the production capacity cooperation and people's livelihood improvement goals of the "Belt and Road" initiative. The Beiben fire engine have grately improveed the firefighting capabilities of Congo, and will help reduce social unrest caused by fires, and indirectly promote political stability and foreign investment attraction in the Democratic Republic of the Congo.
4. Promote environmental protection and sustainable development
The Beiben 24tons foam fire truck mounted with CAFS extinguishing system, which can reduce water consumption and is more practical in some arid areas of the Democratic Republic of the Congo. The National 3 emission standard is in line with the global environmental protection trend and supports the Democratic Republic of the Congo to balance ecological protection and economic development in resource development, also can normally meed to emission requirement to avoid driving problem.
