Quick Details
|
Part Number:
CUT Series Ferrite Core
|
Brand Name:
MCT
|
|
Material:
Mn-Zn/MP4/M5P /M7P/M10P
|
Logo: Can be
customized
|
|
Core Type:
Power core
|
OEM:
Available
|
|
Features: High
inductance, low loss core, small size
|
MOQ: Any
quantity
|
|
Packing:
Carton, can be customized
|
Custom Made:
Available
|
|
Lead Time:
25 days after payment
|
Certification:
ISO9001,ROHS,CE
|
Part Information
Product Name: CUT Mn-Zn Ferrite Core for High Efficiency
Sensor, Power Conversion Transformer
Product Features: High-frequency
and low power loss, High Q value and high permeability, High saturation flux
density, Suitable for producing transformers and chokes.
Product Applications: Switching
Power Transformer,Carrier Filter, Reactors,
Current transformer, High Efficiency Sensor, Power Conversion Transformer.
Advantages: We are professional factory, skilled at
producing and designing electronic transformers, filter inductors, choke coils,
bobbins, relays, magnetic cores and other magnetic components Our Factory is made up of 500 people, huge output can be
finished every day. We have a technical team consist of 5 experienced
engineers. All materials are environmental protected. We accept
custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for
standard parts.
Shipping Details: By air, By ship, etc.
Product Details

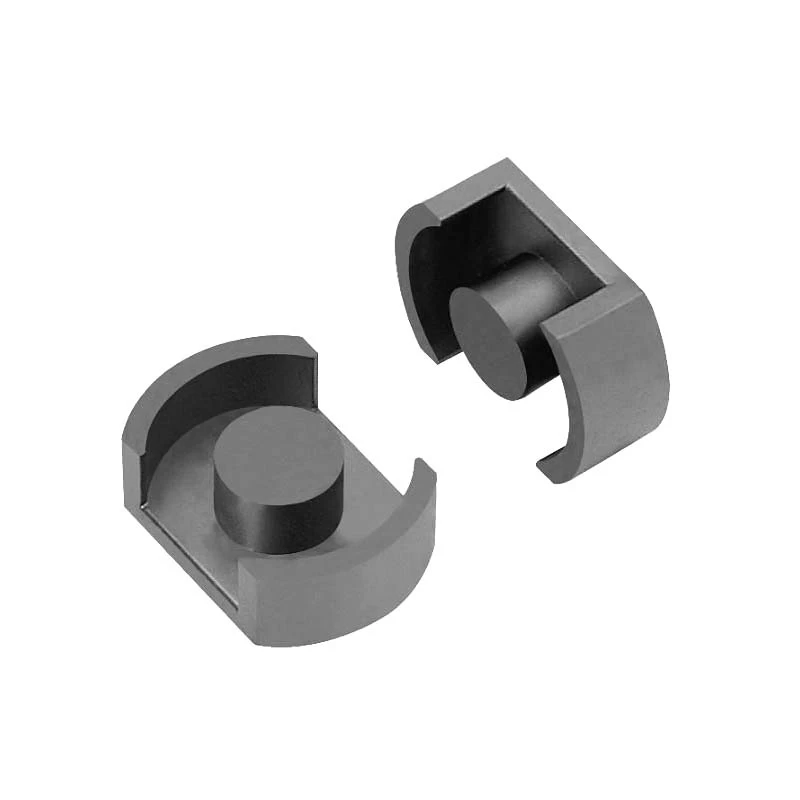

CUT Series Magnetic Core,Mn-Zn MP4 Soft Electronic Transformer Ferrite Core
|
TYPE
|
Dimension:mm
|
Weight:g
|
|
A
|
B
|
H1
|
H2
|
D
|
D1
|
D2
|
D3
|
|
C14×8
|
9.55±0.15
|
7.6min
|
4.18±0.08
|
2.7min
|
14.0±0.25
|
11.6min
|
5.99max
|
3.1±0.07
|
2.8
|
|
C18×11
|
12.2-0.65
|
9.8
|
5.8-0.3
|
3.6+0.4
|
18.8-0.3
|
15.1+0.8
|
7.6-0.5
|
2.9+0.3
|
6.4
|
|
C22×13
|
15.2±0.25
|
10.5
|
7.0-0.3
|
4.6+0.4
|
22.4-0.12
|
18.1+1.0
|
9.4-0.5
|
4.3+0.4
|
12.0
|
|
C30×19
|
20.3±0.3
|
12.5
|
9.4±0.1
|
6.6±0.1
|
20.0±0.5
|
25.4±0.4
|
13.3±0.2
|
5.55±0.15
|
29.0
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±25%）
|
|
C1
(mm-1)
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
C14×8
|
0.91
|
23.2
|
21.2
|
492
|
2500
|
|
|
|
|
C18×11
|
0.67
|
40.6
|
27.2
|
1110
|
4800
|
|
|
|
|
C22×13
|
0.47
|
61.0
|
28.6
|
1740
|
4500
|
|
|
|
|
C30×19
|
0.347
|
128.1
|
44.4
|
5688
|
6000
|
|
|
|
