ED Series Ferrite Core for Switching Power Transformer

ED series ferrite core has high frequency and low-loss. Mainly for switching transformers, choke inductors, pulse transformers. ED power core materals: MP4/M5P /M7P/M10P



Quick Details

Part Number: ED Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/MP4/M5P /M7P/M10P

Logo: Can be customized

Type: Power core   Phase: single

OEM: Available

Features: High inductance, low loss

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: ED Series Ferrite Core for Switching Power Transformer

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: Switching Power Output Transformer. FBT pulse transformers, driving transformers. Choke inductor. DC/DC converters.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.



Product Details

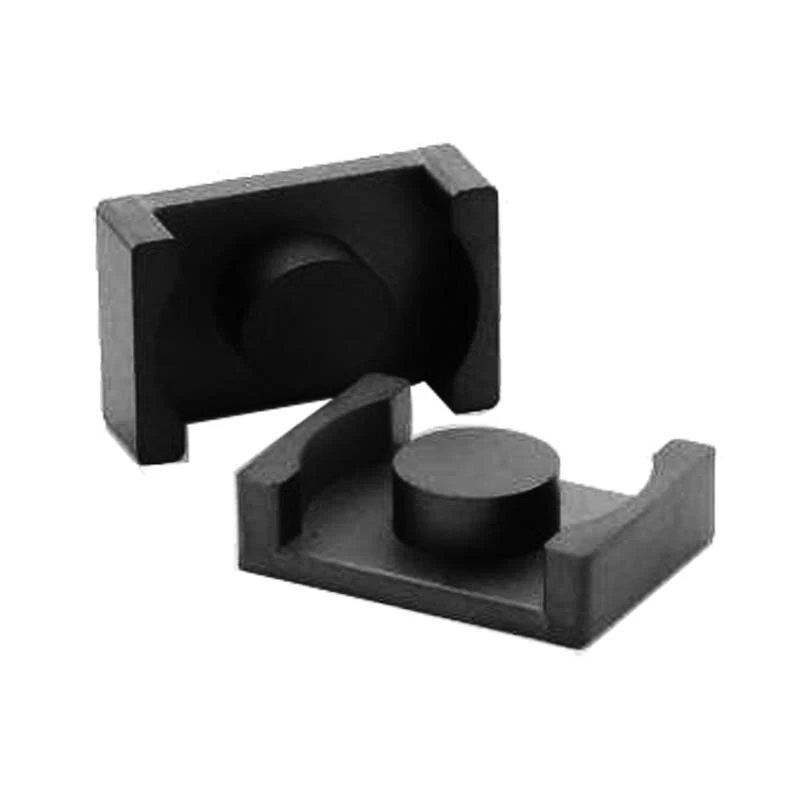

Top selling ED series transformer ferrite core, power ED core


TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

ED28

28.0±0.5

20.4±0.3

11.9±0.2

20.5

8.5±0.2

13.3±0.25

23

ED29

29.3±0.5

29.2±0.3

11.6±0.2

21.6

8.4±0.2

22.0±0.25

29

ED33

33.3±0.5

21.4±0.3

11.6±0.2

25.6

8.4±0.2

14.2±0.25

25

ED42

42.0±0.5

44.0±0.4

13.5±0.3

29.0

13.5±0.3

30.0±0.4

85


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

ED28

0.59

86.1

50.5

4350

3600

ED29

0.84

83.1

69.5

5770

2900

ED33

0.69

84.4

57.9

4887

3000

ED42

0.578

165.0

95.4

15741

3700
