<50nm Diameter High Dispersed Silver Nanowires

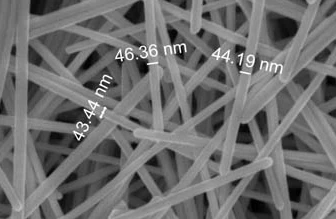

Specification: Diameter < 50nm, Length > 20 um , Color silver gray

other available specification:

1. Silver nanowires agnw, Diameter < 30nm, Length > 20 um , Color silver gray

2. Silver nanowires agnw, Diameter < 100nm, Length > 10 um , Color silver gray

Product features of silver nanowires

 Silver nanowires powder with high specific surface area, electrical conductivity, thermal conductivity, high dispersed properties

1 Ag Nws could cause the surface plasma effects: surface plasmon refers to the metal surface of the free vibration of the electrons and photons interact to produce the electron density of wave propagation along the metal surface.

2 Silver are good conductors of electricity, its low resistivity, high electrical conductivity, nano silver wire was applied to the current conductive layer will collect the export, compared with the TCO semiconductor can reduce the loss.

3  If use nano silver particle size is smaller than the incident wavelength of visible light, can make the silver wire arrangement is very intensive, the technology can increase the collector area of the solar cell silver electrode. And do not block light through, at the same time, also can use light diffraction features, fully absorb light energy.

Main application of Silver nanowires

1. Ag nanowire is good alternatives to traditional ITO transparent electrode materials

2. Bend the LED display and touch screen could use silver nanowire

3. Excellent Ag Nws is good for the thin film solar cells

4. Silver nanowires with large length to diameter ratio effect, in the aspects such as conductive adhesive, thermal plastic also has a prominent advantage of the application

5. The application of more mature - transparent nano silver film, a new kind of transparent conductive body: embedded in a transparent polymer nano silver thin
