DIP Ferrite Drum Core Inductor Radial Leaded Inductor DR Series

Pin leaded inductor with ferrite drum cores. Low DCR, large current, high saturation current, best for the power supply line, wide range of inductance and high power. Small mounting space required. Operating temperature range: -25 to +120°C.



We manufacture high quality coil products, our DIP drum core inductor mainly used for noise filter, motor controller and switching power supply. We have materials in stock, we can provide 3-5pcs free samples in 5 days. Custom design also acceptable.


Quick Details

Part No: DIP Drum Core Inductor Dimension

Brand name: MCT

Winding: We can design

Custom made: Available

Type: Fixed Inductor

Logo: Can be customized

Packing: Carton, can custom

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available


Part Information

Product Name: DIP Ferrite Drum Core Inductor Radial Leaded Inductor DR Series

Applications: DC-DC converter, OA equipment, notebook computer, small size communication equipment, digital camera.

Features: High power inductors are superior to be high saturation for surface mounting.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray.

Advantages: low cost, high reliability, low DC resistance, high saturation current.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

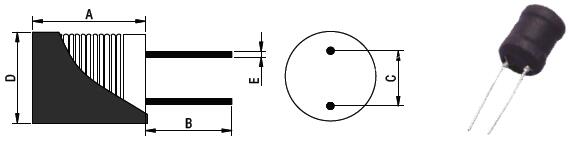

Product External Dimension

Drum core inductor size

PART NO.

A MAX

B Min

C

D

E

MCTD 0406

8.0

10.00

2.0±0.5

5.50

0.50

MCTD 0507

9.0

10.00

2.5±0.5

6.00

0.60

MCTD 0608

10.0

10.00

3.0±1.0

7.50

0.60

MCTD 0810

13.0

10.00

5.0±1.0

10.00

0.60

MCTD 0912

15.0

10.00

5.0±1.0

11.00

0.70

MCTD 0808

9.5

10.00

6.0±1.0

10.00

0.60

MCTD 1008

9.5

10.00

6.0±1.0

11.00

0.80

MCTD 1010

13.0

10.00

6.0±1.0

11.00

0.80

MCTD 1012

15.0

10.00

6.0±1.0

11.00

0.80

MCTD 1016

18.0

15.00

6.0±1.0

11.50

0.80

MCTD 1216

18.0

15.00

9.0±1.0

13.00

0.90

MCTD 1415

17.0

15.00

11.0±1.0

15.00

1.00


If you have any request, please contact us, we will give you fast reply.
