DIP High Current Inductors for EMI Filters

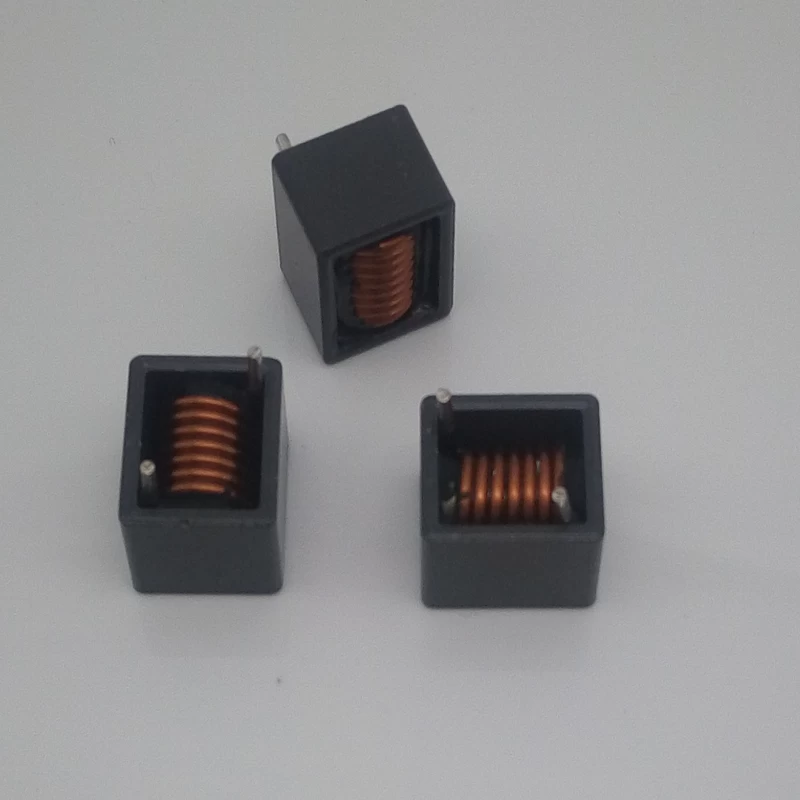

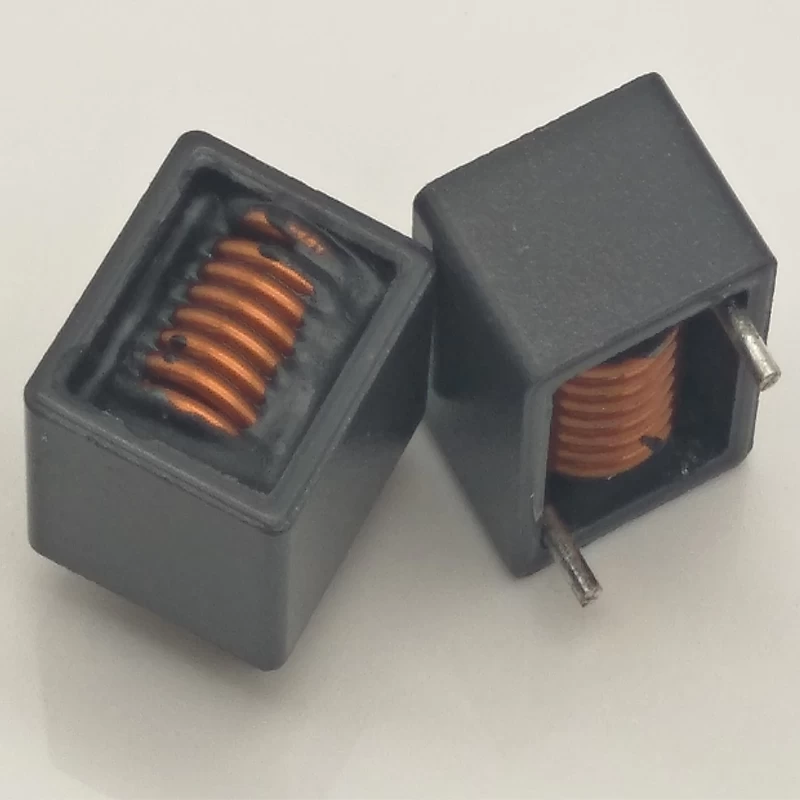

MCTLB series DIP type large current inductor with shielded construction, has very low DC resistance, easy customized, high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)



DIP type large current inductors with magnetic shield structure, have strong electromagnetic interference (EMI) resistance and vertical design. Our DIP type high current inductor mainly used in switching power suppliers, DC-DC converters, high frequency SMP, EMI filters, computers, digital cameral and other consumer electronic products. DIP large current inductor materials we used are all lead-free products and RoHS compliant. MCTLB series high current DIP type inductor are our new design inductors, we also accept custom design.


Quick Details

Part No: MCTLB Series High Current DIP Type Inductor

Brand name: MCT

Inductance at IDC is a typical value for the component taken at IDC

Custom made: Available

L0 test condition: 100KHz/1.0Vrms, 0ADC

Logo: Can be customized

Testing ambient temperature is referenced to 25°C

Packing: Carton,can custom

Operating temperature range: -40°C~+120°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: DIP High Current Inductor for EMI Filters

Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters,Automotive electronics.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging, is helpful for protection of high current inductor product performance. )

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.


Product Details

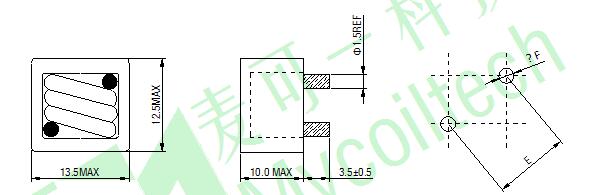

Mechanical dimension: Unit: mm

 High current inductor DIP type inductor

Electrical Characteristics:

MCT PN

L(0A)

uH±20%

DCRmΩ)

max

Lrms

uH±20%

Irms

A

Isat

A

E

F

MCTLBR47M

0.47

0.85

(Typ 0.75)

0.45

40

54

10.0±1

1.7±0.1

MCTLBR60M

0.60

0.85

(Typ 0.75)

0.55

40

50

10.0±1

1.7±0.1

MCTLBR80M

0.80

0.85

(Typ 0.75)

0.68

36

40

10.0±1

1.7±0.1

MCTLB1R0M

1.00

1.30

(Typ 1.15)

0.94

34

38

10.2±1

1.5±0.1


Note:

1.L0 test condition:100KHz/1.0Vrms0ADC

2.Inductance at IDC is a typical value for the component taken at IDC

3. Heating current will cause an approximate ΔT of 40°C without core loss

4. Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature

5. Testing ambient temperature is referenced to 25°C

6.Operating temperature range -40°C~+120°C
