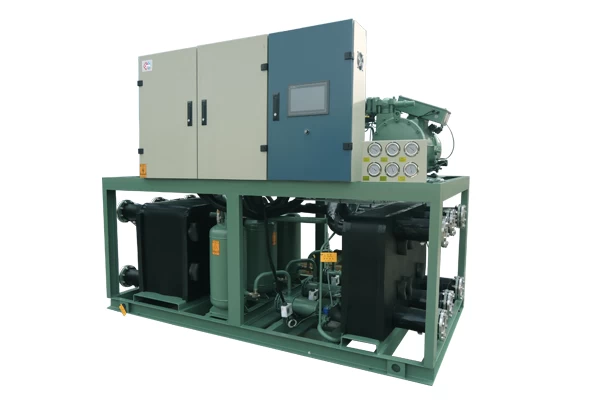

Dry Screw Water Source Heat Pump Unit

Industrial dry type screw water source heat pump unit can meet the needs of winter heating and summer cooling through advanced water source heat pump central air conditioning system. Besides,there is no need for boiler room system for heating, no cooling tower is needed for cooling, and no pollution or emission is realized during use.



Industrial dry screw water source heat pump unit


Introduction:Industrial dry screw water source heat pump unit  is based on water energy and meets the needs of winter heating and summer cooling through advanced water source heat pump central air conditioning system. The system is approximately 50% energy efficient compared to conventional air conditioning heating systems.

Brand: H.Stars

Applications: hotels, hospitals, sauna bath centers, factories and other areas.



Dry Screw Water Source Heat Pump Unit



Technical Parameters:

Cooling range 98kw ~ 7931kw Heating range 119kw ~ 9142kw

Application areas include Hotels, hospitals, sauna bath centers, factories and other areas.


Unit features:

1. The water source heat pump system can be cooled and heated, and one machine can be used for multiple purposes: one system can replace the original two sets of devices or systems of boiler and air conditioner: it saves a lot of energy and also reduces the initial investment of equipment.



2. There is no need for boiler room system for heating, no cooling tower is needed for cooling, and no pollution or emission is realized during use.



3, the unit energy efficiency ratio is high. 1KW of energy can be used for heating and cooling in the area of 6-10 square meters, which is 30%-80% more energy efficient than a central air conditioner.



4. The constant temperature of the water body makes the heat pump unit run more reliable and stable, ensuring the system's high efficiency and economy without special maintenance or operation, and running and maintenance costs are minimal.



5, each thousand square meters of buildings with large units of machine room area of 30-40 square meters, box units can be placed on the balcony or small storage room.



6, all air-conditioning systems have micro-computer precise control, the host and the circulation pump, submersible pump and other ancillary equipment are connected to the network, the user can independently charge, independently adjust the water temperature, room temperature, adjust the start-stop time or remote monitoring.


H.stars Group Profile



Economic Benefit Analysis of Water Source Heat Pump:

Comparative economic analysis of operating costs

Equipment name Function One-time input from the main unit Attachment and installation End equipment cooling operation fee Heating operation fee Annual maintenance fee Total

Air-cooled heat pump Hot and cold type 285 20 120 34.5 30 3 492.5

Lithium bromide unit Hot and cold type 290 20 120 52.5 45 5 532.5

Water source heat pump cold and hot type 100 20 120 10.5 12 1 263.5

Heat recovery water source heat pump Cooling and heat recovery type 115 20 120 10.5 12 11 275.5

Note: 1. The running time of the equipment is calculated according to 150 days in summer and 120 days in winter, and 12 hours per day.



2. The electricity fee is 0.7 yuan/kWh, the fuel is 6 yuan/kg, and the gas is 3.5 yuan/m3.
