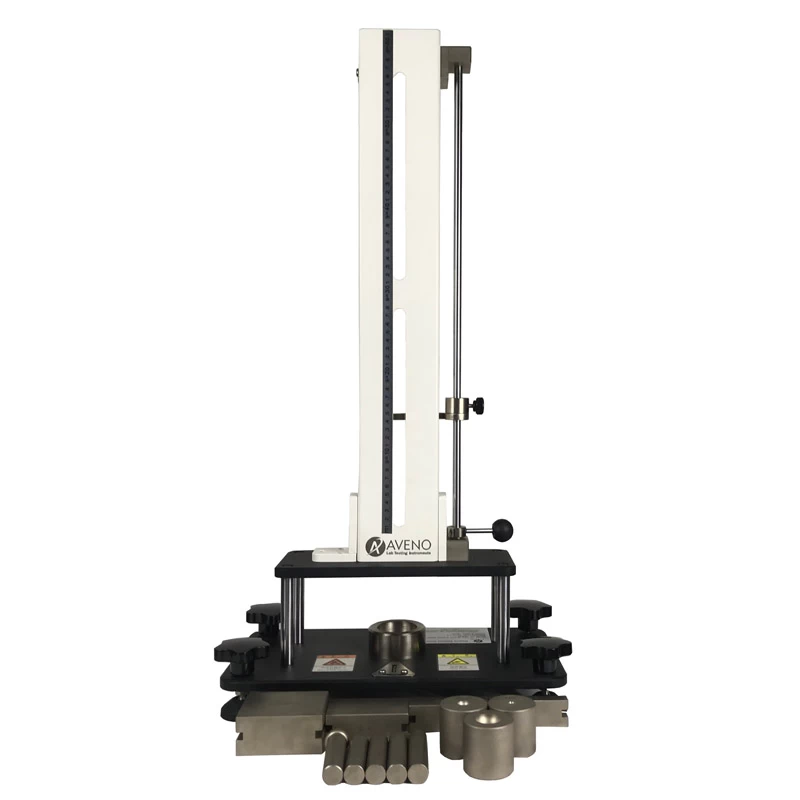

AF38-Dupon Impact Tester
Application Of Dupon Impact Tester
Dupon Impact Tester is used to inspect the impact resistance of plastic test pieces, PVC test pieces and paint test pieces. Put the test piece under the collision head of the machine and check the damage, deformation or peeling after hitting with a heavy hammer of a certain height.
Feature Of Dupon Impact Tester
-
This machine structure is suitable for multi-national standards. Just need to select the corresponding impact head according to different test requirements.
-
One spare hitting rod will be delivered together with the machine.
Standards Of Dupon Impact Tester
JIS K5600-5-3, ASTM D2794-1993, JIS K5400-1990
Key Specification Of Dupon Impact Tester
|
Model
|
AF38-1
|
AF38-2
|
|
Sample
material
|
plastic test pieces
|
paint test pieces
|
|
Drop
height
|

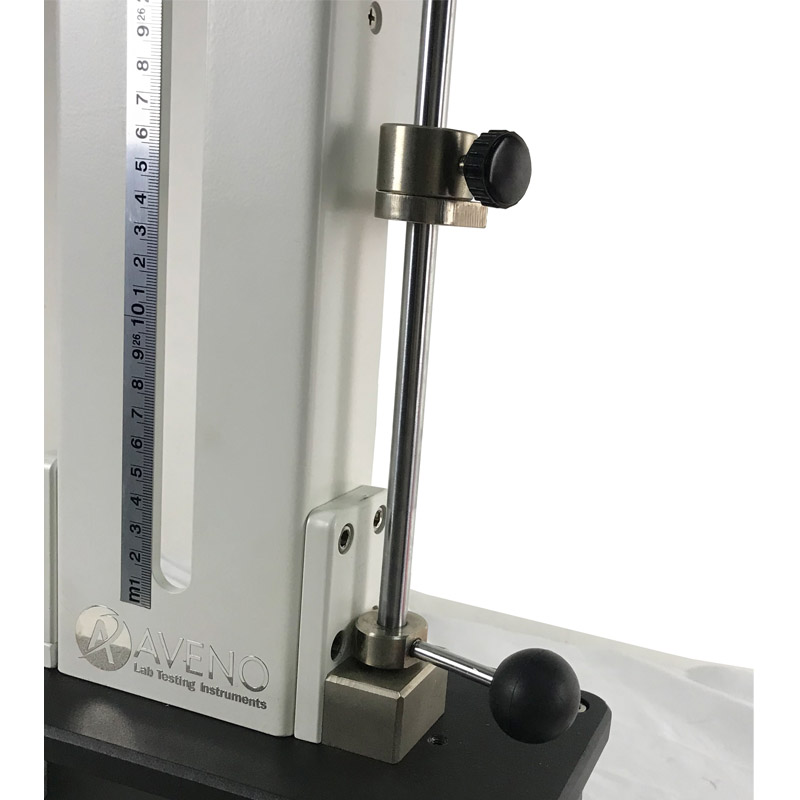

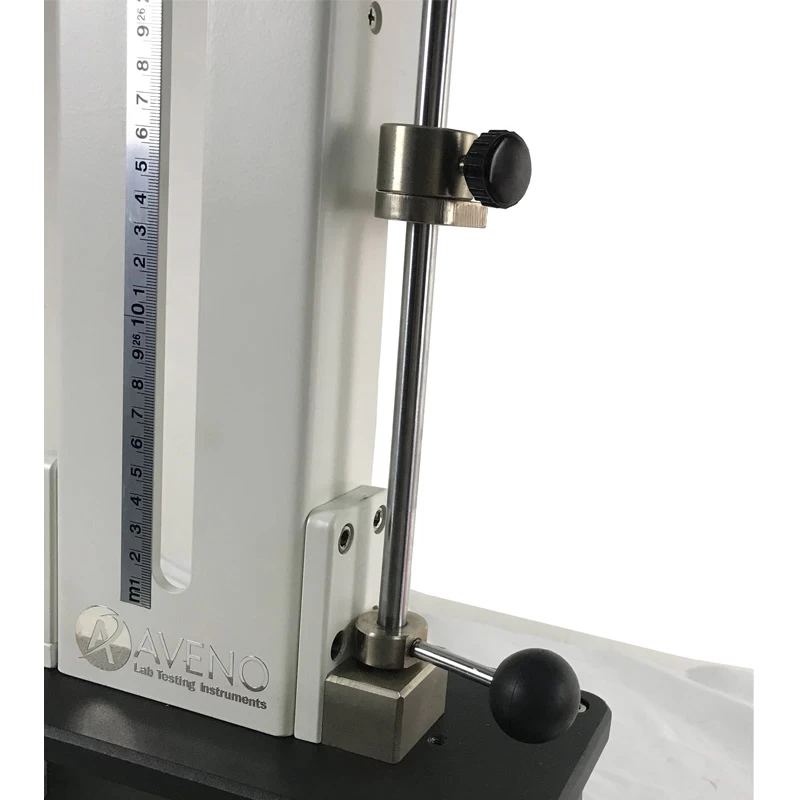

80~1000mm，each interval is 50mm
|
50~500mm，each interval is 50mm
|
|
Weight
of hammer
|
1000、2000G
|
300、500、1000G
|
|
Cone
radius
|
7.9mm(5/16in)
|
1/2, 1/4, 3/16, 1/8,
1/16in
|
|
Sample
holder radius
|

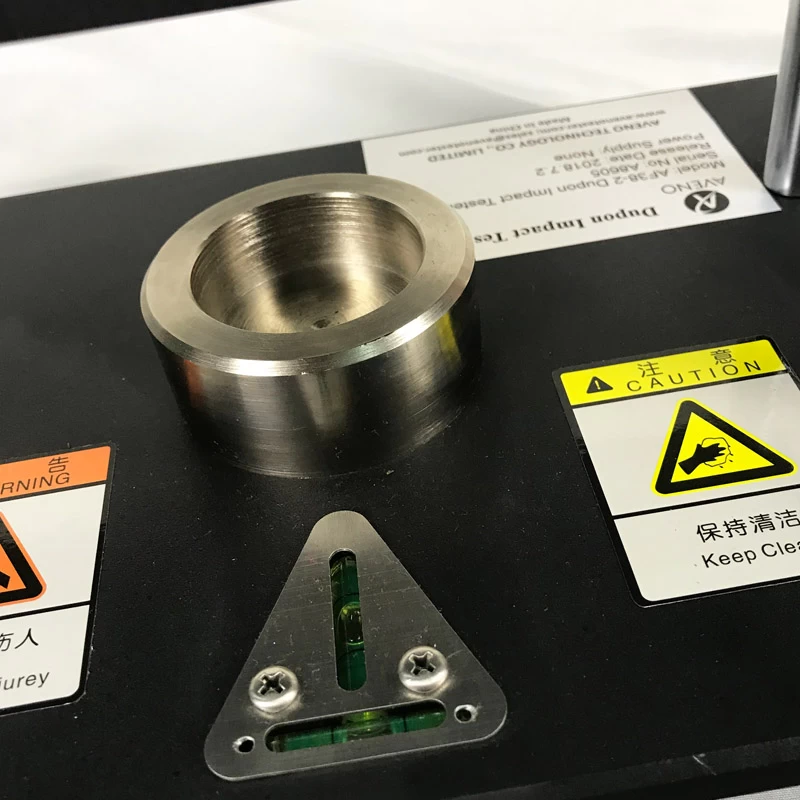

Flat 8.1mm, 15mm
|
Flat 1/2, 1/4, 3/16、1/8、1/16in
|
|
Dimension(D*W*H)
|
45* 58*128cm
|
30*58*77cm
|
|
Weight
|
60kg
|
45kg
|
Related products

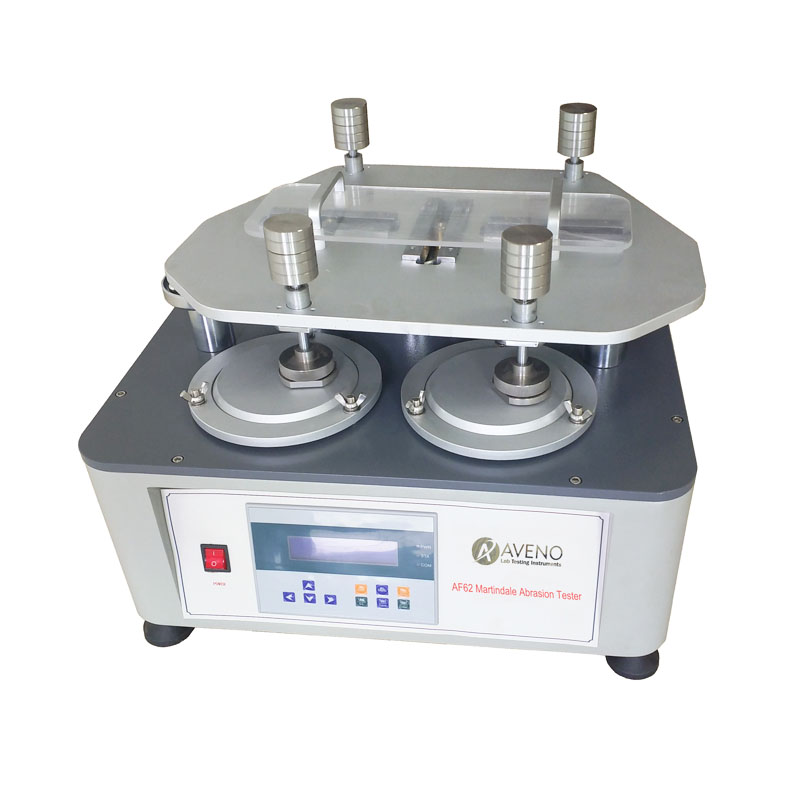

Heel Impact Tester Safety Shoes Impact Tester Martindale Abrasion Tester
