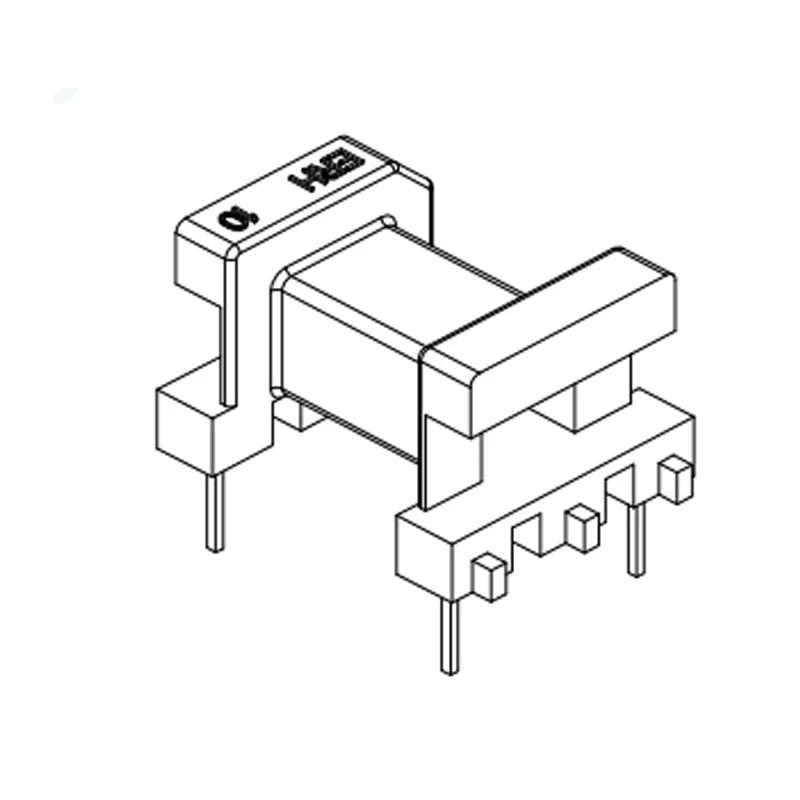

EE16 Horizontal Transformer Bobbin Phenolic Material With 2+2 Pins

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=10mm Parallel Distance=12.6mm

Size=17.8mmX10mmX11mm



EE16 Horizontal bobbin ,phenolic material,Dip Bobbin,2+2 pins ,we mainly produce transformers inductors choke coils and we are one of the largest components manufactures in AnHui .


Quick Details

Place of Origin:Hefei,China(Mainland)



Custom Made: Available



Material:Phenolic

Part Number: MCT-EE1676(H2+2P)



Brand Name: MCT



Color: black

Certification: ISO9001,ROHS,CE



Packing: Carton,can be customized



OEM: Available

Lead Time: 25 days after payment



Logo: Can be customized



MOQ: Any quantity



Part Information

Product Name:EE16 Horizontal Transformer Bobbin Phenolic Material With 2+2 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people , huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5

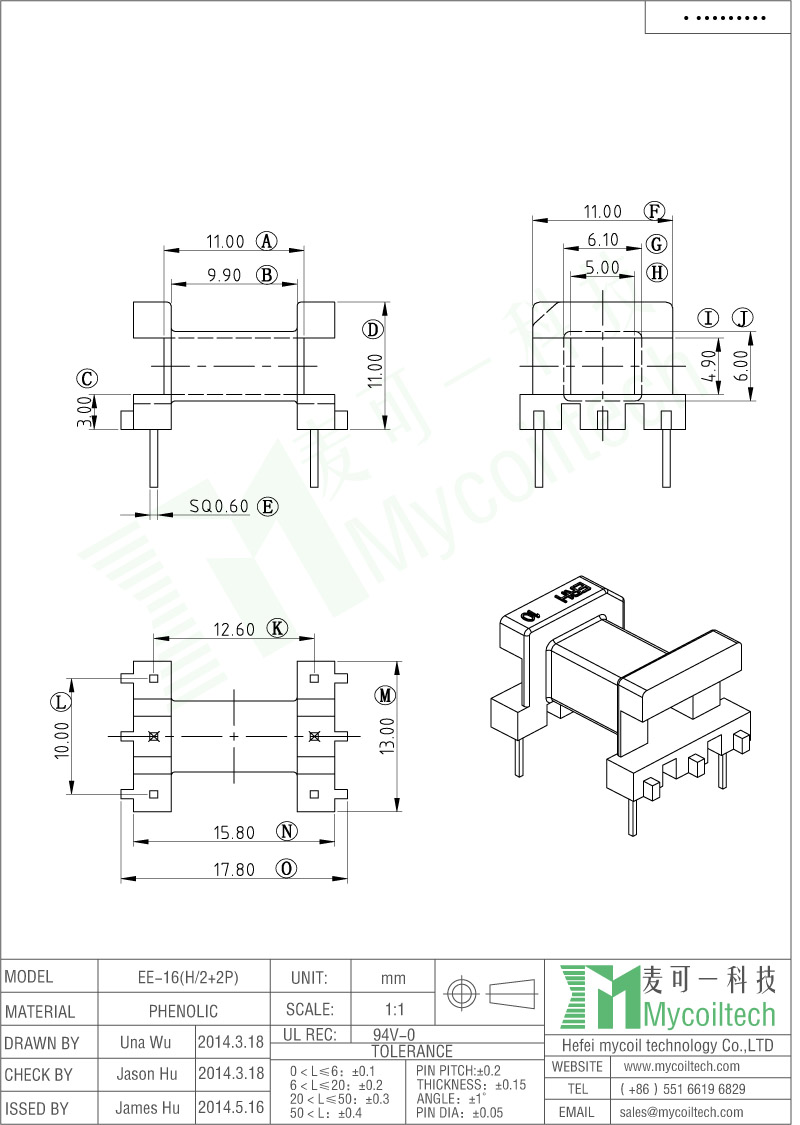

Product Specification

EE16 Horizontal Transformer Bobbin Phenolic Material With 2+2 Pins
