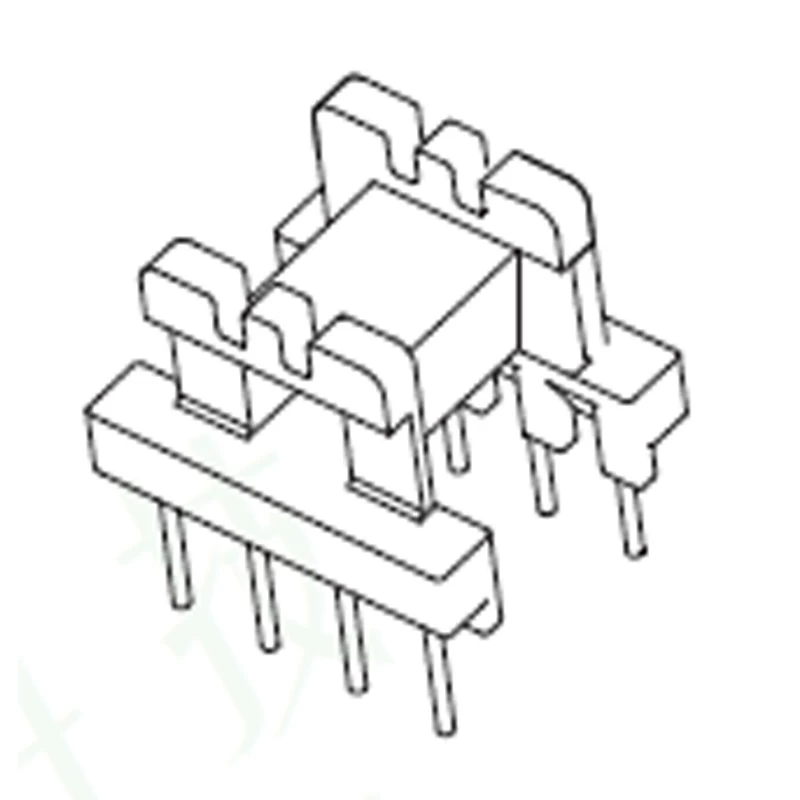

EE19 Horizontal High Frequency Transformer Bobbin Bakelite Bobbin 4+4 Pin

4+4 pin EE19 transformer bobbin. Horizontal transformer bobbin. Phenolic material bobbin. Pin Pitch=4.7mm, Parallel Distance=13mm. DIP bobbin. Bobbin Size=18.4mmX16mmX13.1mm. UL REC:94V-0.



Are you looking for customized electronic transformer bobbins?  We can design horizontal or vertical  type coil bobbin, EE19 4+4 pin transformer bobbin, high quality and low price, any requests, welcome to contact us, we can provide samples in 5 days.


Quick Details

Part Number: MCT-EE1934(H4+4P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE19 Horizontal High Frequency Transformer Bobbin Bakelite Bobbin 4+4 Pin

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

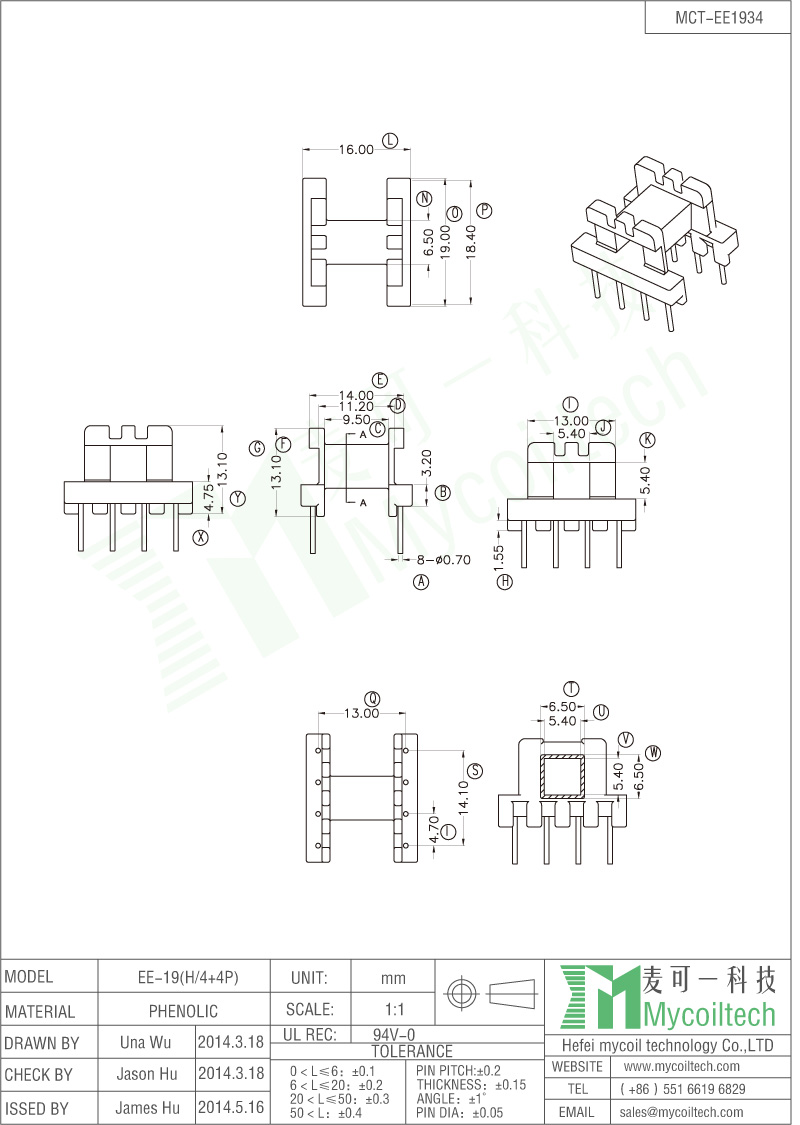

Product Specification

Phenolic Bobbin in EE19 Transformer
