EE28 High Frequency Transformer Horizontal Bobbin 12 Pins

6+6 pin horizontal EE28 bobbin. EE28 ferrite core transformer bobbin. Bobbin Size=40.2mmX26.1mmX20.5mm. Pin Pitch=4.6mm. Parallel Distance=27.7mm. EE28 phenolic transformer bobbin. DIP transformer bobbin. UL REC:94V-0.



High quality EE28 ferriite core bobbin from MCT. We are professional manufacture in designing and producing all kinds electronic transformers and full range of SMD power inductors. We are in this field for many years, we have good relationship with material suppliers.


Quick Details

Part Number: MCT-EE2855

Brand Name: MCT

Material: PA66-70G33L

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: EE28 High Frequency Transformer Horizontal Bobbin 12 Pins

Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

Applications: switching power supply transformers, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.


Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

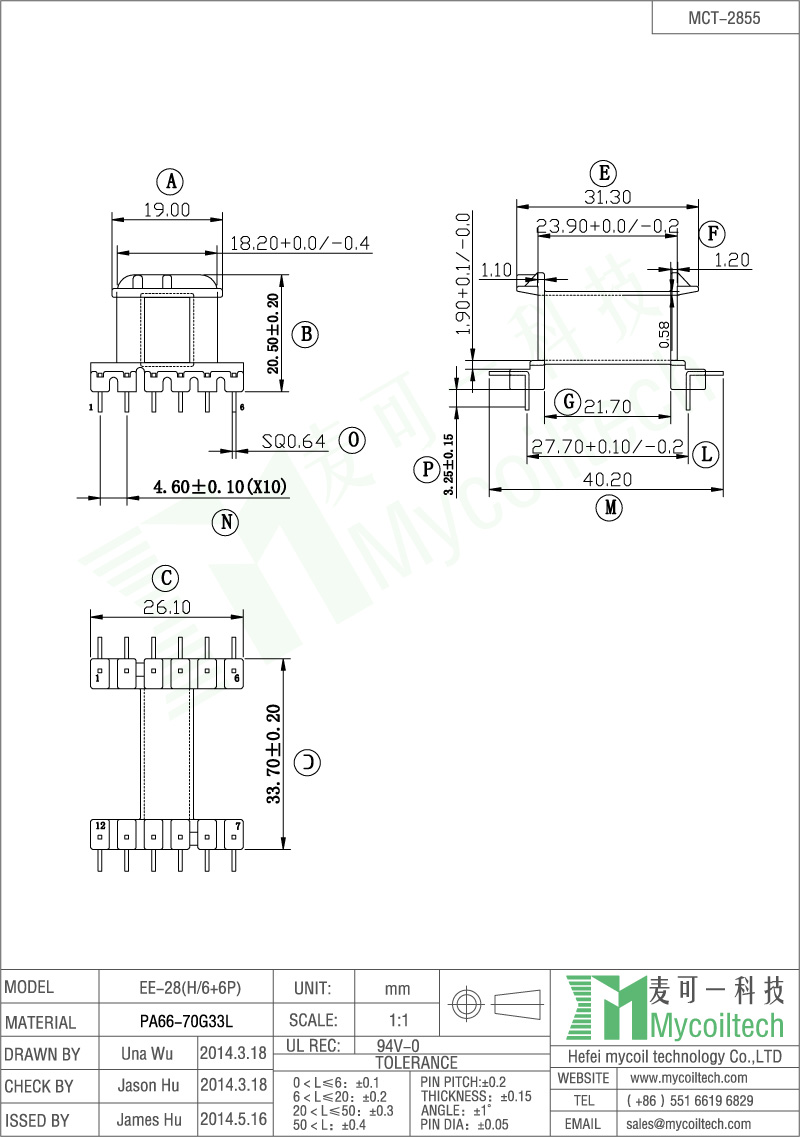

Product Specification

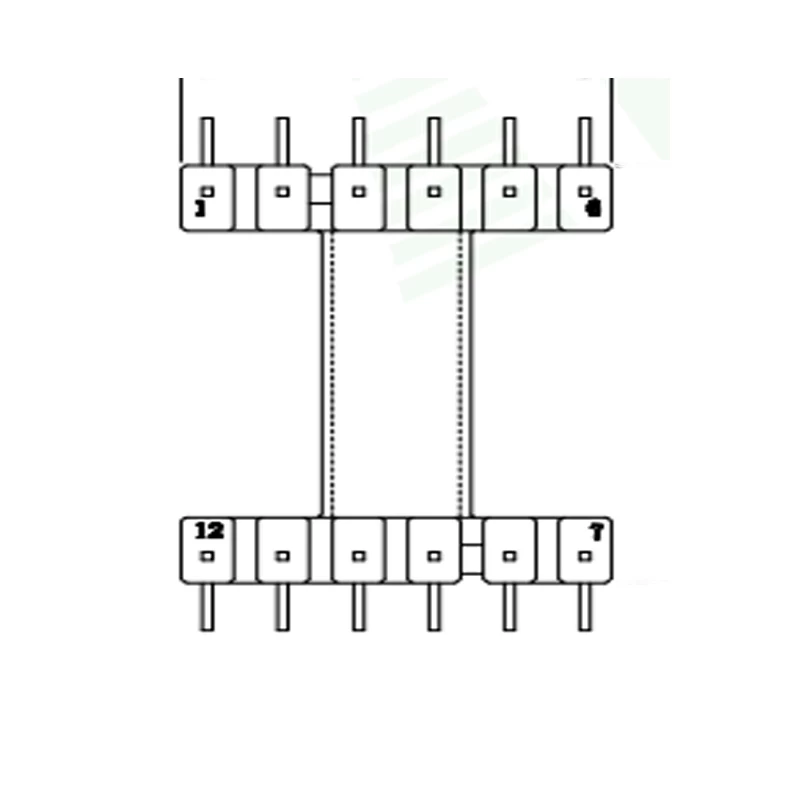

EE28 horizontal bobbin 6+6 pins
