EF Ferrite Core, High Frequency Switching Power Transformer Soft Ferrite Core

EF Type Mnzn Transformer Ferrite Core has high frequency,low-loss.EF core materials:MP4,M5P,M7P,M10P.Mainly for swtching transformers,filter transformers,pulse transformers.



Quick Details

Part Number: EF Type Ferrite Core

Brand Name: MCT

Material: Mn-Zn/MP4/M5P /M7P/M10P

Logo: Can be customized

Core Type: Power core

OEM: Available

Features: High-frequency and low-loss ferrite cores

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: EF Ferrite Core, High Frequency Switching Power Transformer Soft Ferrite Core

ProductsRange: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: High frequency switching power transformers. Matching transformer. Filter transformerPulse transformer. Electronic ballasts.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.



Product Details

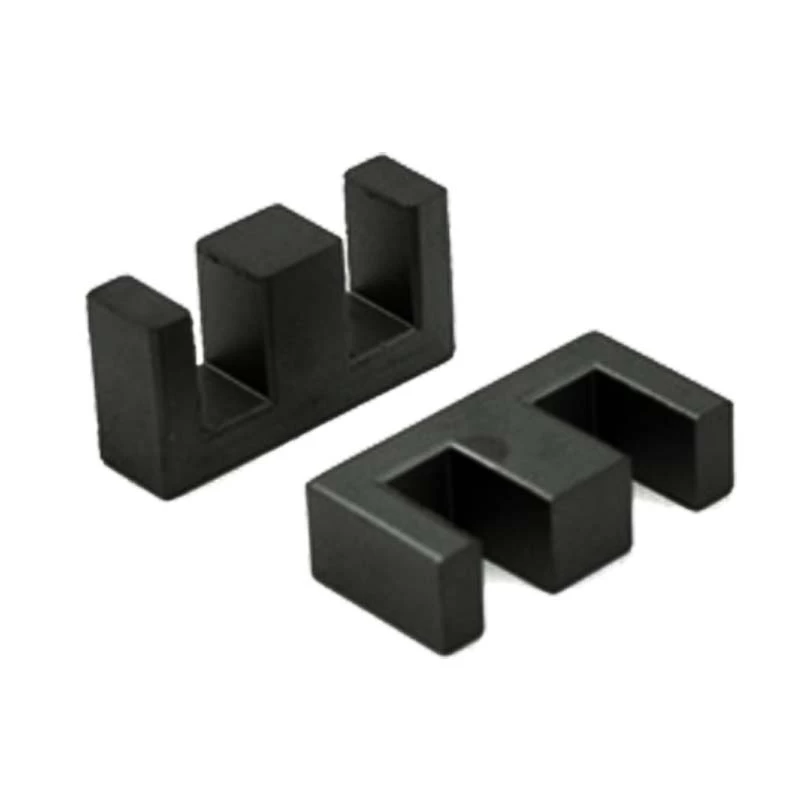

      EF ferrite core manufacturer

TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

EF12.6

12.7±0.4

12.8±0.4

3.60±0.2

8.80

3.65±0.15

9.30±0.3

2.8

EF16

16.10±0.6

16.10±0.4

4.50±0.2

11.30

4.55±0.15

11.80±0.4

3.6

EF20

20.0±0.5

19.80±0.5

5.65±0.3

14.10

5.70±0.30

14.40±0.5

7.3

EF20/11

20.0±0.4

20.0±0.4

11.0-0.5

14.10

5.70±0.30

14.40±0.5

13.9

EF25

25.05±0.75

25.10±0.5

7.20±0.3

17.50

7.20±0.25

17.80±0.4

16.0

EF25/11

25.05±0.5

25.10±0.5

10.75±0.3

17.50

7.20±0.3

17.80±0.4

24.4

EF32

32.0+0.9/-0.7

32.8-1.2

9.5-0.6

22.7

9.5-0.6

22.4+0.6

30.0

EF36

36.0+1.0/-0.7

36.0-0.5

11.5-0.5

24.5+1.2

10.2-0.5

24.0+0.6

50.0


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

EF12.6

2.39

12.4

29.6

367

875

EF16

1.87

20.1

37.6

756

1100

EF20

1.34

33.5

44.9

1500

1350

EF20/11

0.699

64.46

45.06

2904

2990

EF25

1.11

52.5

57.8

3020

1900

4100

5100

6000

EF25/11

0.72

8.2

57.8

4695

3200

EF32

0.89

83

74

6140

2300

EF36

0.68

120

81

9670

3000
