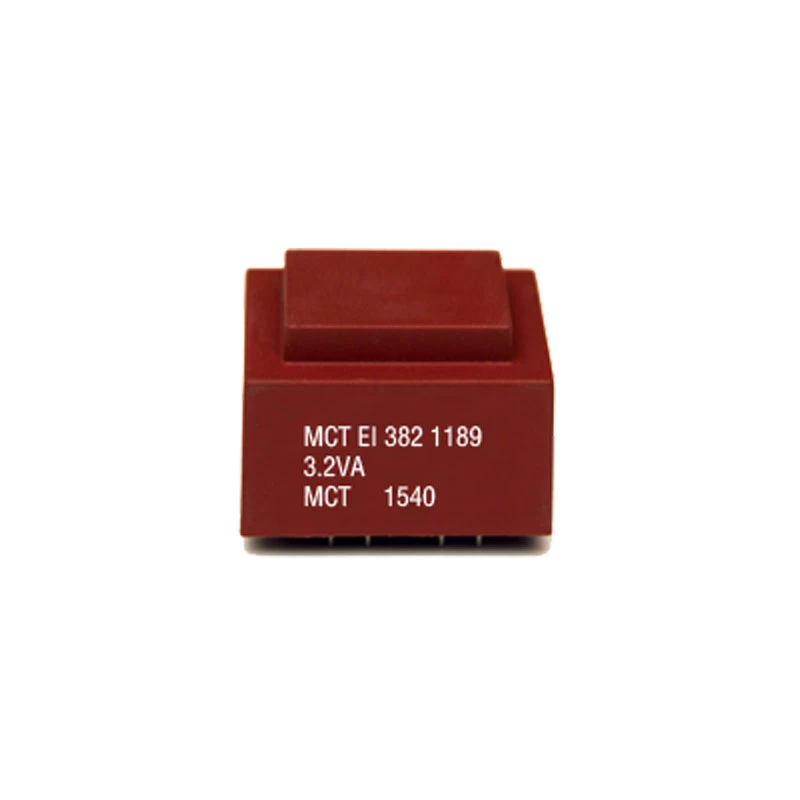

EI Series Encapsulated Electronic Transformer for PCB Mounting

EI38 encapsulated electronic transformer with output power:2.5 VA – 9.0 VA. Inherently short-circuit proof, no load power loss. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.



Hefei Mycoil Technology Co.,LTD is professional electronic encapsulated transformers manufacturer, we have a research team consists of five engineers, engineering and technical personnel can quickly respond to make encapsulated transformers drawings and samples, to ensure that customers can complete the sample machine test at the first time. We accept custom design.


Quick Details

Part No: EI38 2.5VA-9VA

Brand name: MCT

Primary voltages from 12 V to 250 V

Custom made: Available

Output Power up to 9VA

Logo: Can be customized

Temperature class ta 70 °C/B

Packing: Carton, can custom

Bobbin type: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: EI Series Encapsulated Electronic Transformer for PCB Mounting

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

Factory direct selling EI38 encapsulated transformerBest price EI series encapsulated transformersNew design encapsulated transformer from Hefei Mycoil Technology Co.,LTD


Product Part Number

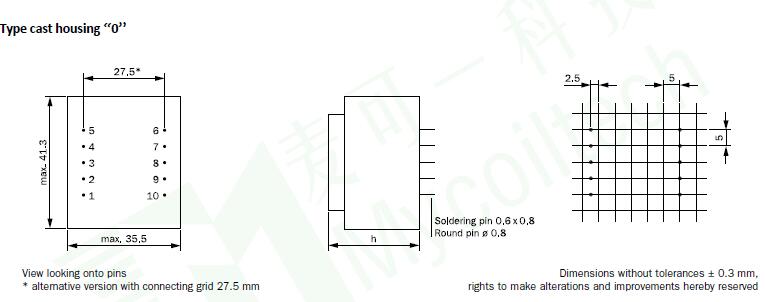

Frame size/Core height

Output Power Ta 70°C/

Height(h)

Weight

Packaging unit

MCT EI 381/7.5 mm

2.5V/A

22.1mm

0.100kg

40 pieces

MCT EI 382/13.6mm

4.5 V/A

28.1mm

0.150kg

40 pieces

MCT EI 383/16.5mm

6.0 V/A

30.8mm

0.190kg

60 pieces

MCT EI 384/28.0mm

9.0V/A

42.8mm

0.280kg

-
