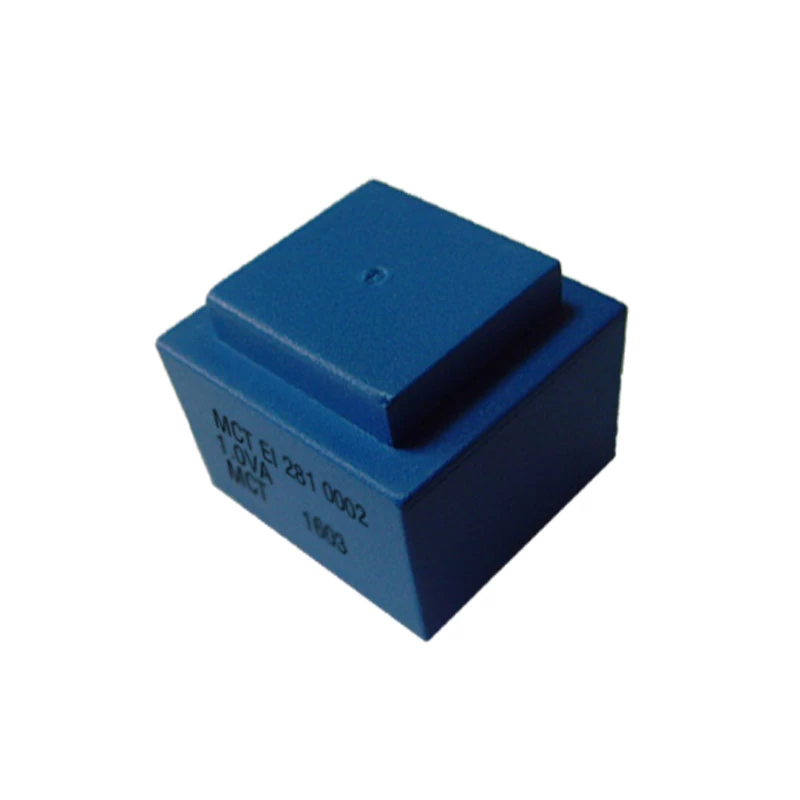

EI28 Encapsulated Electronic Transformer with 2.0VA Output Power

EI series encapsulated transformer output power range from 1.0VA to 2.0VA. Excellent temperature fluctuation resistance properties. Self-extinguishing cast housing and sealing material. Minimal size available.



High quality EI series encapsulated electronic transformer from MCT. Primary voltages from 12 V to 250 V or 2 x 12 V to 2 x 125 V, secondary voltages from 2 V to max. 24 V or 2 x 2 V to max. 2 x 24 V. We produce various types encapsulated transformers, all products with RoHS certification.



Quick Details

Part No: EI28 1.0-2.0VA

Brand name: MCT

Primary voltages from 12 V to 250 V

Custom made: Available

Output Power up to 2.0 VA

Logo: Can be customized

Temperature class ta 70 °C/B

Packing: Carton, can custom

Bobbin type: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: EI28 Encapsulated Electronic Transformer with 2.0VA Output Power

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification


EI28 Encapsulated Electronic Transformer from MCT



Product Part Number

Frame size/

Core height

Output Power

To 40°C

Output Power

To 70°C

Output Power

To 70°C

With thermo-fuse

Height(h)

Weight

Packaging

 unit

MCT EI 281/12.0mm

1.0V/A

0.8V/A

0.8V/A

25.5mm

0.035kg

50 pieces*

MCT EI 282/18.0mm

2.0V/A

1.8V/A

1.8V/A

32.5mm

0.108kg

50 pieces*


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

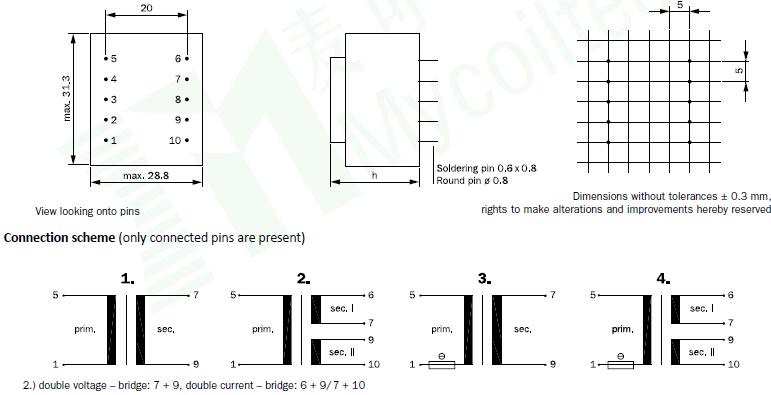

Connection

scheme

MCT EI 281 0001

230

1-5

1×6

166.0

7-9

1×8.5

1

MCT EI 281 0002

230

1-5

2×6

83.0

6-7/9-10

2×8.3

2

MCT EI 281 0003

230

1-5

1×7.5

133.2

7-9

1×11.0

1

MCT EI 281 0004

230

1-5

2×7.5

66.6

6-7/9-10

2×10.5

2

MCT EI 281 0005

230

1-5

1×9

111.0

7-9

1×12.5

1

MCT EI 281 0006

230

1-5

2×9

55.5

6-7/9-10

2×11.9

2

MCT EI 281 0007

230

1-5

1×12

84.0

7-9

1×16.3

1

MCT EI 281 0008

230

1-5

2×12

42.0

6-7/9-10

2×16.2

2

MCT EI 281 0009

230

1-5

1×15

66.0

7-9

1×20.2

1

MCT EI 281 0010

230

1-5

2×15

33.0

6-7/9-10

2×20.4

2

MCT EI 281 0011

230

1-5

1×18

55.0

7-9

1×24.2

1

MCT EI 281 0012

230

1-5

2×18

27.5

6-7/9-10

2×24.2

2

MCT EI 281 0013

230

1-5

1×24

42.0

7-9

1×32.2

1

MCT EI 281 0014

230

1-5

2×24

21.0

6-7/9-10

2×32.1

2


Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 282 0016

230

1-5

1×6

333.0

7-9

1×10.5

1

MCT EI 282 0017

230

1-5

2×6

166.5

6-7/9-10

2×10.5

2

MCT EI 282 0018

230

1-5

1×7.5

267.0

7-9

1×13.0

1

MCT EI 282 0019

230

1-5

2×7.5

133.0

6-7/9-10

2×13.0

2

MCT EI 282 0020

230

1-5

1×9

222.0

7-9

1×15.0

1

MCT EI 282 0021

230

1-5

2×9

111.0

6-7/9-10

2×15.0

2

MCT EI 282 0022

230

1-5

1×12

167.0

7-9

1×20.2

1

MCT EI 282 0023

230

1-5

2×12

83.0

6-7/9-10

2×20.2

2

MCT EI 282 0024

230

1-5

1×15

133.0

7-9

1×24.5

1

MCT EI 282 0025

230

1-5

2×15

66.0

6-7/9-10

2×24.5

2

MCT EI 282 0026

230

1-5

1×18

111.0

7-9

1×38.0

1

MCT EI 282 0027

230

1-5

2×18

55.0

6-7/9-10

2×29.5

2

MCT EI 282 0028

230

1-5

1×24

83.0

7-9

1×24.2

1

MCT EI 282 0029

230

1-5

2×24

41.5

6-7/9-10

2×24.5

2
