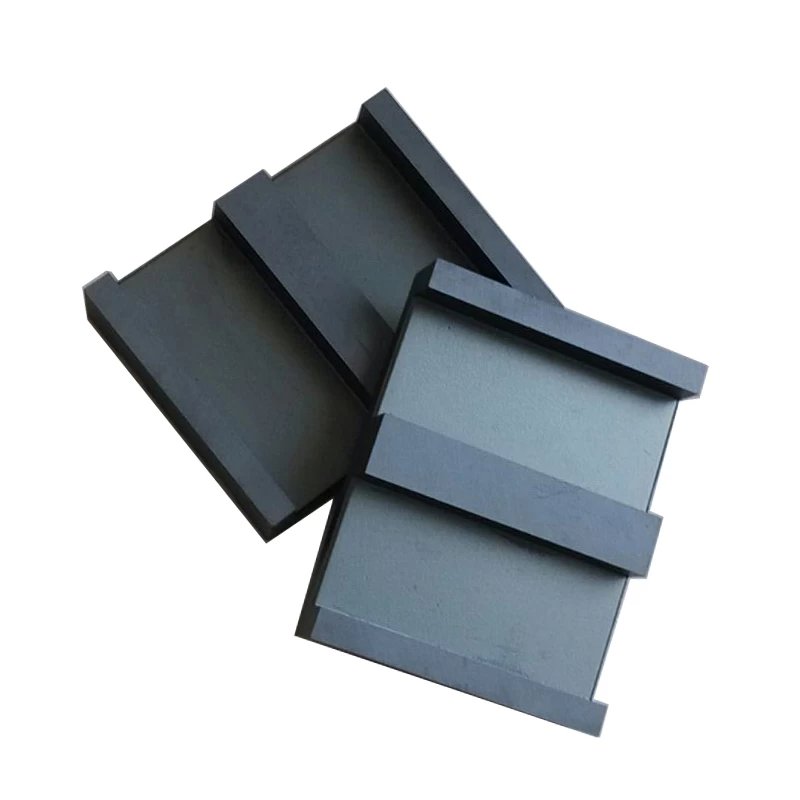

Electronic Transformer Cores PEE or PEI Power Ferrite Core

PEE and PEI series ferrite core has high frequencylow power loss and high value.Widely used in high frequency switching power transformers,filter transformers,inductors.



Quick Details

Part Number: PEE/PEI Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: High frequency,low power lossHigh value

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: Electronic Transformer Cores PEE or PEI Power Ferrite Core

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: High Sensitivity Sensor. High Efficiency Sensor. Power Conversion Transformer. High-frequency switching power transformers

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

PEE and PEI series ferrite core materials:M10P, M7P, M5P, MP4

New design PEE/PEI transformer cores

     Fig 1  PEE type                                          Fig 2 PEI type

TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

I

PEE14

14.0±0.30

3.50±0.10

5.00±0.10

3.00±0.05

10.50 min

2.00±0.10

1.40

PEI14

14.0±0.30

3.50±0.10

5.00±0.10

3.00±0.05

10.50 min

2.00±0.10

1.50±0.1

1.27

PEE18

18.0±0.30

4.00±0.10

10.0±0.20

4.00±0.10

14.0±0.30

2.00±0.10

4.80

PEI18

18.0±0.30

4.00±0.10

10.0±0.20

4.00±0.10

14.0±0.30

2.00±0.10

2.00±0.1

4.29

PEE22

21.8±0.40

5.70±0.10

15.8±0.50

5.00±0.10

16.8±0.40

3.20±0.10

13.00

PEI22

21.8±0.40

5.70±0.10

15.8±0.50

5.00±0.10

16.8±0.40

3.20±0.10

2.50±0.1

11.42

PEE32

31.75±0.64

6.35±0.13

20.32±0.41

6.35±0.13

24.9min

3.18±0.20

26.00

PEI32

31.75±0.64

6.35±0.13

20.32±0.41

6.35±0.13

24.9min

3.18±0.20

3.18±0.13

22.00

PEE38

38.10±0.76

8.26±0.13

25.4±0.51

7.62±0.15

30.23min

4.45±0.13

50.90

PEI38

38.10±0.76

8.26±0.13

25.4±0.51

7.62±0.15

30.23min

4.45±0.13

3.81±0.13

42.50

PEE43

43.20±0.90

9.53±0.13

27.9±0.60

8.10±0.20

34.7min

5.40±0.13

70.60

PEI43

43.20±0.90

9.53±0.13

27.9±0.60

8.10±0.20

34.7min

5.40±0.13

4.06±0.12

58.00

PEE58

58.42±1.17

10.54±0.2

38.1±0.78

8.10±0.20

50.39min

6.35min

130.0

PEI58

58.42±1.17

10.54±0.2

38.1±0.78

8.10±0.20

50.39min

6.35min

4.04±0.12

110.0

PEE64

64.00±0.76

10.20±0.1

58.8±0.81

10.16±0.18

53.16min

5.03min

210.0

PEI64

64.00±0.76

10.20±0.1

58.8±0.81

10.16±0.18

53.16min

5.03min

5.08±0.13

181.0


TYPE

Effective parameter

AL(nH/N2)(AL±25%)

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

PEE14

1.43

20.7

14.5

300

1200

PEI14

1.6

16.7

14.5

240

1105

PEE18

0.616

24.3

39.5

960

2520

PEI18

0.498

20.3

40.8

830

2851

PEE22

0.414

32.5

78.5

2550

4040

PEI22

0.332

26.1

75.5

2040

4880

PEE32

0.315

41.4

130

5380

5673

PEI32

0.27

35.1

130

4560

6422

PEE38

0.27

52.4

194

10200

7006

PEI38

0.225

43.7

194

8460

8132

PEE43

0.267

61.1

229

18900

7292

PEI43

0.220

50.4

229

11500

8525

PEE58

0.270

81.2

301

24600

7546

PEI58

0.224

68.3

305

20829

8844

PEE64

0.155

80.2

516

41400

13020

PEI64

0.137

69.9

511

35539

14565
