High Frequency Transformer Cores PM Series Ferrite Core

PM series ferrite core has wide frequency range, it's low insert loss ferrite cores. Mainly used for electronic transformers and choke inductors.



Quick Details

Part Number: PM Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: High frequency,low power lossHigh value and permeability

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: High Frequency Transformer Cores PM Series Ferrite Core

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: High Sensitivity Sensor. High Efficiency Sensor. Power Conversion Transformer. High-frequency switching power transformers.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

PM Series Ferrite Core Materials: M10P, M7P, M5P, MP4

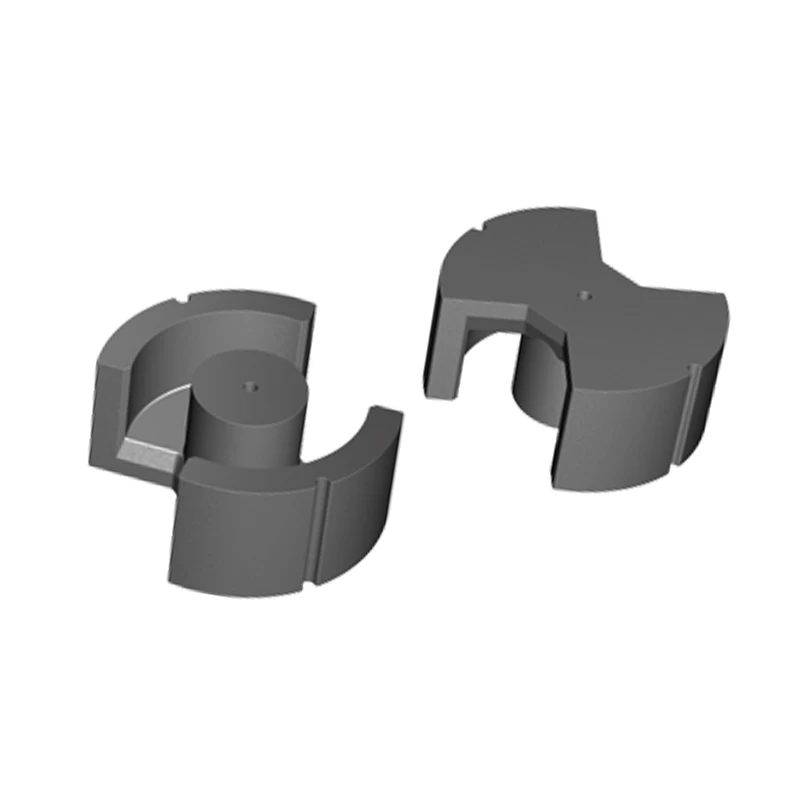

PM ferrite core for high frequency transformer

TYPE

Dimension:mm

Weight: g

A

B

C

D

E

F

PM50

49.15±0.85

39.65±0.65

19.7±0.3

5.5±1.0

26.8±0.4

38.8±0.2

140

PM62

61.0±1.0

48.0min

25.0±0.7

5.3±0.3

33.8±0.6

48.8±0.5

280

PM74

74.0±0.3

57.0min

29.0±1.0

5.4±0.3

41.0±0.8

59.0±0.6

460

PM87

87.0±0.3

66.5min

31.0±1.5

8.5±0.4

48.4±0.8

70.0±0.8

770

PM114

114.0±0.5

88.0min

42.0±1.5

5.4±0.4

63.8±0.8

92.5±0.5

1940


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

PM50

0.227

370

84

31000

7700

PM62

0.190

570

109

62000

970

PM74

0.162

790

128

10100

10000

PM87

0.161

910

146

133000

13000

PM114

0.116

1720

200

344000

16000


If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Lily Yu


Product Tags ferrite core          large ferrite core          buy ferrite core          usb ferrite core          ferrite rod cores          ferrite core price          split core ferrite          ferrite core snap on          ferrite core manufacturers
