ET and FT Series High Frequency Filter Ferrite Cores for Computers, Video Phone

ET/FT series ferrite core has small stray capacitance,low ripple coefficient,less leakage flux,high inductance.Mainly for electronic transformers,computers,color TV,monitors.



Quick Details

Part Number: ET & FT Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: Low leakage inductance. High efficiency

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: ET and FT Series High Frequency Filter Ferrite Cores for Computers, Video Phone

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: Electronic ballasts. Switching power transformers. Pulse transformers. Switching power transformers. Power Conversion Transformer. Color TV, monitor, computer, cell phone.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

ET and FT Series High Frequency Transformer Ferrite Cores

Mnzn ET and FT series Ferrite CoreChina Best Selling Soft FT Series Ferrite Cores

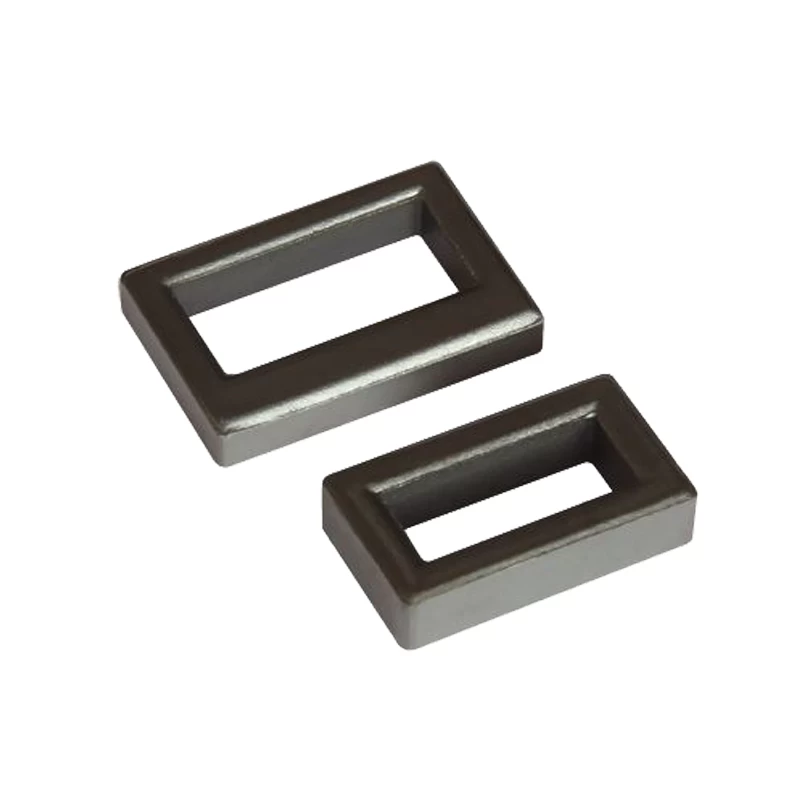

        Fig 1:ET Type                                    Fig 2: FT type

ET and FT Series  Ferrite Core Materials: M10P, M7P, M5P, MP4

TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

M5P

M7P

M10P

M12P

M15P

ET20

29.6

17.6

52.1

917

3100

4400

4850

6370

ET20A

27.2

18.51

50.36

932

4800

ET24

3.31

18.0

60.0

1098

2800

3800

4300

5600

ET25

2.3

27.6

62.3

1721

2500

3000

4000

4600

ET28

2.54

27.0

70.0

1972

ET29

2.55

28.02

71.41

2000.72

6000+40%/-30%

ET35

1.46

58.3

85.2

4970

3100~

4500

4000min

5800

7200

FT20

4.11

13.0

53.0

688

1600

2100

2900

3300

FT25

3.77

18.0

68.0

1203

3400

FT30

2.85

27.0

77.0

2068

2500

3150

4500

5400



TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

ET20

20.3±0.5

15.8

15.8

20.3±0.5

4.0±0.3

4.4±0.3

3.88

ET20A

20.3±0.5

16.1

15.8

20.3±0.5

4.0±0.3

4.4±0.3

4.41

ET24

24.2±0.5

18.9

18.8

24.2±0.5

4.0±0.3

4.0±0.3

5.3

ET25

25.5±0.5

19.2

19.2

25.5±0.5

5.0±0.3

7.0±0.3

13.0

ET28

28.45±0.7

21.8

22.2

28.45±0.7

5.0±0.3

5.0±0.3

10.1

ET29

28.7±0.5

22.2

22.2

28.7±0.5

5.0±0.3

5.0±0.3

10.25

ET35

35.3±0.7

26.8

26.5

35.3±0.7

7.5±0.3

7.5±0.3

26.0

FT20

20.6±0.6

15.7min

7.35min

14.1±0.25

4.1±0.2

4.6±0.2

3.8

FT25

25.6±0.4

19.3min

8.1min

17.6±0.3

3.4±0.15

5.2±0.25

6.5

FT30

30.0±0.4

22.4min

8.9min

19.8±0.3

4.2±0.15

6.4±0.25

10.9
