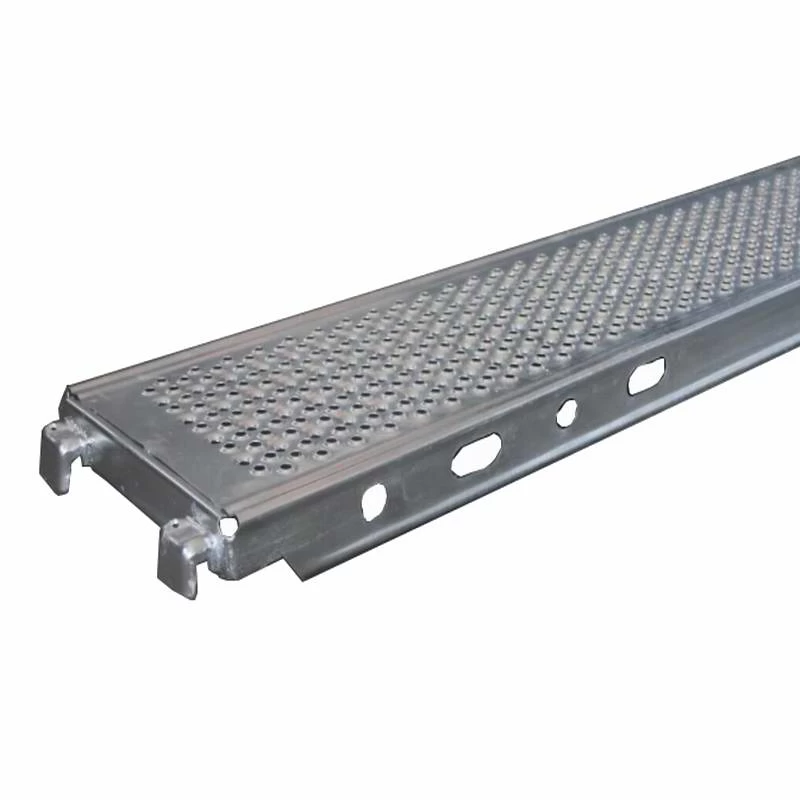

European Type Steel Plank, 320mm wide, for U-ledger
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP4.32307U
|
320x3072mm
|
12.6" x 10'-31/32"
|
27.11
|
59.78
|
|
SP4.32257U
|
320x2572mm
|
12.6" x 8'-5 1/4"
|
22.98
|
50.67
|
|
SP4.32207U
|
320x2072mm
|
12.6" x 6'-9 9/16"
|
18.86
|
41.59
|
|
SP4.32157U
|
320x1572mm
|
12.6" x 5'-1 7/8"
|
14.73
|
32.48
|
|
SP4.32140U
|
320x1400mm
|
12.6" x 4'-7 1/8"
|
13.31
|
29.35
|
|
SP4.32129U
|
320x1286mm
|
12.6" x 4'-2 5/8"
|
12.37
|
27.28
|
|
SP4.32109U
|
320x1088mm
|
12.6" x 3'-6 27/32"
|
10.74
|
23.68
|
|
SP4.32104U
|
320x1036mm
|
12.6" x 3'-4 25/32"
|
10.31
|
22.73
|
|
SP4.32102U
|
320x1020mm
|
12.6" x 3'-4 3/16"
|
10.18
|
22.45
|
|
SP4.32088U
|
320x880mm
|
12.6" x 2'-10 21/32"
|
9.02
|
19.89
|
|
SP4.32073U
|
320x732mm
|
12.6" x 2'-4 13/16"
|
7.80
|
17.2
|
Material: Steel grade Q235. Plank width 320mm, height 76mm,thickness 1.8mm.
Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
Other thickness 1.5mm is available by request.
European Type Steel Plank, 190mm wide, for U-ledger
|
Code
|
Size (Metric)
|
Size (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
SP4.19307U
|
190x3072mm
|
7.5" x 10'-31/32"
|
21.95
|
48.4
|
|
SP4.19257U
|
190x2572mm
|
7.5" x 8'-5 1/4"
|
18.74
|
41.32
|
|
SP4.19207U
|
190x2072mm
|
7.5" x 6'-9 9/16"
|
15.54
|
34.27
|
|
SP4.19157U
|
190x1572mm
|
7.5" x 5'-1 7/8"
|
12.33
|
27.19
|
|
SP4.19140U
|
190x1400mm
|
7.5" x 4'-7 1/8"
|
11.22
|
24.74
|
|
SP4.19129U
|
190x1286mm
|
7.5" x 4'-2 5/8"
|
10.49
|
23.13
|
|
SP4.19109U
|
190x1088mm
|
7.5" x 3'-6 27/32"
|
9.22
|
20.33
|
|
SP4.19104U
|
190x1036mm
|
7.5" x 3'-4 25/32"
|
8.89
|
19.6
|
|
SP4.19102U
|
190x1020mm
|
7.5" x 3'-4 3/16"
|
8.79
|
19.38
|
|
SP4.19088U
|
190x880mm
|
7.5" x 2'-10 21/32"
|
7.89
|
17.4
|
|
SP4.19073U
|
190x732mm
|
7.5" x 2'-4 13/16"
|
6.94
|
15.3
|
Material: Steel grade Q235. Plank width 190mm, height 76mm,thickness 1.8mm.
Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
Other thickness 1.5mm is available by request.
