Fan Coil Of Air Handling Unit

Fan coil unit is usually connected to AHU, which has  ten standard models abd each of which is divided into standard, low static and high static. It has variable load characteristics and strong adaptability.

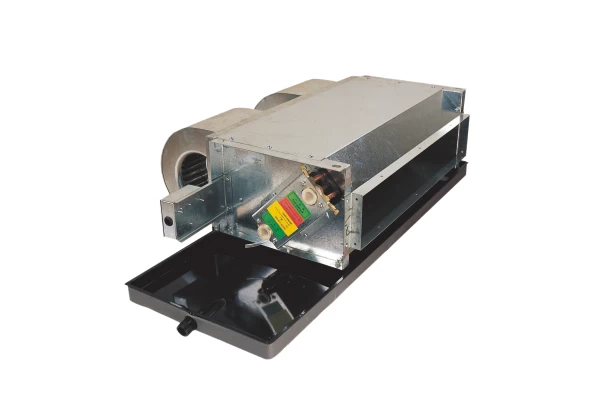

Fan coil


Introduction: There are ten standard models for fan coils, each of which is divided into standard, low static and high static. Advanced design, superior performance and complete range.

Brand: H.Stars

Handling air volume: 180m3/h ~ 2380m3/h

Applications: Hotels, shopping malls, hospitals, villas, airports, subways, radio and television stations and other installation environments.

 Fan coil unit

Unit parameters:

Treatment air volume 1:80m3/h ~ 2380m3/h

Cooling capacity :1561w - 12600w

Scope of application various installation environments such as hotels, shopping malls, hospitals, villas, airports, subways, radio and television stations.


H.Stars Group Unit


Unit characteristics

1. It has variable load characteristics and strong adaptability. It can flexibly configure automatic temperature control system such as electric valve and temperature controller.



2, The structure is reasonable, sturdy and durable: with galvanized steel structure, the front curved blade centrifugal double inlet air type low noise metal fan, PSC motor and no need for oil bearings. The fan has strict dynamic and static balance correction, stable operation, low noise, power saving and long service life. The normal operation can reach more than 10 years, and the maintenance is convenient.



3. The coil tube is made of high-quality seamless copper tube and aluminum fin, which is made by strict process such as mechanical tube rise and secondary flange, and double-sided flow strip type high-efficiency tube-sheet heat exchanger coil, all products Strict leak detection after 2.4MPa pressure, quality assurance.



4. The coil can be easily disassembled for easy cleaning and maintenance. The installation of the coil inlet and outlet pipes can easily change the left and right direction. The condensate drain pan of the unit is all lengthened, which has the characteristics of ensuring that the condensed water in the cold water pipeline and the electric valve insulation is smoothly dropped into the tray to prevent condensation of the water pipe.



5. The standard 2 piping system uses 3 rows of coils. It can also be flexibly configured according to user requirements.
