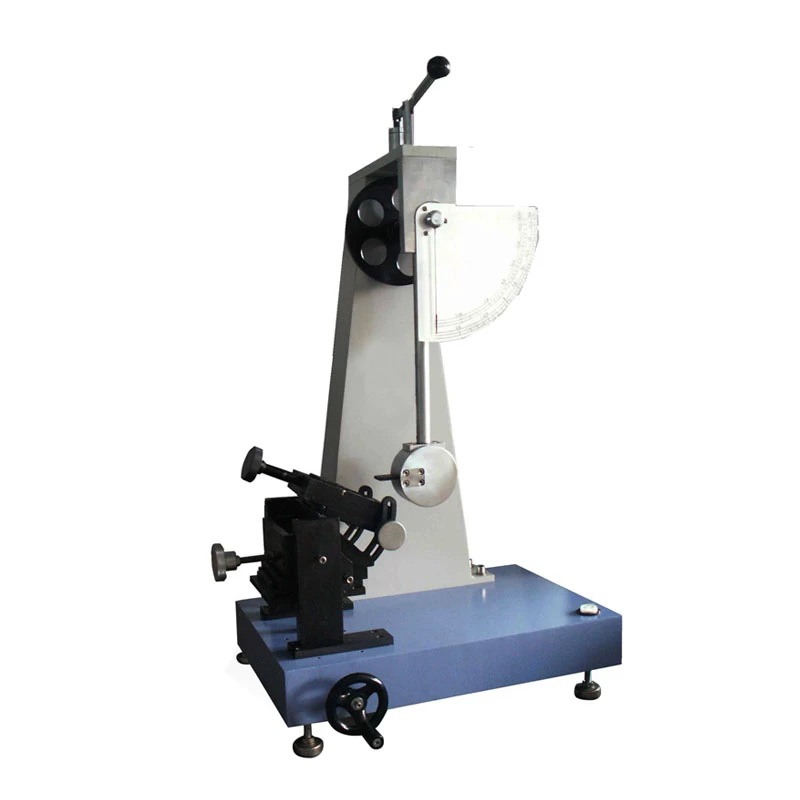

AF41-Heel Impact Tester
Application Of Heel Impact Tester
Heel Impact Tester specifically designed to test the impact resistance of female heels and heel shoes. During the test, the energy of the impact increases gradually until the heel breaks, and then the impact index is read to determine the continuous stress acceptance index of the heel and determine the durability of the heel.
Standards Of Heel Impact Tester
BS-5131, ISO 19953, QB/T 2863, SATRA TM20
Key Specification Of Heel Impact Tester
|
Model
|
AF41 Heel Impact Tester
|
|
Capacity
|
0~18.3J (13.5ft-lb),
min.reading g 0.68J
(0.5ft-lb)
|
|
Energy
of pendulum at horizontal
|
17.3N~m(12.7ft-lb)
|
|
Specimen
holder adjustable range
|
Height ~25mm
Angle 0~45°
|
|
Dimension
|
65 × 41 × 115cm
|
|
Weight
|
100kg
|
