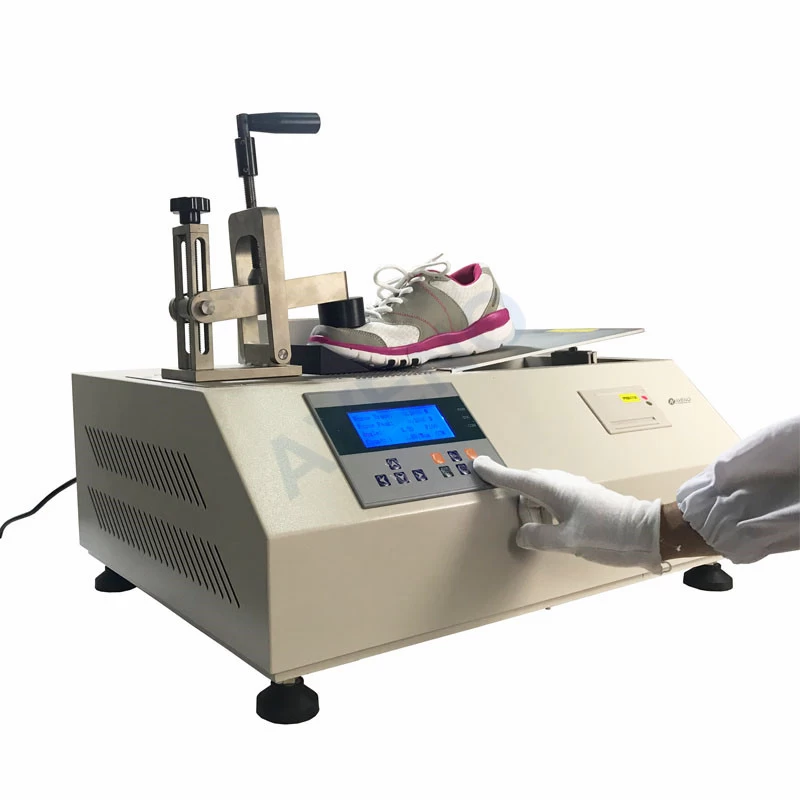

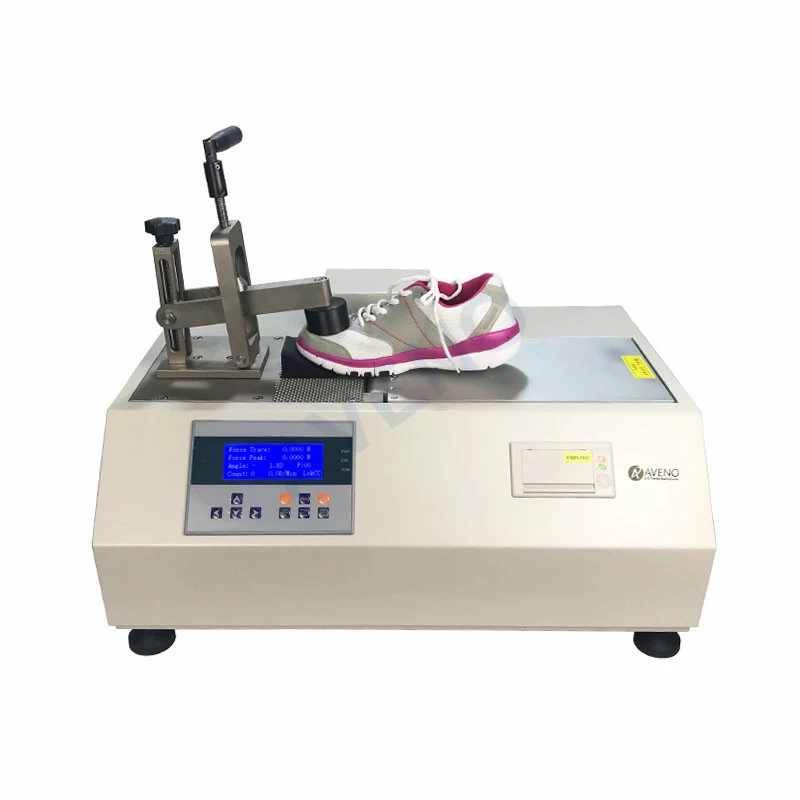

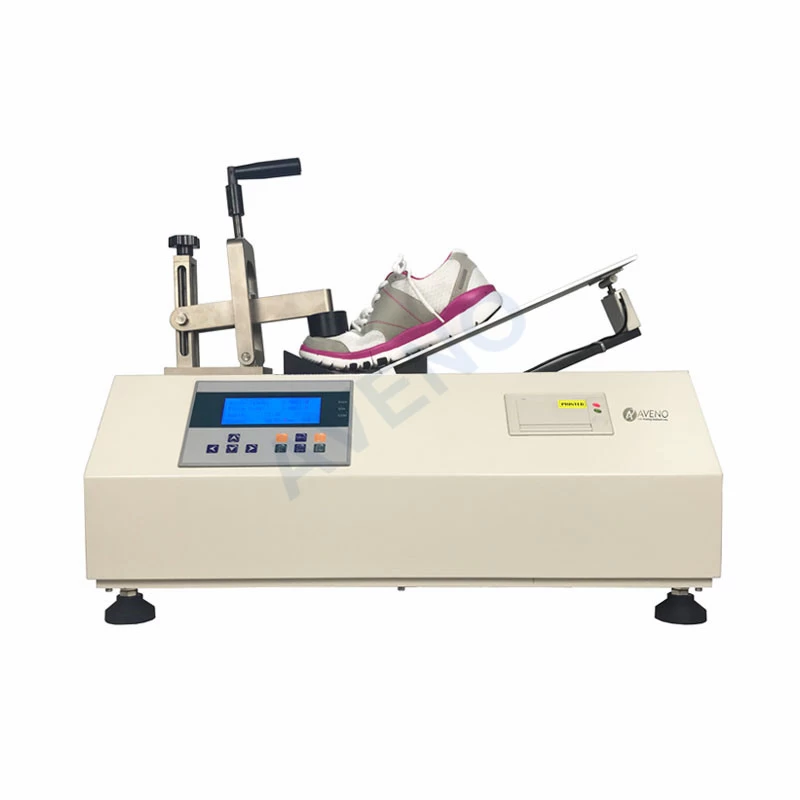

AF44-Shoe Stiffness Tester (Shoe Flexing Tester)
Application Of Shoe Stiffness Tester (Shoe Flexing Tester)

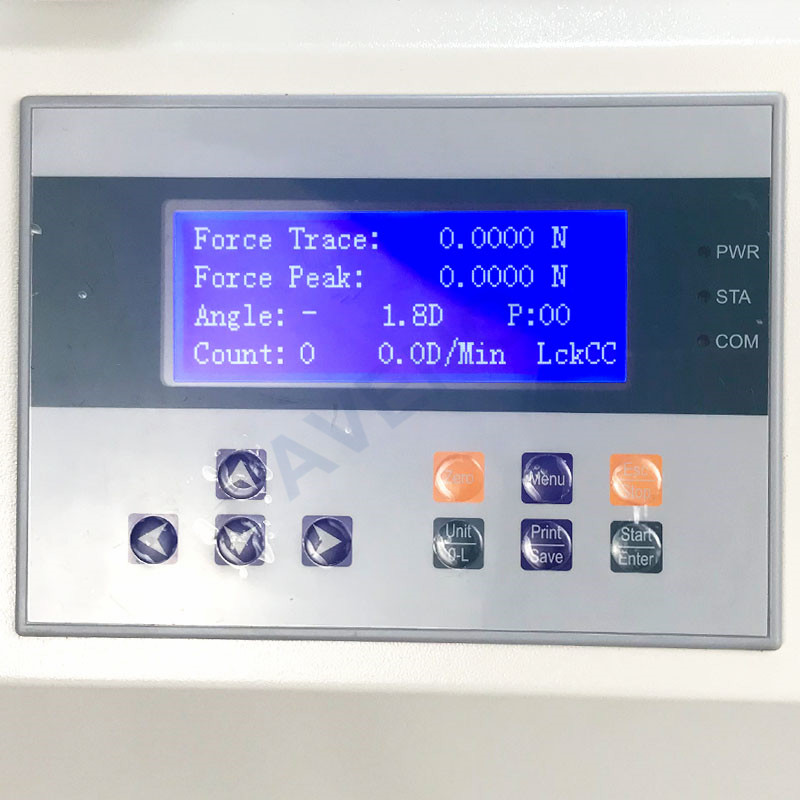

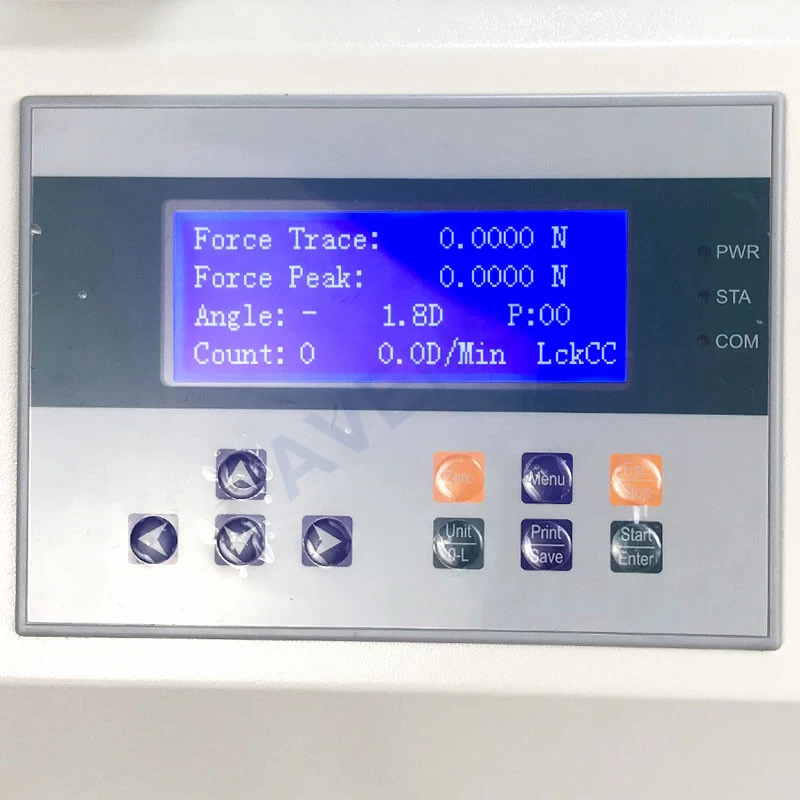

Shoe Stiffness Tester (Shoe Flexing Tester) is used to test the bending resistance of finished shoes. The bending resistance performance of the sample shoe material is evaluated by checking the required force value of the sample shoe when it is bent to a certain angle or the angle when it reaches a certain force. The high-accuracy decoder accurately reads the angle value and has a quick return function.
Standards Of Shoe Stiffness Tester (Shoe Flexing Tester)
ISO 20344, ISO 17707, GB/T 20991, ISO 20344, QB 2885, AS/NZS 2210.2
Key Specification Of Shoe Stiffness Tester (Shoe Flexing Tester)
|
Model
|
AF44 Shoe Stiffness
Tester (Shoe Flexing Tester)
|
|
Capacity
|
200 N
|
|
Bending
speed
|
100 mm/min (line speed)
|
|
Arm
length
|
315 mm
|
|
Bend
position
|
1/3 position of shoes
|
|
Sample
|
French shoes : 39, 42
|
|
British shoes: 6, 8
|
|
Angle
decomposition
|
0.1°
|
|
Strength
decomposition
|
1/50,000
|
|
Power
supply
|
AC 220V, 3A
|
|
Dimension
(W×D×H)
|
49×44×53 cm
|
|
Weight
|
35 kg
|
Accessories Of Shoe Stiffness Tester (Shoe Flexing Tester)
|
Standard
Accessories
|
Toe cap pad
|
1pc
|
|
Angle pad
|
1pc
|
|
Power line
|
1pc
|
