High Frequency Ferrite Core PCB, EPC10 Power Ferrite Core

EPC power ferrite core has small thermal resistance,low attenuation,high power,wide operating frequency,light weight,reasonable structure,easy surface mount,shielding effect is good.



Quick Details

Part Number: EPC Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: Lower loss, High permeability

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: High Frequency Ferrite Core PCB, EPC10 Power Ferrite Core

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: Frequency Switching Power Transformer. Rectifier Transformer. Computers, tele-communication equipment, consumer's electronics, TV, VTR, audio sets. Precision instruments. Program-controlled switch module power supply. Navigation equipments.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.



Product Details

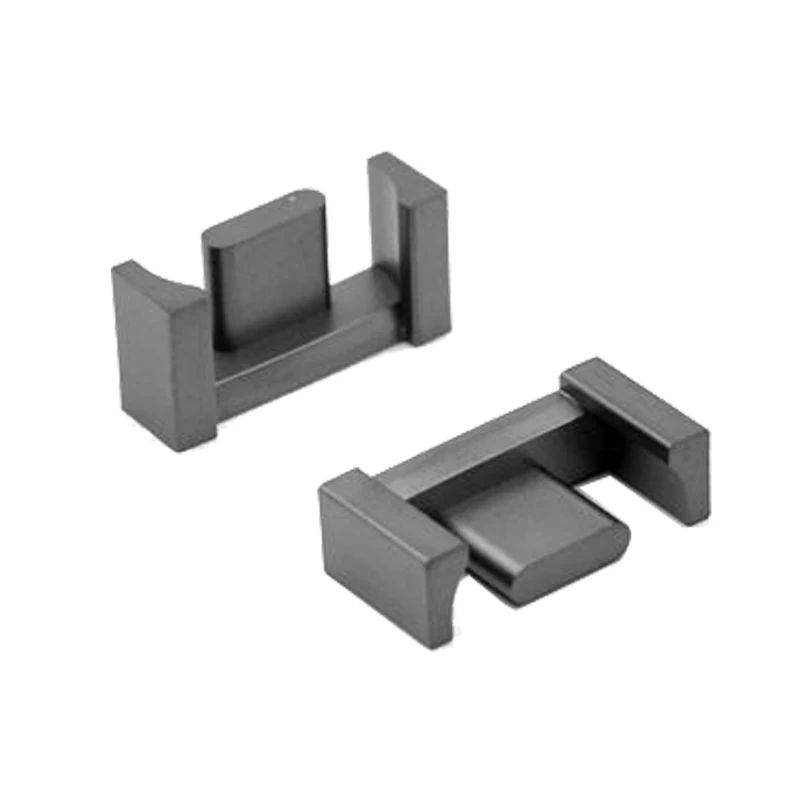

EPC series ferrite core with low coercive force and high permeability

High Quality EPC25 Ferrite Core for Transformer

TYPE

Dimension:mm

Weight:g

A

B mim

C1

C2

D

E min

F

H

EPC10

10.2±0.2

7.6

5.0±0.1

1.9±0.1

4.05±0.1

5.3

0.9±0.1

2.65±0.1

1.2

EPC13

13.0±0.3

10.50

5.6±0.15

2.05±0.1

6.60±0.2

8.3

4.6±0.15

4.50±0.2

2.1

EPC17

17.6±0.38

14.30

7.7±0.15

2.8±0.1

8.55±0.2

11.5

6.0±0.15

6.05±0.15

4.5

EPC19

19.1±0.48

15.80

8.5±0.15

2.5±0.1

9.75±0.2

13.1

6.0±0.15

7.25±0.2

5.3

EPC25

25.1±0.48

20.65

11.5±0.2

4.0±0.1

12.5±0.2

17.1

8.0±0.2

9.0±0.3

13.0

EPC27

27.1±0.48

21.60

13.0±0.3

4.0±0.1

16.0±0.2

18.5

8.0±0.2

12.3±0.3

18.0

EPC30

30.1±0.48

23.60

15.0±0.3

4.0±0.1

17.5±0.2

20.0

8.0±0.2

13.0±0.3

23.0


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

EPC10

1.89

9.39

17.8

167

1000







EPC13

2.16

12.5

30.6

382

870







EPC17

1.76

22.8

40.2

917

1150







EPC19

2.03

22.7

46.1

1047

940







EPC25

1.28

46.4

59.2

2748

1560







EPC27

1.34

54.6

73.1

3995

1540







EPC30

1.32

61.0

81.6

5035

1570
