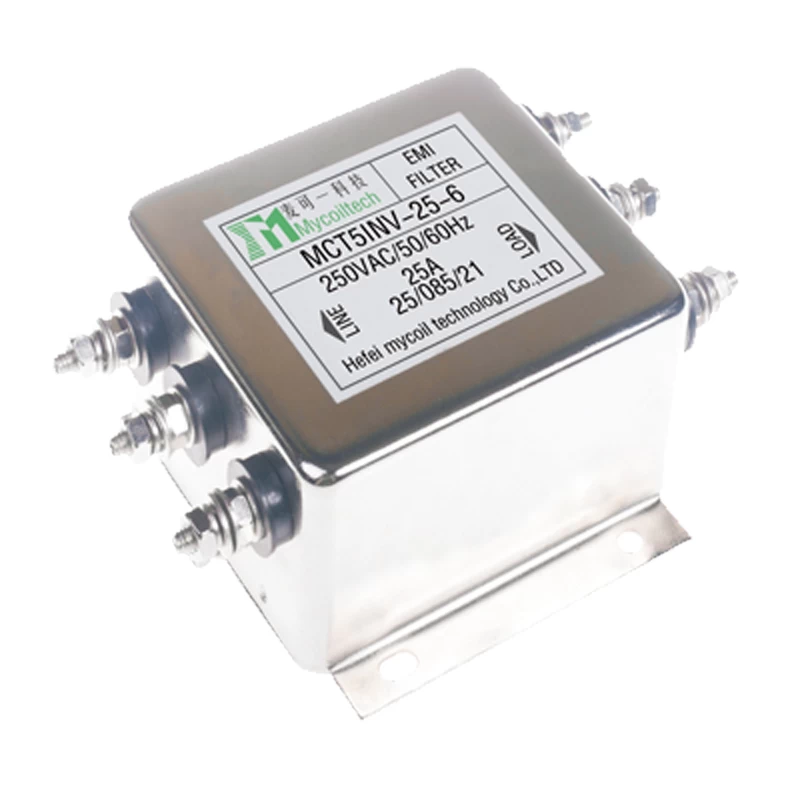

High Performance Single Phase EMI Filter for Speed Motor Device

Single phase EMI filter for converter, has high performance with differential mode choke. (1)Test Voltage ( 1min ): Line to Ground: 2000AC. Line to Line:1450VAC. (2)Leakage current(max): Line to Ground: @250VAC/50Hz (3)Various connection optional: bolt and busbar terminals.



Best selling AC EMI/EMC noise filters, it has high performance and good low frequency attenuation. Our single phase EMI filters are available for inverters, which meet the RFI electromagnetic compatibility of European standard. We can provide samples for the testing, custom design acceptable.


Quick Details

Part No: High Performance Single Phase Filter Series

Brand name: MCT

Rated Voltage: 120/250VAC

Custom made: Available

Rated Current: 6A~25A

Logo: Can be customized

Operating Frequency: 50/60Hz

Packing: Carton, can custom

Temperature range : HPF 25/085/21

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available


Part Information

Product Name: High Performance Single Phase EMI Filter for Speed Motor Device

Product features: (1)High performance with differential mode choke. (2) Good low frequency attenuation. (3)Available for inverters and available for speed motor device.

Applications: Output filter for frequency inverter and converter, UPS, SMPS, three-phase motor drives.

Packing details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Details

Good price single phase with line EMI filtersLow frequency single phase EMI filter 50/60HZ
