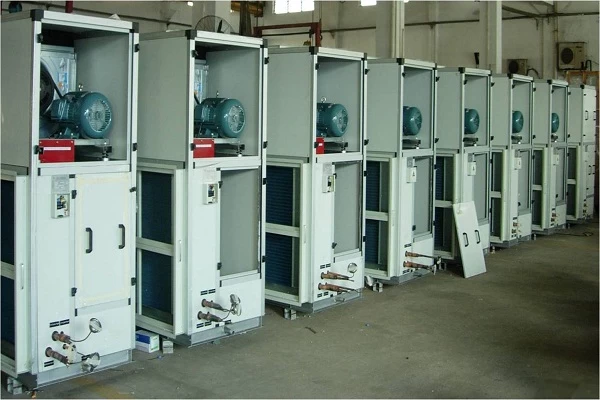

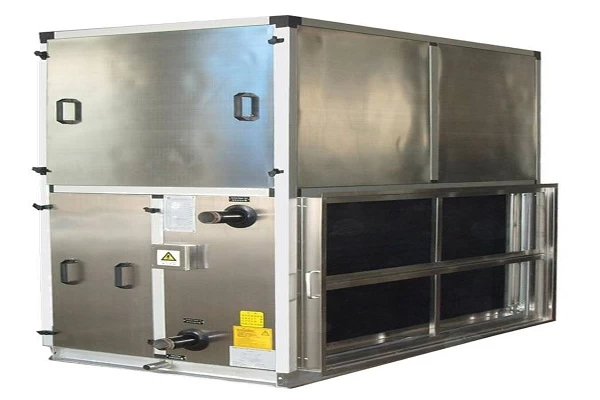

High Quality Vertical Series Air Handing Unit Machine

HStars' Air Handling Unit strength is found in most industrial application upon special design and long time experience.



Air Side Product Featuers:


1.Air Flow: 3000~60000 CMH
2.Quiet Air Condition Comfort Air Delivery AHU
3.25/50mm Double Skin Construction
4.Aluminum Framework
5.Painted Steel, GI, SS Panels
6.Low Height Design
7.Cold Bridge Free Design
8.Air-tightness GB/T14294-93Standard

9.PU Foam Insulation 40-48kg/m3

AHU


Descriptions:


1.Good looking and clean surface, light weight, excellent heat and low noise, high strength.
2.Double 25mm and 50mm Skin Panel, outer plate is made of high quality steel sheet, while inner plate is made of zinc coated steel sheet. In the middle is high pressure foamed hard polyurethane as insulation.
3. Using advance software selection to have coil performance.
4. Filter sections of Aluminum pre-filter, medium filter, bag type filter HC filter are available upon application requirement.
5. High efficiency Aluminum fin copper chilled, Direct Expansion Coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are available.
6. Energy saving Heat Wheel Recovery section are available.
7. Forward, Backward inclined and Aero Foil Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for Fan Assembly Frame is special non defective type for protection of vigorous transportation.
8. Low leakage air dampers for fresh air, return air and exhaust air adjustment.
9. BA control factory installed as option for saving installation time and labor cost.

H.Stars Group
