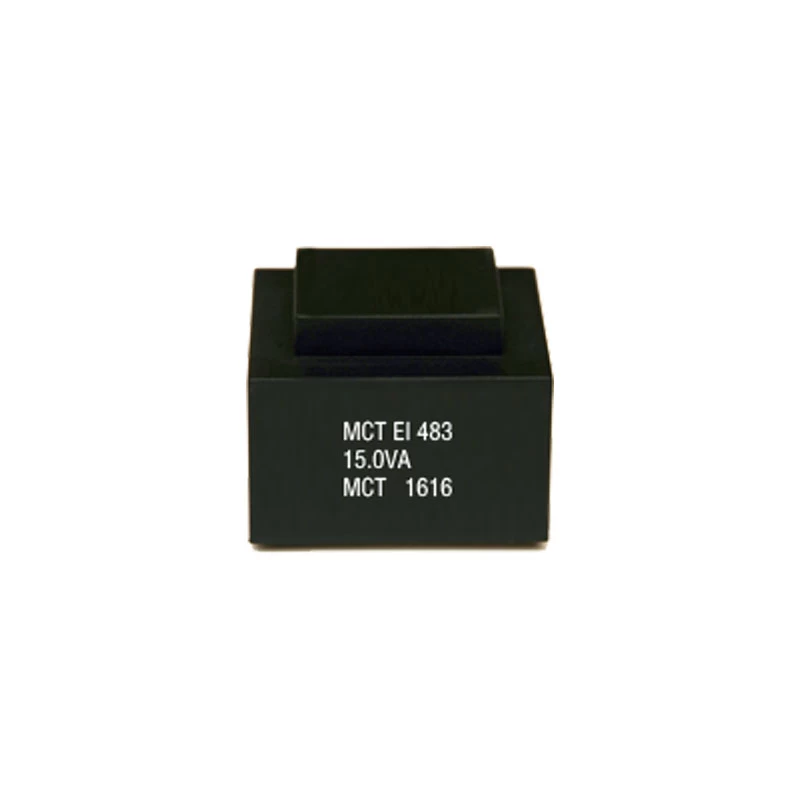

High Voltage Resistance Low Frequency EI48 Electronic Encapsulated Transformer

EI42 PCB mout encapsulated transformer. Standard type cast housing “K” and “0”. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features.  Self-extinguishing cast housing and sealing material. Per item tested quality with certificate.



High voltage resistance EI48 electronic encapsulated transformer has excellent temperature fluctuation resistance properties, high electrical safety and long service-life features. Mainly usd in household appliances, low power industrial control products, instruments and meters and other industries. Customized specifications are accepted.


Quick Details

Part No: EI48 7.0 VA – 15.0 VA

Brand name: MCT

Output Power up to 15.0 VA

Custom made: Available

Temperature class ta70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: High Voltage Resistance Low Frequency EI48 Electronic Encapsulated Transformer

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Specification

High Quality EI48 Encapsulated Switching Power Transformer from MCT

Factory Direct Selling High Quality EI Encapsulated Transformers Best Price Printed Circuit Board EI48 Encapsulated TransformersNew design E48 electronic encapsulated transformer from MCT


Product Part Number

Frame size/Core height

Output Power

Ta 70°C/B

Height(h)

Weight

Packaging unit

MCT EI 480/12.5 mm*

7.0V/A

30.2±0.5mm

0.250kg

27/40pieces**

MCT EI 481/16.8mm

10.0 V/A

34.6±0.5mm

0.300kg

27/40 pieces**

MCT EI 482/20.5mm

12.0V/A

38.5±0.5mm

0.350kg

27/40 pieces**

MCT EI 483/25.5mm

15.0 V/A

43.5±0.5mm

0.450kg

27/40 pieces**

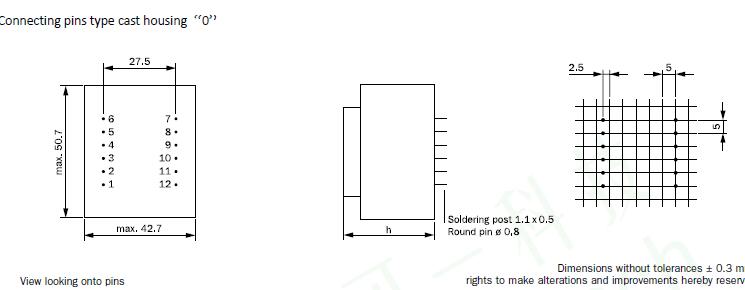

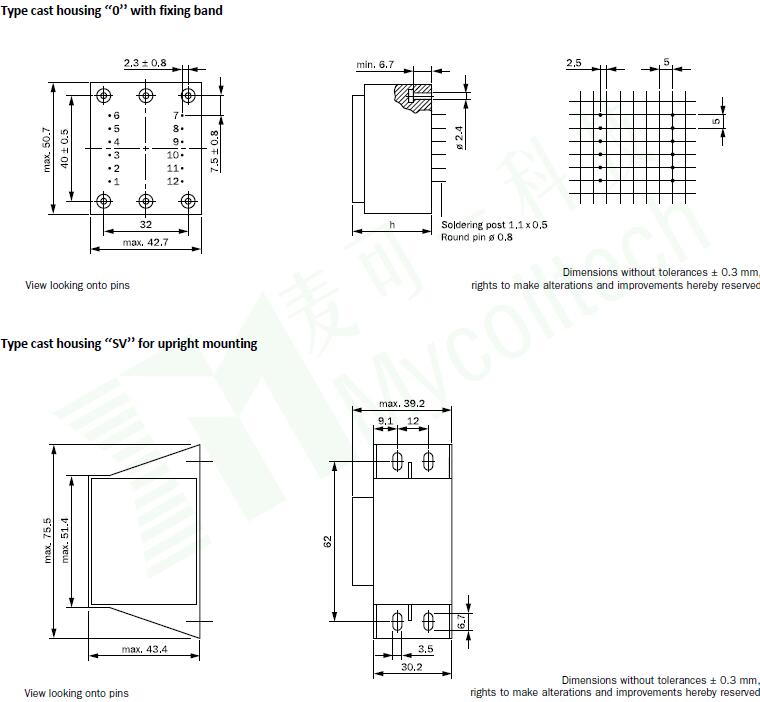

Type cast housing “0”

7.0 VA ta 70 °C. Frame size/Core height:  MCT EI 480 /12.5mm. No short-circuit proof, no load power loss, type.2.3W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

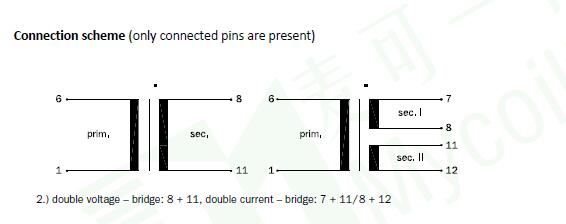

Connection

scheme

MCT EI 480 1385

230

1-6

1×6

1167

8-11

1×7.9

1

MCT EI 480 1386

230

1-6

2×6

583

7-8/11-12

2×7.9

2

MCT EI 480 1387

230

1-6

1×7.5

933

8-11

1×9.8

1

MCT EI 480 1388

230

1-6

2×7.5

467

7-8/11-12

2×9.8

2

MCT EI 480 1389

230

1-6

1×9

788

8-11

1×11.8

1

MCT EI 480 1390

230

1-6

2×9

388

7-8/11-12

2×11.8

2

MCT EI 480 1391

230

1-6

1×12

583

8-11

1×15.8

1

MCT EI 480 1392

230

1-6

2×12

292

7-8/11-12

2×15.8

2

MCT EI 480 1393

230

1-6

1×15

467

8-11

1×19.5

1

MCT EI 480 1394

230

1-6

2×15

233

7-8/11-12

2×19.5

2

MCT EI 480 1395

230

1-6

1×18

389

8-11

1×23.3

1

MCT EI 480 1396

230

1-6

2×18

195

7-8/11-12

2×23.3

2

MCT EI 480 1397

230

1-6

1×21

333

8-11

1×27.5

1

MCT EI 480 1398

230

1-6

1×24

292

8-11

1×31.3

1


Type cast housing “0”

10.0 VA ta 70 °C. Frame size/Core height:  MCT EI 481 /16.8mm. No short-circuit proof, no load power loss, type.2.0W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 481 1325

230

1-6

1×6

1167

8-11

1×7.6

1

MCT EI 481 1305

230

1-6

2×6

833

7-8/11-12

2×7.6

2

MCT EI 481 1312

230

1-6

1×7.5

1333

8-11

1×9.8

1

MCT EI 481 1326

230

1-6

2×7.5

667

7-8/11-12

2×9.8

2

MCT EI 481 1291

230

1-6

1×9

1111

8-11

1×11.5

1

MCT EI 481 1271

230

1-6

2×9

556

7-8/11-12

2×11.5

2

MCT EI 481 1295

230

1-6

1×12

834

8-11

1×15.5

1

MCT EI 481 1327

230

1-6

2×12

417

7-8/11-12

2×15.3

2

MCT EI 481 1323

230

1-6

1×15

667

8-11

1×18.6

1

MCT EI 481 1324

230

1-6

2×15

333

7-8/11-12

2×18.6

2

MCT EI 481 1307

230

1-6

1×18

556

8-11

1×22.3

1

MCT EI 481 1328

230

1-6

2×18

278

7-8/11-12

2×22.3

2

MCT EI 481 1381

230

1-6

1×21

477

8-11

1×25.1

1

MCT EI 481 1329

230

1-6

1×24

417

8-11

1×28.7

1


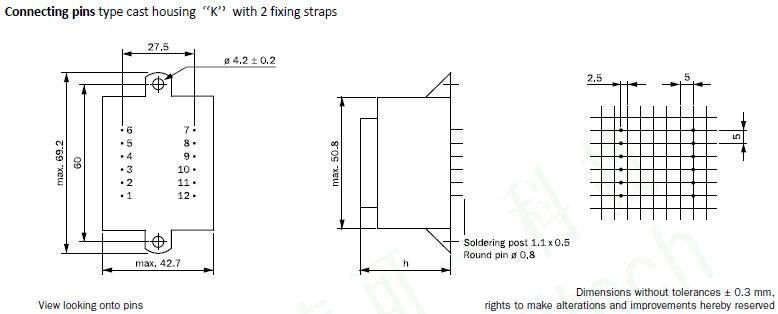

Type cast housing “k”

10.0 VA ta 70 °C. Frame size/Core height:  MCT EI 481 /16.8mm. No short-circuit proof, no load power loss, type.2.0W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 481 1142

230

1-6

1×6

1167

8-11

1×7.6

1

MCT EI 481 1134

230

1-6

2×6

833

7-8/11-12

2×7.6

2

MCT EI 481 1182

230

1-6

1×7.5

1333

8-11

1×9.8

1

MCT EI 481 1188

230

1-6

2×7.5

667

7-8/11-12

2×9.8

2

MCT EI 481 1167

230

1-6

1×9

1111

8-11

1×11.5

1

MCT EI 481 1118

230

1-6

2×9

556

7-8/11-12

2×11.5

2

MCT EI 481 1172

230

1-6

1×12

834

8-11

1×15.5

1

MCT EI 481 1119

230

1-6

2×12

417

7-8/11-12

2×15.3

2

MCT EI 481 1184

230

1-6

1×15

667

8-11

1×18.6

1

MCT EI 481 1120

230

1-6

2×15

333

7-8/11-12

2×18.6

2

MCT EI 481 1185

230

1-6

1×18

556

8-11

1×22.3

1

MCT EI 481 1192

230

1-6

2×18

278

7-8/11-12

2×22.3

2

MCT EI 481 1273

230

1-6

1×21

477

8-11

1×25.1

1

MCT EI 481 1186

230

1-6

1×24

417

8-11

1×28.7

1


Type cast housing “k”

12.0 VA ta 70 °C. Frame size/Core height:  MCT EI 482 /20.5mm. No short-circuit proof, no load power loss, type.1.8W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 482 1231

230

1-6

1×6

2000

8-11

1×8.3

1

MCT EI 482 1232

230

1-6

2×6

1000

7-8/11-12

2×8.3

2

MCT EI 482 1233

230

1-6

1×7.5

1600

8-11

1×10.6

1

MCT EI 482 1236

230

1-6

2×7.5

800

7-8/11-12

2×10.6

2

MCT EI 482 1237

230

1-6

1×9

1333

8-11

1×12.4

1

MCT EI 482 1238

230

1-6

2×9

667

7-8/11-12

2×12.4

2

MCT EI 482 1239

230

1-6

1×12

1000

8-11

1×16.3

1

MCT EI 482 1240

230

1-6

2×12

500

7-8/11-12

2×16.3

2

MCT EI 482 1241

230

1-6

1×15

800

8-11

1×19.9

1

MCT EI 482 1242

230

1-6

2×15

400

7-8/11-12

2×19.9

2

MCT EI 482 1243

230

1-6

1×18

667

8-11

1×23.5

1

MCT EI 482 1234

230

1-6

2×18

333

7-8/11-12

2×23.5

2

MCT EI 482 1382

230

1-6

1×21

572

8-11

1×26.1

1

MCT EI 482 1244

230

1-6

1×24

500

8-11

1×30.3

1


Type cast housing “k”

15.0 VA ta 70 °C. Frame size/Core height:  MCT EI 483 /25.5mm. No short-circuit proof, no load power loss, type.2.5W

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT EI 483 1260

230

1-6

1×6

2500

8-11

1×7.8

1

MCT EI 483 1257

230

1-6

2×6

1250

7-8/11-12

2×7.8

2

MCT EI 483 1258

230

1-6

1×7.5

2000

8-11

1×9.5

1

MCT EI 483 1245

230

1-6

2×7.5

1000

7-8/11-12

2×9.5

2

MCT EI 483 1246

230

1-6

1×9

1667

8-11

1×12.0

1

MCT EI 483 1247

230

1-6

2×9

833

7-8/11-12

2×12.0

2

MCT EI 483 1248

230

1-6

1×12

1250

8-11

1×15.9

1

MCT EI 483 1249

230

1-6

2×12

625

7-8/11-12

2×15.9

2

MCT EI 483 1250

230

1-6

1×15

1000

8-11

1×19.1

1

MCT EI 483 1251

230

1-6

2×15

500

7-8/11-12

2×19.1

2

MCT EI 483 1252

230

1-6

1×18

833

8-11

1×22.8

1

MCT EI 483 1259

230

1-6

2×18

417

7-8/11-12

2×22.8

2

MCT EI 483 1302

230

1-6

1×21

714

8-11

1×26.0

1

MCT EI 483 1253

230

1-6

1×24

625

8-11

1×30.6

1
